Description

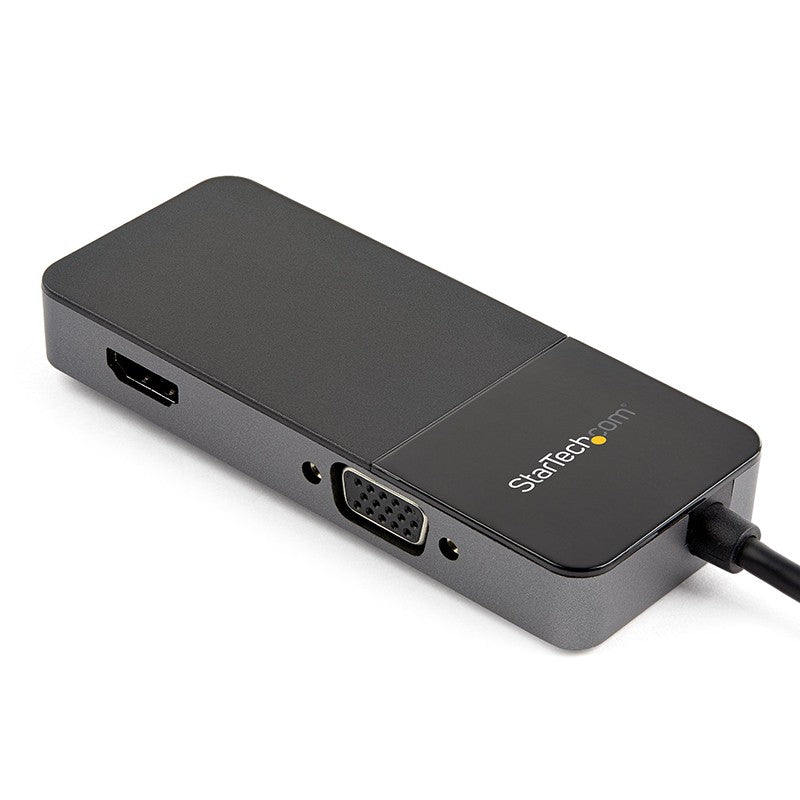

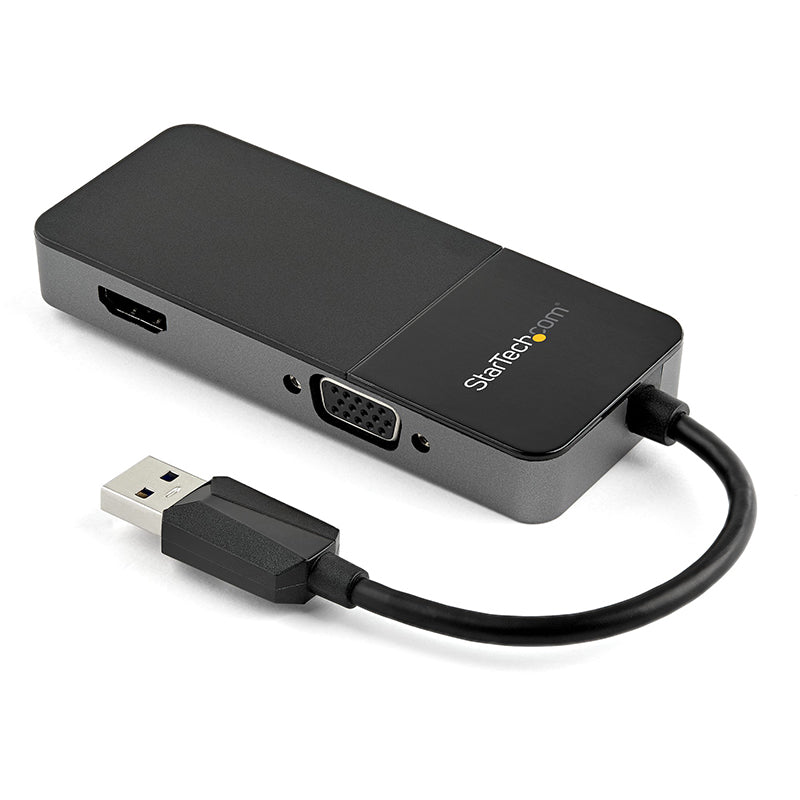

Startech USB 3.0 to HDMI and VGA Multi Display Adapter
DUAL-MONITOR ADAPTER: USB-A 3.0 (5Gbps) to HDMI & VGA external video adapter converter adds up to two additional displays; Supports HDMI 4K 30Hz (3840x2160) with 2ch audio & VGA 1080p (1920x1080) 60Hz
CONVENIENT: External graphics card delivers easy & universal way to connect a single display, projector or HDTV, or add additional monitors to nearly any desktop/laptop w/ a USB 3.0 (USB Type-A) port
HOST COMPATIBILITY: Expand your existing workspace productivity with a multiple screen workstation at home or in the office; works w/ USB-A computers incl Lenovo, Dell, HP, Microsoft Surface & MacBook
SPECIFICATIONS:
Connector(s) |
1 - Connector A |
USB Type-A (9 pin) USB 3.0 (5 Gbps) |
1 - Connector B |
VGA (14 pin, High Density D-Sub) |
|
HDMI |
||
Environmental |
Operating Temperature |
-10°C to 55°C (14°F to 131°F) |
Storage Temperature |
-25°C to 75°C (32°F to 167°F) |
|
Humidity |
0~95% RH Non-condensing |
|
Hardware |
Active or Passive Adapter |
Active |
AV Input |
USB 3.0 |
|
Active or Passive Adapter |
Passive |
|
AV Output |
HDMI |
|
VGA |
||
Audio |
Yes |
|
Industry Standards |
USB 3.0 Compliant |
|
Chipset ID |
Silicon Motion - SM768 |
|
Packaging Information |
Package Height |
1.2 in [30 mm] |
Package Length |
6.7 in [1.7 cm] |
|
Shipping (Package) Weight |
4.0 oz [112 g] |
|
Package Width |
5.7 in [1.4 cm] |
|
Performance |
Video Revision |
HDMI 1.4 |
Supported Resolutions |
HDMI: 3840x2160 (4K) 30Hz |
|
VGA: 1920x1080 60Hz | ||
Lower resolutions and refresh rates may also be supported | ||
Wide Screen Supported |
Yes |
|
Audio Specifications |
HDMI - 7.1 Channel Audio |
|
VGA - No Audio Support |
||
Physical Characteristics |
Color |
Black & Silver |
Product Height |
0.6 in [14 mm] |
|
Product Length |
10.6 in [2.7 cm] |
|
Weight of Product |
1.9 oz [54 g] |
|
Product Width |
1.7 in [43 mm] |
|
Material |
Plastic |
|
Cable Length |
4.3 in [1.1 cm] |
