Description
SPECIFICATIONS:
CONNECTOR(S) |
|
Connector Type(s) |

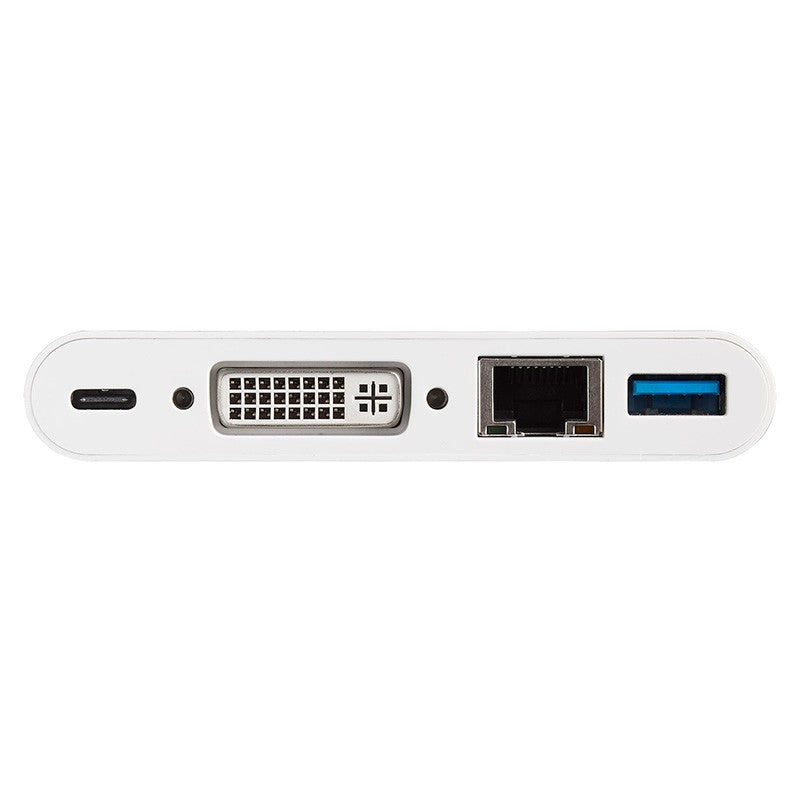

1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) 1 - DVI-I (29 pin) 1 - RJ-45 1 - USB Type-A (9 pin, 5 Gbps) 1 - USB Type-C (24 pin) USB Power Delivery only |
ENVIRONMENTAL |
|
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
Humidity |
10%-85%RH |
HARDWARE |
|
4K Support |
Yes |
Fast-Charge Port(s) |
No |
Displays Supported |
1 |
Audio |
Yes |
Bus Type |
USB-C |
Industry Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
Chipset ID |
VIA/VLI - VL813 VIA/VLI - VL100 Parade - PS171 Realtek - RTL8153 |
PACKAGING INFORMATION |
|
Shipping (Package) Weight |
135.0 g [4.8 oz] |
Package Length |
14.2 cm [5.6 in] |
Package Width |
17.0 cm [6.7 in] |
Package Height |
3.0 cm [1.2 in] |
PERFORMANCE |
|
Maximum Data Transfer Rate |
1920 × 1200 - 60 Hz (DVI) |
Maximum Digital Resolutions |
1920 × 1200 - 60 Hz (DVI) |
Type and Rate |
USB 3.0 - 5 Gbit/s |
UASP Support |
Yes |
Compatible Networks |
10/100/1000 Mbps |
Auto MDIX |
Yes |
Full Duplex Support |
Yes |
PHYSICAL CHARACTERISTICS |
|
Colour |
White |
Cable Length |
140 mm [5.5 in] |
Product Length |
9.4 cm [3.7 in] |
Product Width |
16.0 cm [6.3 in] |
Product Height |
1.7 cm [0.7 in] |
Weight of Product |
127.0 g [4.5 oz] |
POWER |
|
Power Source |
USB-Powered |
Power Delivery |
60W |
SOFTWARE |
|
OS Compatibility |
Windows® 7, 8.1, 10, 11 macOS 10.11 to 10.15, 11.0, 12.0 Chrome OS™ |
SPECIAL NOTES / REQUIREMENTS |
|
System and Cable Requirements |
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode) Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter) |
Note |
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode. The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop. USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. |
WHAT'S IN THE BOX |
|
Included in Package |
1 - multiport adapter 1 - instruction manual |
