Description
SPECIFICATIONS:

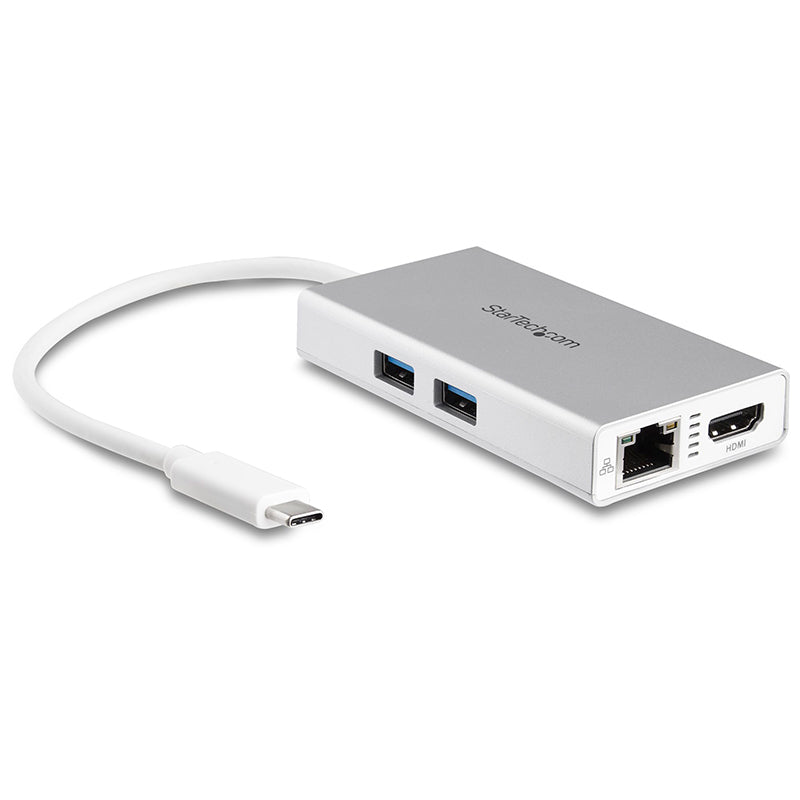

Connector(s) |
|
1 - Connector Type(s) |
USB Type-C (24 pin) USB 3.0 (5Gbps) HDMI (19 pin) RJ-45 USB Type-C (24 pin) USB 3.0 (5Gbps) |
2 - Connector Type(s) |
USB Type-A (9 pin) USB 3.0 (5 Gbps) |
Environmental |
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
Storage Temperature |
-10°C to 65°C (14°F to 149°F) |
Humidity |
0~85% RH (Non-condensing) |
Hardware |
|
4K Support |
Yes |
Fast-Charge Port(s) |
No |
Displays Supported |
1 |
Bus Type |
USB-C |
Industry Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Chipset ID |
VIA/VLI - VL813 |
Performance |
|
Maximum Data Transfer Rate |
5 Gbps (USB 3.0) |
Maximum Digital Resolutions |
4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz |
Type and Rate |
USB 3.0 - 5 Gbit/s |
UASP Support |
Yes |
Compatible Networks |
10/100/1000 Mbps |
Auto MDIX |
Yes |
Full Duplex Support |
Yes |
Physical Characteristics |
|
Colour |
Silver & White |
Material |
Plastic |
Cable Length |
9.8 in [25 cm] |
Product Length |
3.8 in [96 mm] |
Product Width |
2.0 in [51 mm] |
Product Height |
0.6 in [16 mm] |
Weight of Product |
2.3 oz [64 g] |
Package Height |
1.7 in [42 mm] |
Package Length |
8.4 in [21.3 cm] |
Shipping (Package) Weight |
6.8 oz [193 g] |
Package Width |
5.8 in [14.7 cm] |
Power |
|
Power Source |
USB-Powered |

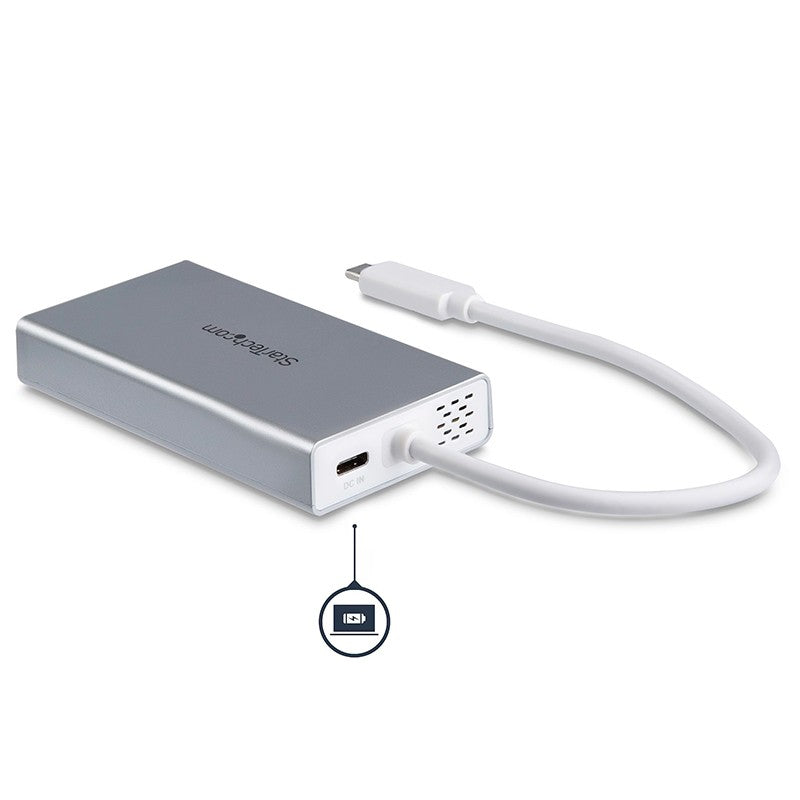

Power Delivery |
60W |
Software |
|
OS Compatibility |
Windows® 7, 8, 8.1, 10 |
Special Notes / Requirements |
|
System and Cable Requirements |
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode) Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter) |
Note |
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode. The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop. A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K) USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware. |
