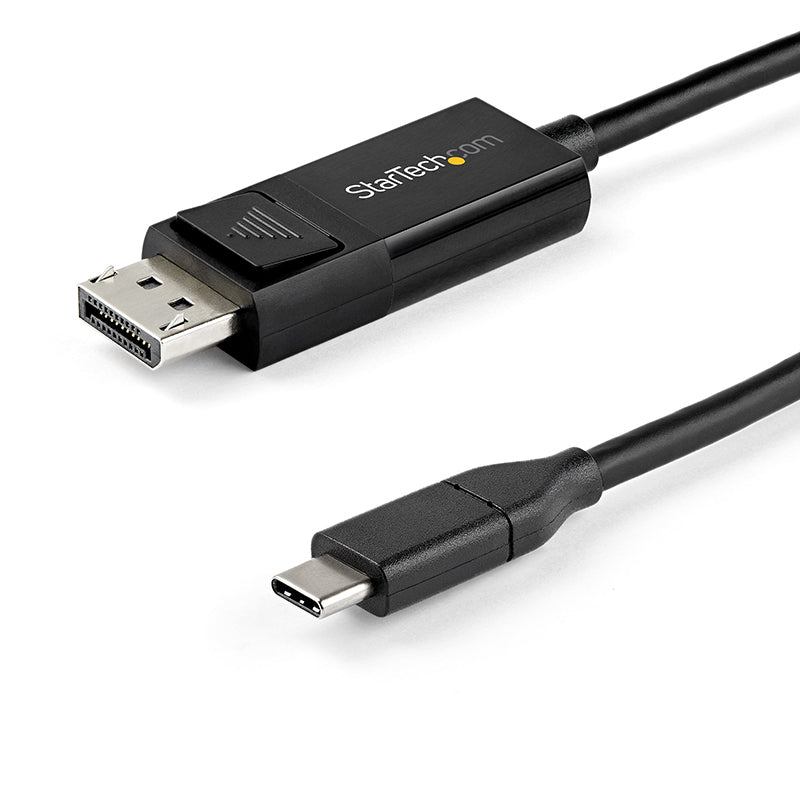

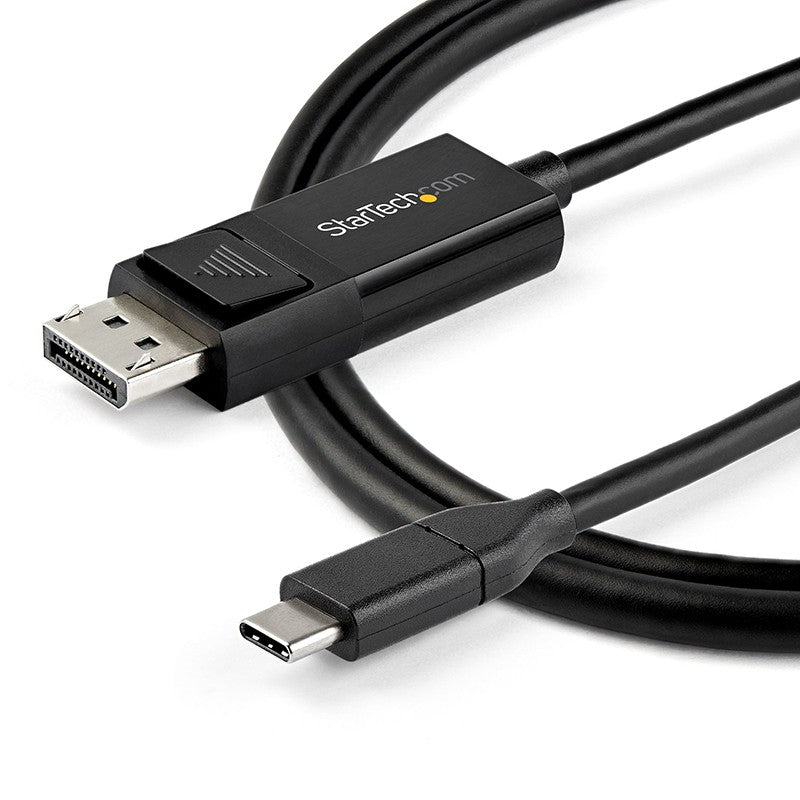

Startech USB Type C to DisplayPort 1.4 Cable - Bidirectional
HIGH PERFORMANCE: Reversible USB-C to DisplayPort 1.4 cable or DP to USB-C cable supports 8K 60Hz/4K 120Hz/HDR/DisplayHDR/ HBR3/Display Stream Compression (DSC)/HDCP 2.2/1.4 | Thunderbolt 3 compatible
REVERSIBLE CABLE: This 6.6ft/2m DisplayPort to USB-C bidirectional cable works either way to connect your USB-C Laptop to a DisplayPort Monitor or connect a DisplayPort device to a USB Type-C display
DP OR USB-C DP ALT MODE HOST COMPATIBLE: USB-C video cable for Dell XPS/Precision/Latitude, Lenovo ThinkPad X1 Carbon/Extreme, Surface Laptop 3/Pro, TB3 MacBook Pro/Air, HP EliteBook/Spectre/ZBook
SPECIFICATIONS:
Connector A |
1 - USB-C (24 pin) DisplayPort Alt Mode 1 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps) |
Connector B |
1 - DisplayPort (20 pin) |
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
Humidity |
10%-85% RH |
Active or Passive Adapter |
Active |
AV Input |
USB-C DisplayPort - 1.4 |
AV Output |
DisplayPort USB-C |
Audio |
Yes |
Chipset ID |
Chrontel - CH7213C-BF Texas Instruments - TUSB544 VIA Labs - VL170 |
Package Height |
1.0 in [2.5 cm] |
Package Length |
8.9 in [22.5 cm] |
Shipping (Package) Weight |
3.0 oz [85 g] |
Package Width |
4.9 in [12.5 cm] |
Package Quantity |
1 |
Video Revision |
DisplayPort 1.4 |
Maximum Digital Resolutions |
DisplayPort: 7680x4320 (8K) / 60Hz USB-C: 7680x4320 (8K) / 60Hz |
Wide Screen Supported |
Yes |
Bandwidth |
HBR3 |
Colour |
Black |
Product Height |
0.4 in [1 cm] |
Product Length |
78.7 in [200.0 cm] |
Weight of Product |
2.8 oz [79 g] |
Product Width |
0.8 in [2 cm] |
Material |
Plastic |
System and Cable Requirements |
Your USB-C device must support DisplayPort Alt Mode to work with this cable To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4 This cable is not compatible with the Surface Dock 2 |
Included in Package |
1 - 2 m USB-C to DisplayPort 1.4 Bi-Directional Adapter Cable |
