Description
SPECIFICATIONS:
CONNECTOR(S) |
|
Connector Type(s) |

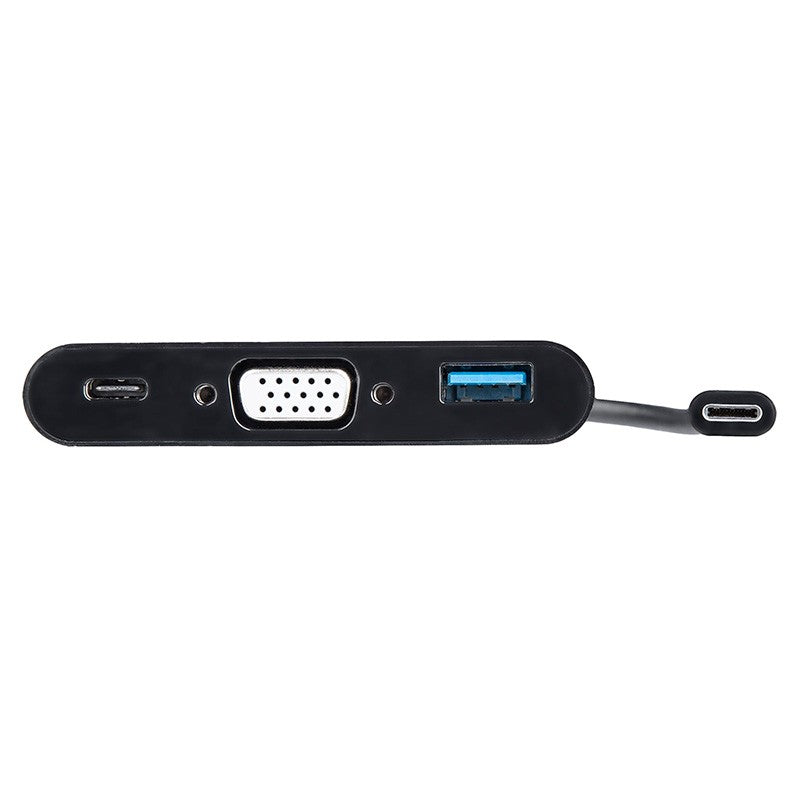

1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) 1 - VGA (15 pin, High Density D-Sub) 1 - USB Type-A (9 pin, 5 Gbps) 1 - USB Type-C (24 pin) USB Power Delivery only |
Connector A |
1 - USB-C (24 pin) DisplayPort Alt Mode |
Connector B |
1 - VGA (15 pin, High Density D-Sub) 1 - USB Type-A (9 pin, 5 Gbps) 1 - USB Type-C (24 pin) USB Power Delivery only |
ENVIRONMENTAL |
|
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
Humidity |
5~90% RH (Non-condensing) |
HARDWARE |
|
4K Support |
No |
Fast-Charge Port(s) |
No |
Displays Supported |
1 |
Bus Type |
USB-C |
Industry Standards |
USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
Chipset ID |
VIA/VLI - VL100 VIA/VLI - VL210 NXP - PTN3355 |
PACKAGING INFORMATION |
|
Package Height |
34 mm [1.3 in] |
Package Length |
17.1 cm [6.7 in] |
Shipping (Package) Weight |
109 g [3.8 oz] |
Package Width |
14.5 cm [5.7 in] |
PERFORMANCE |
|
Maximum Data Transfer Rate |
5 Gbps (USB 3.0) |
Maximum Analog Resolutions |
2048 x 1280p @ 60Hz Lower resolutions are also supported. |
Type and Rate |
USB 3.0 - 5 Gbit/s |
UASP Support |
Yes |
PHYSICAL CHARACTERISTICS |
|
Weight of Product |
39 g [1.4 oz] |
Colour |
Black |
Material |
Plastic |
Cable Length |
140 mm [5.5 in] |
Product Length |
80 mm [3.1 in] |
Product Width |
40 mm [1.6 in] |
Product Height |
1.5 cm [0.6 in] |
POWER |
|
Power Source |
USB-Powered |
Power Delivery |
60W |
SPECIAL NOTES / REQUIREMENTS |
|
System and Cable Requirements |
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode). The multifunction adapter does not include a USB-C power adapter. Optional: the multifunction adapter can be used with a separate USB-C power adapter (for example, your laptop’s USB-C based power adapter). |
Note |
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode. The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop. USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. |
WHAT'S IN THE BOX |
|
Included in Package |

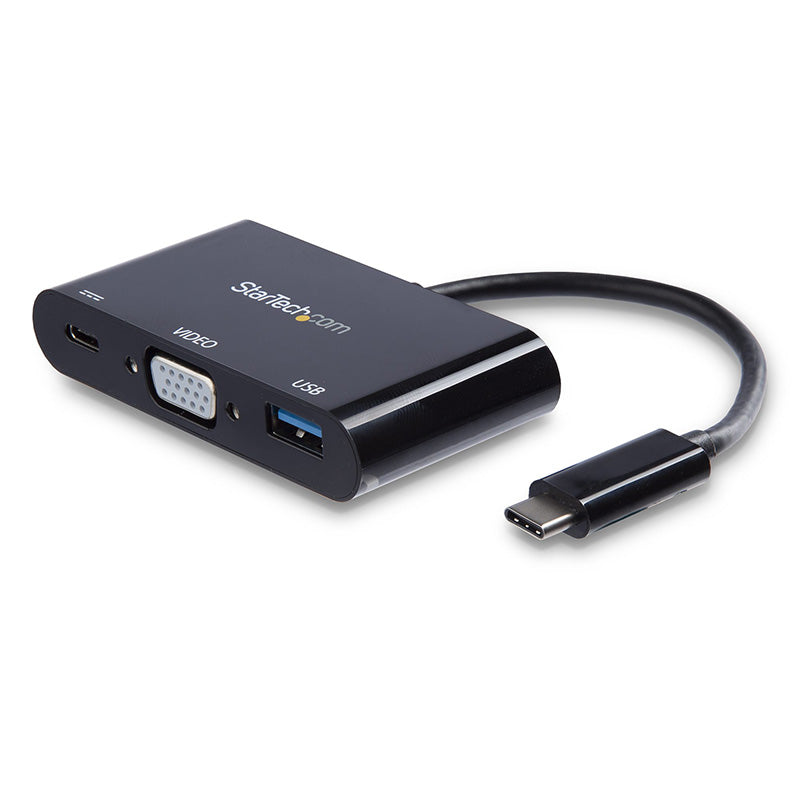

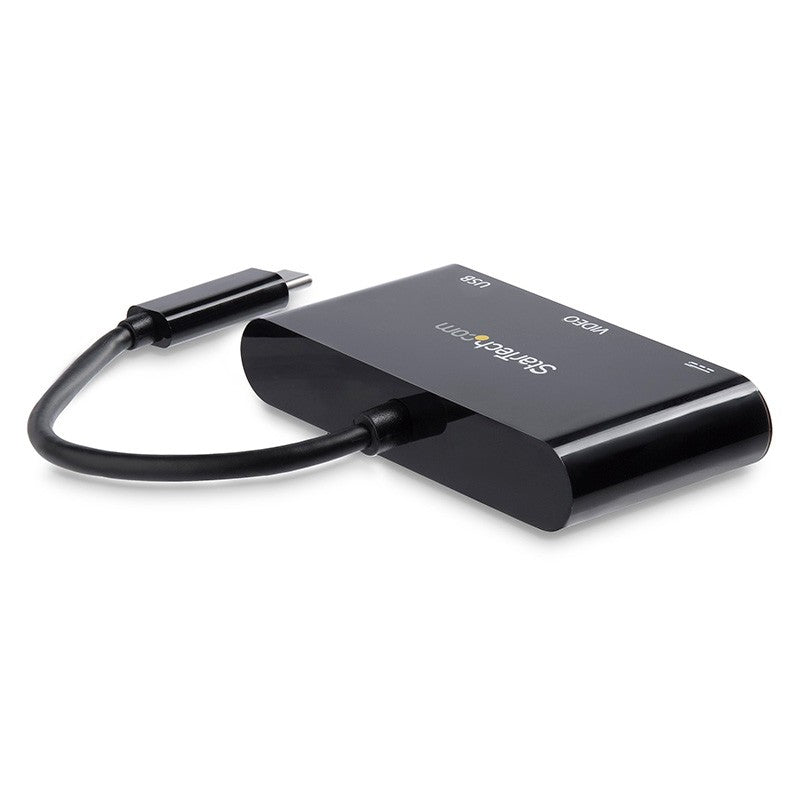

1 - USB-C to VGA multifunction adapter |
