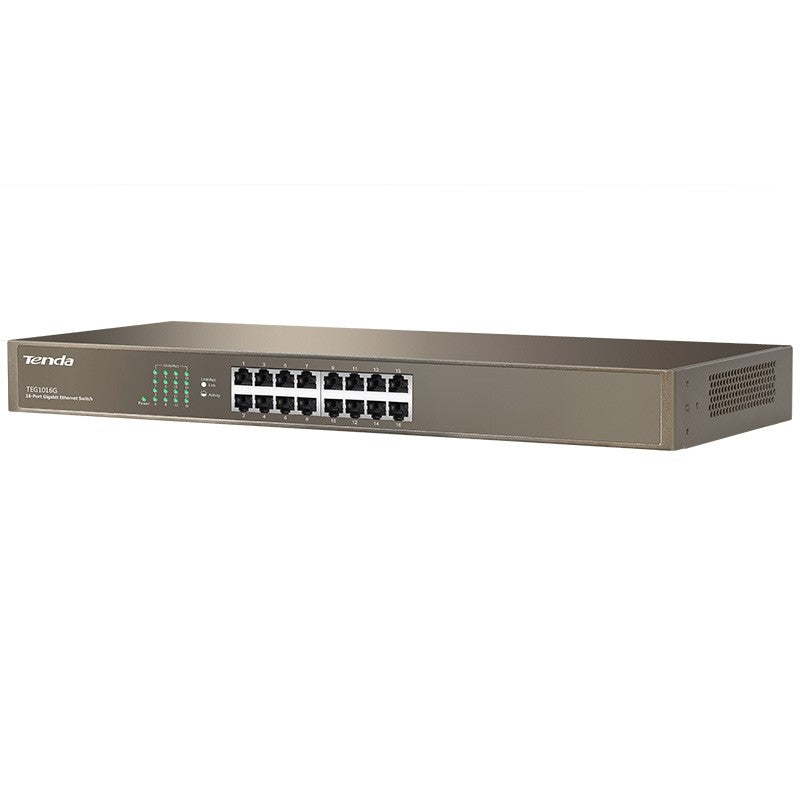

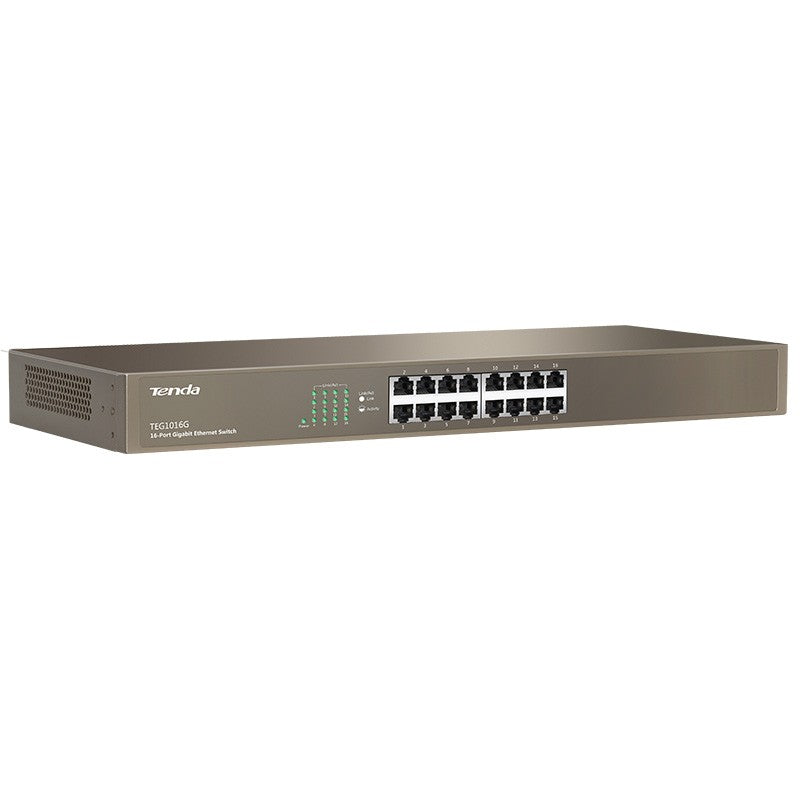

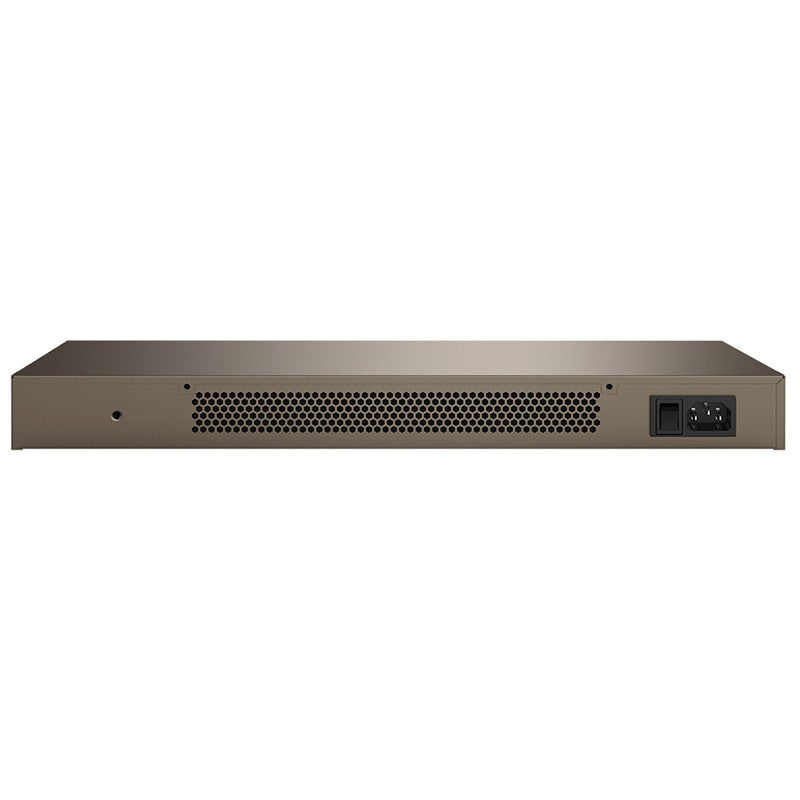

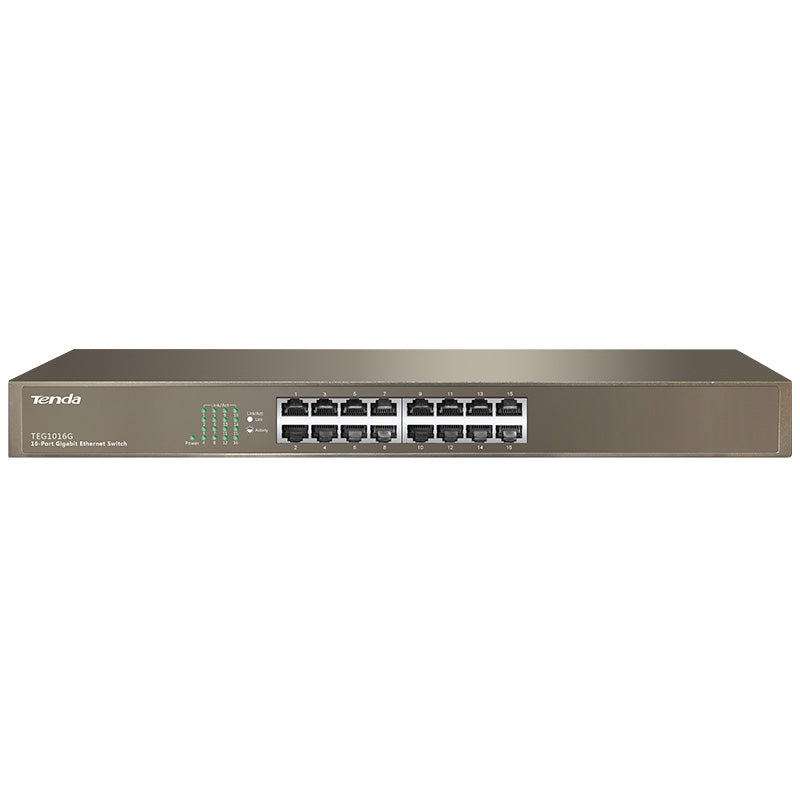

Tenda 16-port Gigabit 19in Rack Mountable Gigabit Switch V 8.0

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

Interface

16*10/100/1000M auto-negotiation RJ45 ports (Auto MDI/MDIX)

Transmission Media

10Base-T: Cat. 3 UTP or better
100Base-TX: Cat.5 UTP or better
1000Base-T: Cat.5e UTP or better

Forwarding Speed

10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps

Power Supply

Input: AC:100-240V; 50/60Hz

6kV in Common Mode Protection for all ports

6kV in Common Mode, 4kV in Differential mode Protection for power supply

Product Dimensions (LxWxH)

440mm *179mm *44mm

LEDs

1* Power, 16* Link/Act

Switching Capacity

32Gbps

MAC Adress Table

8K

Power Consumption

Maximum : 12W (220V)

SOFTWARE

Transfer Method

Store and Forward

Access Control

CDMA/CD

MAC Address Learning

Automatic update

OTHERS

Temperature

Operating Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Humidity

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certification

CE , FCC , RoHS

Compatible OS

Windows 8 32/64 bit, Windows 7 32/64 bit, Windows xp 32/64 bit, Linux , MAC OS

Package Contents

16-Port Gigabit Ethernet Switch

Power cord

User Guide
