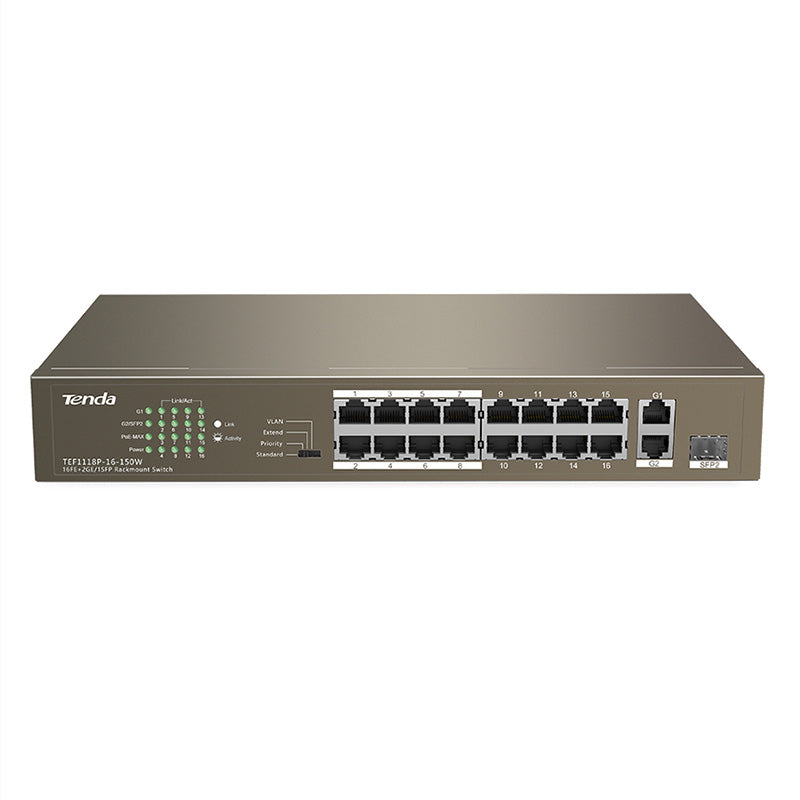

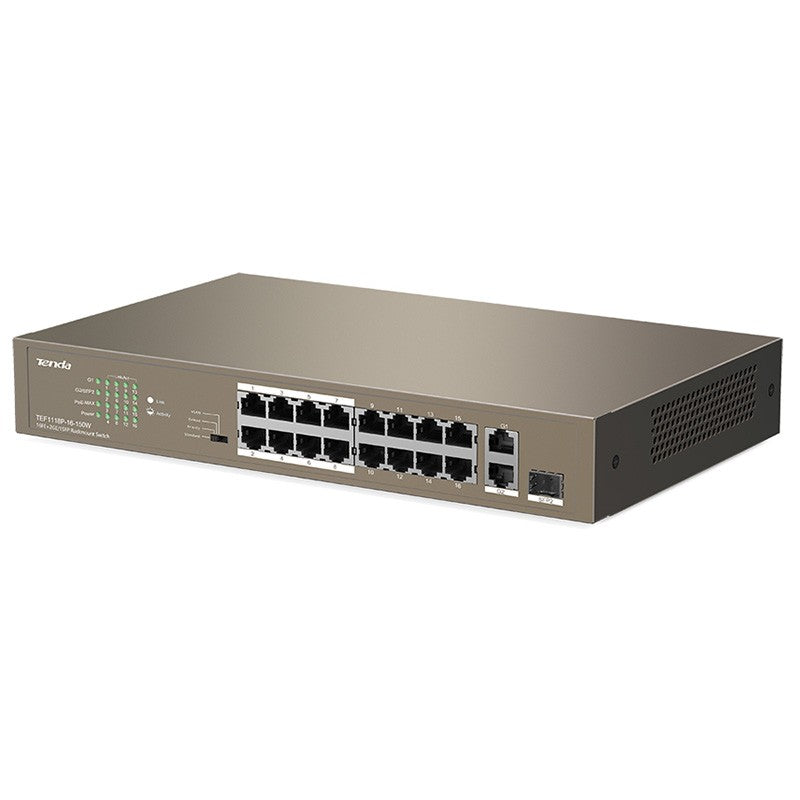

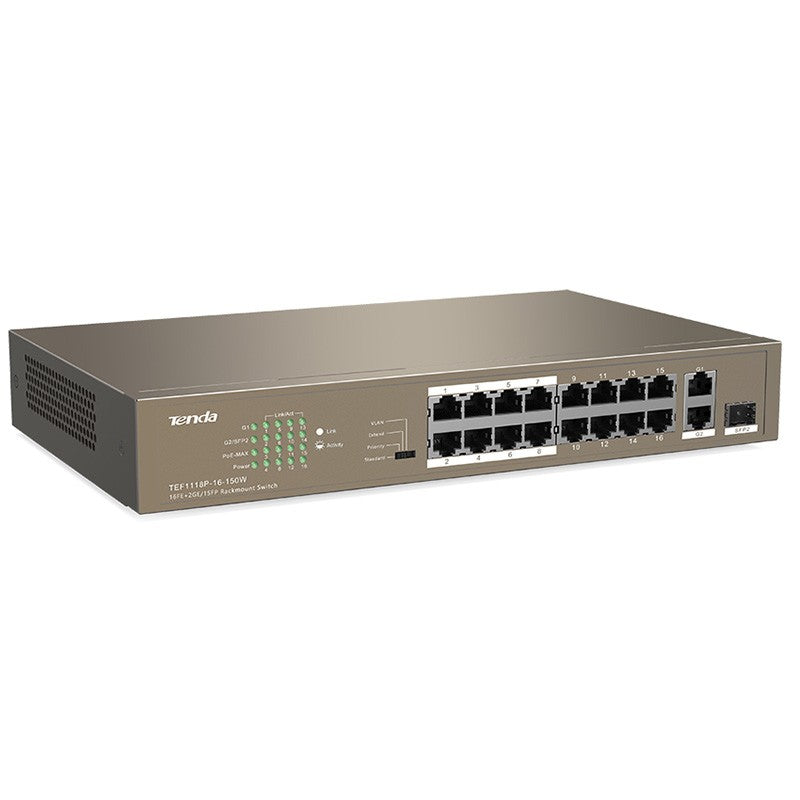

Tenda 16FE+2GE/1SFP Port Gigabit Unmanaged Switch with 16 Port PoE

LED Indicator

16 * Link/Act LEDs

1 * G1 LED

1 * G2/SFP2 LED

1 * PoE-MAX LED

1 * Power LED

Interfaces

16 * 10/100 Base-TX Ethernet ports (Data/Power)

2 * 10/100/1000 Base-T Ethernet ports (Data)

1 * 1000 Base-X SFP port (Combo)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

294.0mmx178.8mmx44.0mm

Level of protection

Lightning protection for ports: 6kV

Lightning protection for power: 6kV

ESD:

Air discharge: ±10kV

Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

7.2 Gbps

Packet forwarding rate

5.36 Mpps

Buffer

1.25Mb

MAC address table

4K

Jombo frame

N/A

PoE budget

Single port: AF: 15.4W, AT: 30W

Whole device: 130W

Power consumption

/

Input voltage

100-240V AC 50/60Hz

Mounting

Desktop mounting: support

Wall mounting: support

Rack mounting : support

Environment

Operating Temperature: 0℃~45℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS
