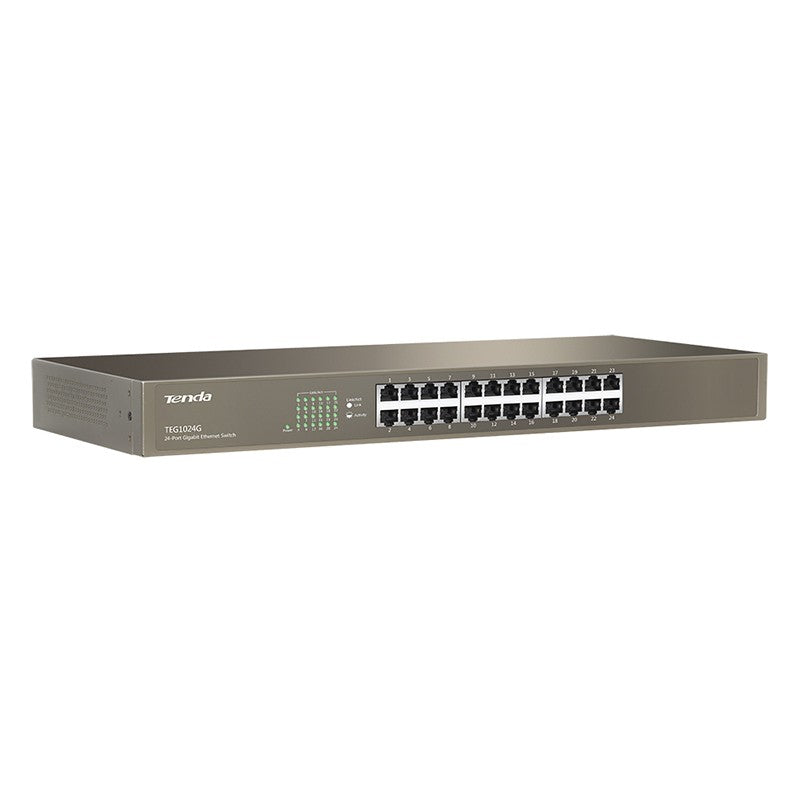

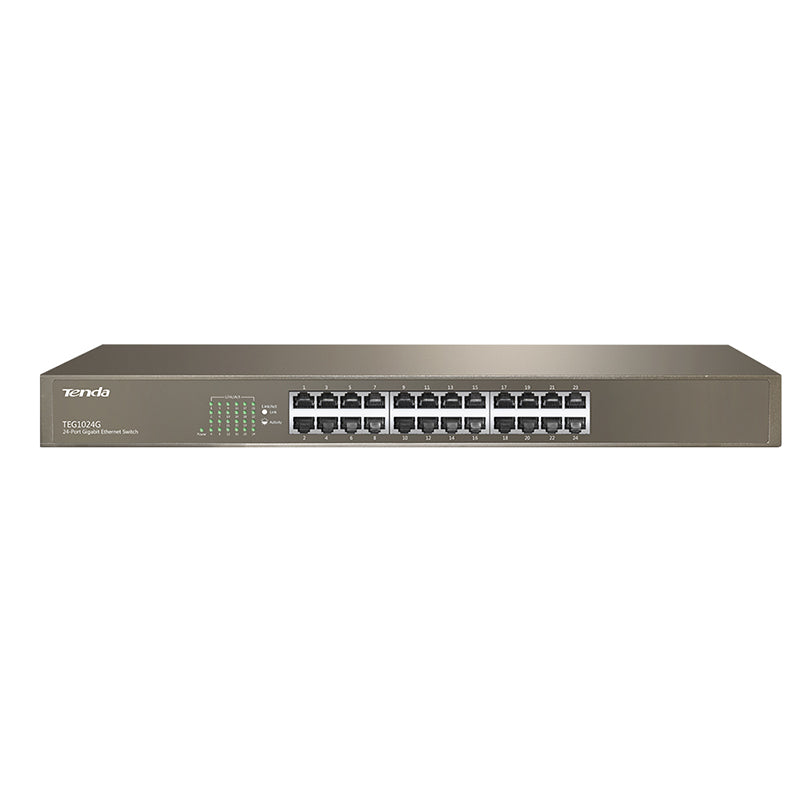

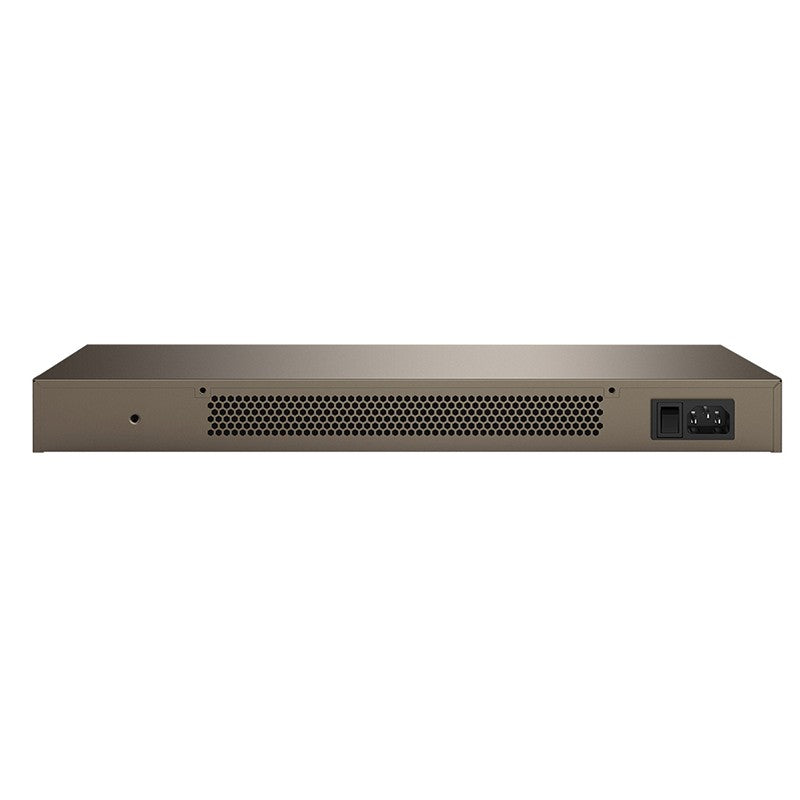

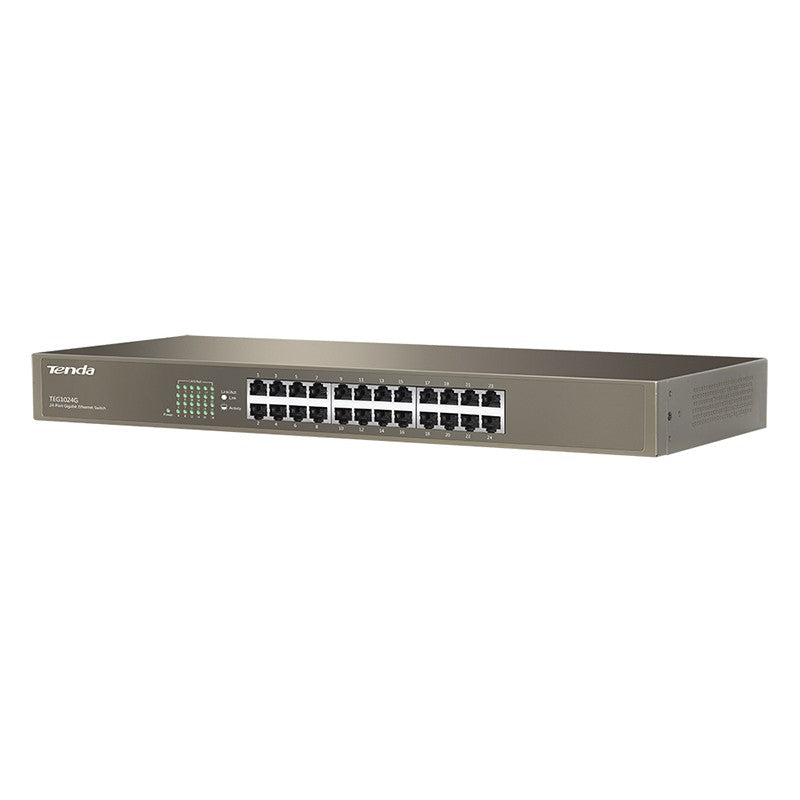

Tenda 24-port Gigabit Rachmount Switch

Network standards

IEEE 802.3, IEEE   802.3u, IEEE 802.3x, IEEE 802.3ab

LED Indicator

1* Power,24* Link/Act

Interfaces

24*10/100/1000 Base-T   Ethernet ports (Auto MDI/MDIX)

Transmission media

Recommended: CAT5/5e   UTP or better

Fan quantity

N/A

Dimension

440.0mmx178.0mmx44.0mm

Material

Metal

Level of protection

Lightning protection   for uplink ports: 6KV
  Lightning protection for power: 6KV
  ESD:
  Air discharge: ±10kV
  Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

48Gbps

Packet forwarding rate

35.60Mpps

Buffer

2Mb

MAC address table

8K

Jumbo frame

N/A

Power

Input: 100-240V AC   50/60Hz

Power consumption

Max:<13W

Mounting

Desktop mounting:   support
  Wall mounting: support
  Rack mounting : support

Environment

Operating temperature:   0°C - 45℃
  Storage temperature: -40°C - 70°C
  Operating humidity: (10% - 90%) RH, non-condensing
  Storage humidity: (5% - 90%) RH, non-condensing

Certification

CE, FCC, RoHS

Software

Protocols

CDMA/CD

MAC address learning

Auto-Learning and   Auto-Aging

Functions

plug-and-play
