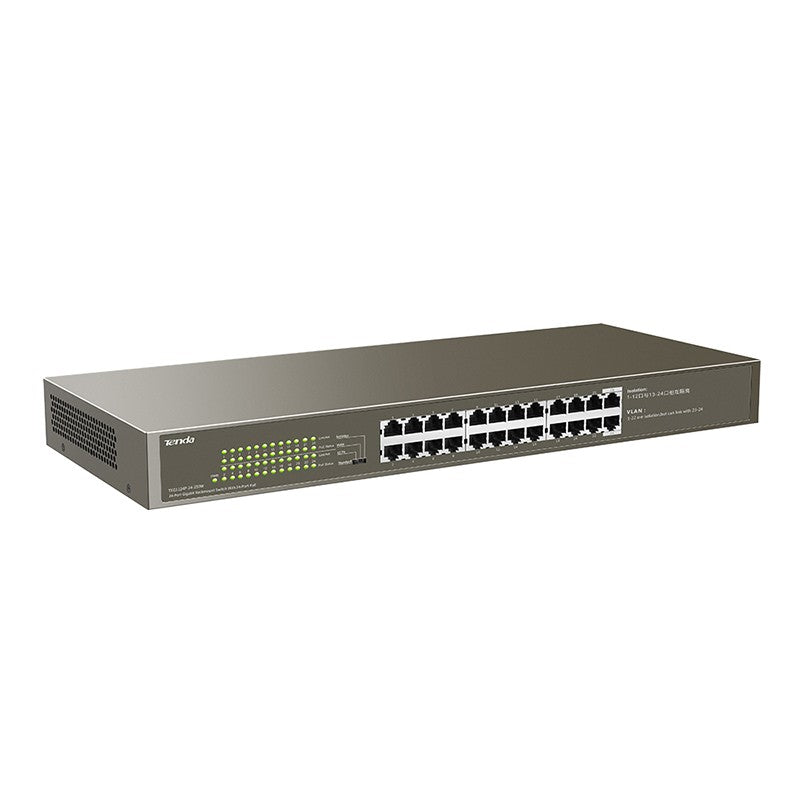

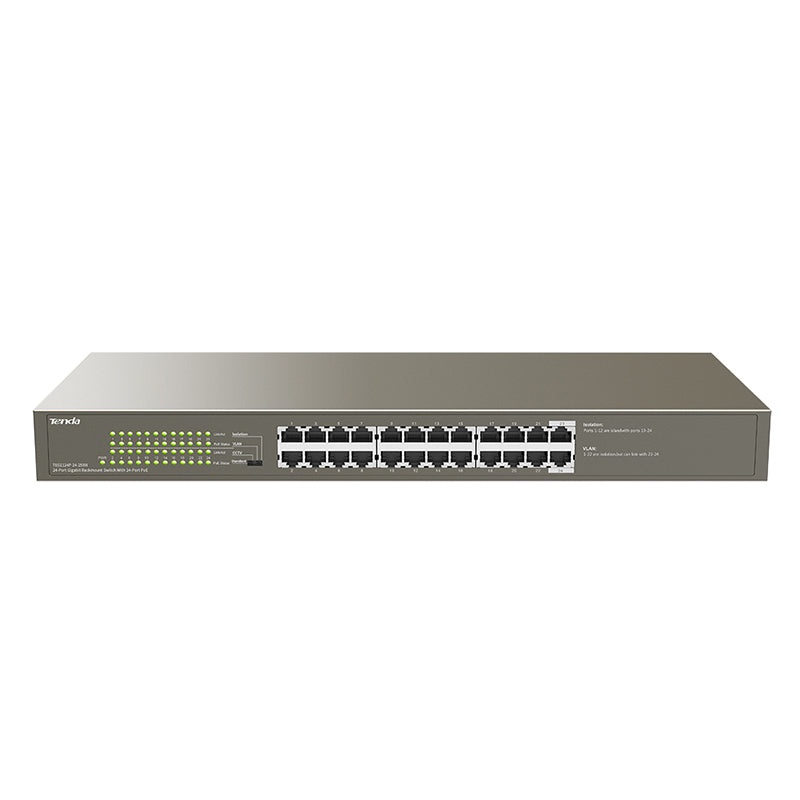

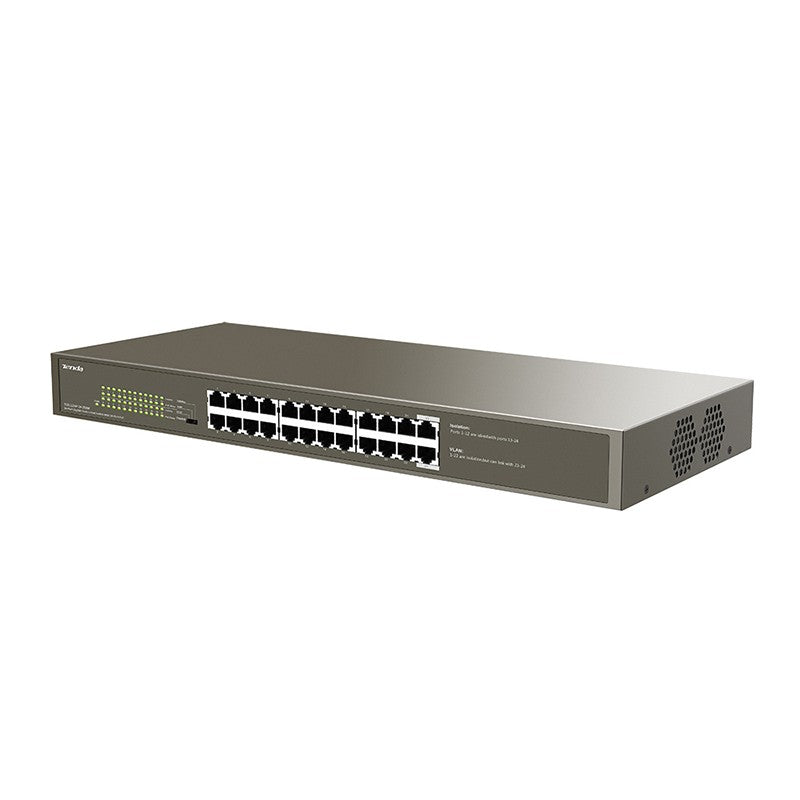

Tenda 24 Port Gigabit Unmanaged PoE+ Switch

Network standards

IEEE 802.3/IEEE   802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at

LED Indicator

24*Link/Act per device
  24*PoE per device
  1*Power per device

Interfaces

24*10/100/1000 Base-T   ports(Data/Power)

Transmission media

Recommended: CAT5/5e   UTP or better

Fan quantity

1

Dimension

440.0mmx178.0mmx44.0mm

Level of protection

Lightning protection   for ports: 6kV
  Lightning protection for power: 6kV
  ESD:
  Air discharge: ±10kV
  Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

48 Gbps

Packet forwarding rate

35.7Mpps

Buffer

2M

MAC address table

8K

Jumbo frame

N/A

PoE budget

Single port: AF: 15.4W,   AT: 30W
  Whole device: 225W

Power consumption

/

Input voltage

100-240V AC 50/60Hz

Mounting

Desktop mounting:   support
  Wall mounting: support
  Rack mounting : support

Environment

Operating Temperature:   0℃~45℃
  Storage Temperature: -40℃~70℃
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS
