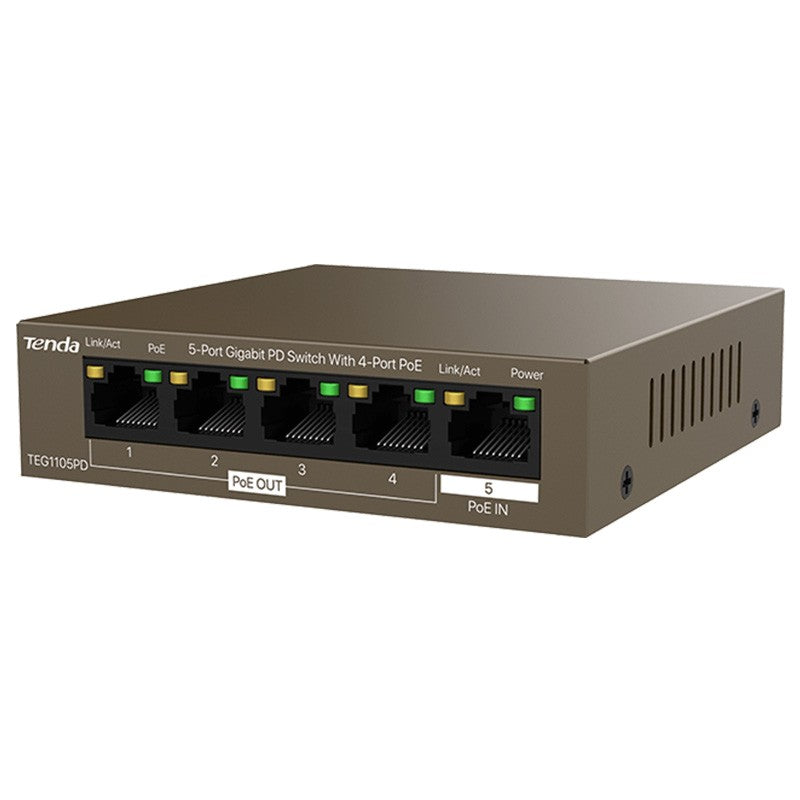

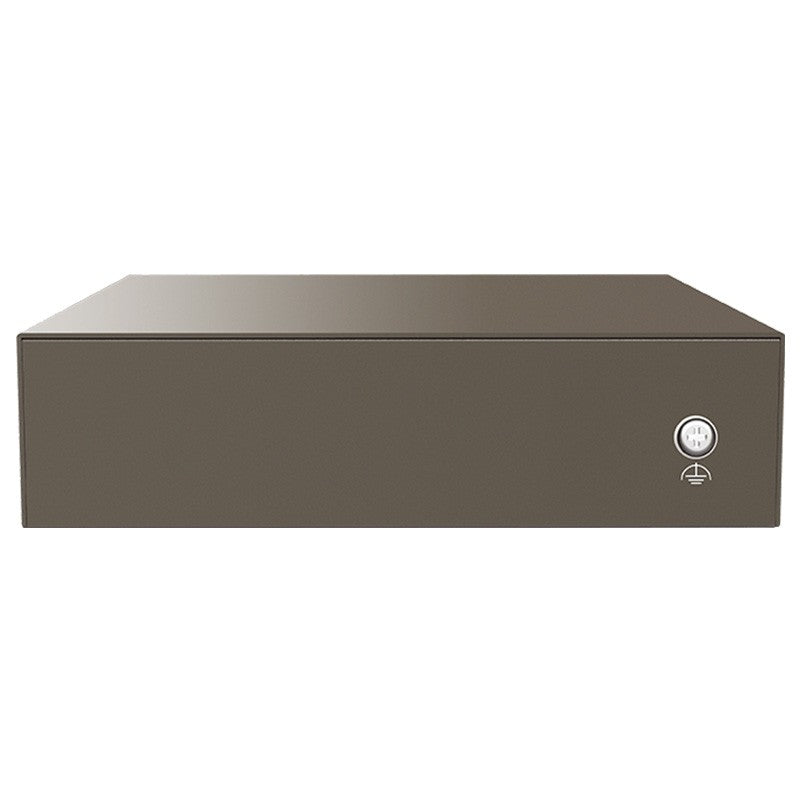

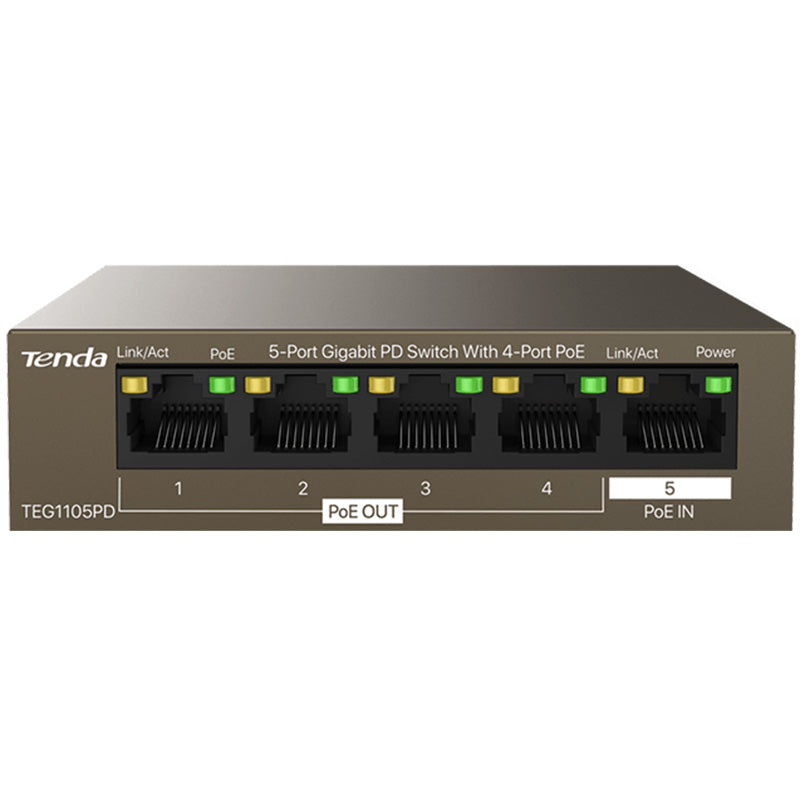

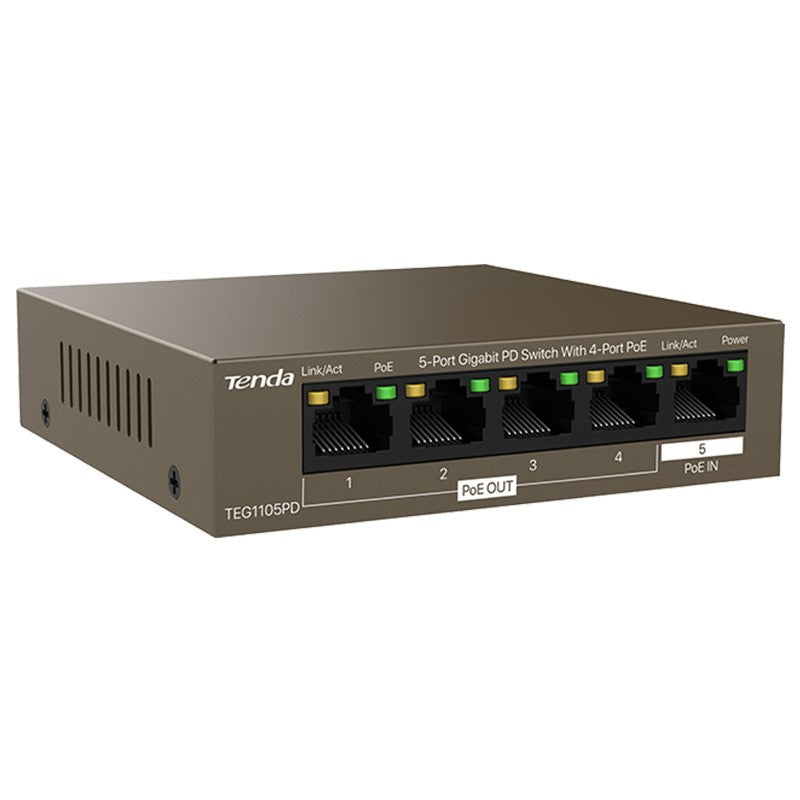

Tenda 5 Port Gigabit PD Desktop Switch with 4-Port POE/POE+ Extenders - No Power Adapter

LED Indicator

1* Power LED indicator

4* PoE LED

indicators

5* Link/Act LED indicators

Interfaces

4*10/100/1000 Base-T Ethernet Ports(Data/PoE

UT)

1*10/100/1000 Base-T Ethernet Port(Data/PoE IN)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

100.0 mm x 100.0 mm x 26.0 mm

Level of protection

Lightning protection for ports: 6kV

Lightning protection for power: 6kV

ESD:

Air discharge: ±10kV

Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

10 Gbps

Packet forwarding rate

7.44Mpps

Buffer

1 Mb

MAC address table

2K

Jombo frame

9K

PoE budget

Single port: AF: 15.4W

Power consumption

/

Input voltage

50-57V DC, 0.6A

Mounting

Desktop mounting: support

Wall mounting: non-support

Rack mounting : non-support

Environment

Operating Temperature: 0℃~45℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS
