Description
SPECIFICATIONS:
Network standards |
IEEE 802.3/3u/3x, IEEE 802.3af/at |
LED Indicator |
6 * Link/Ack LED indicators 1 * Power LED indicator |
Interfaces |

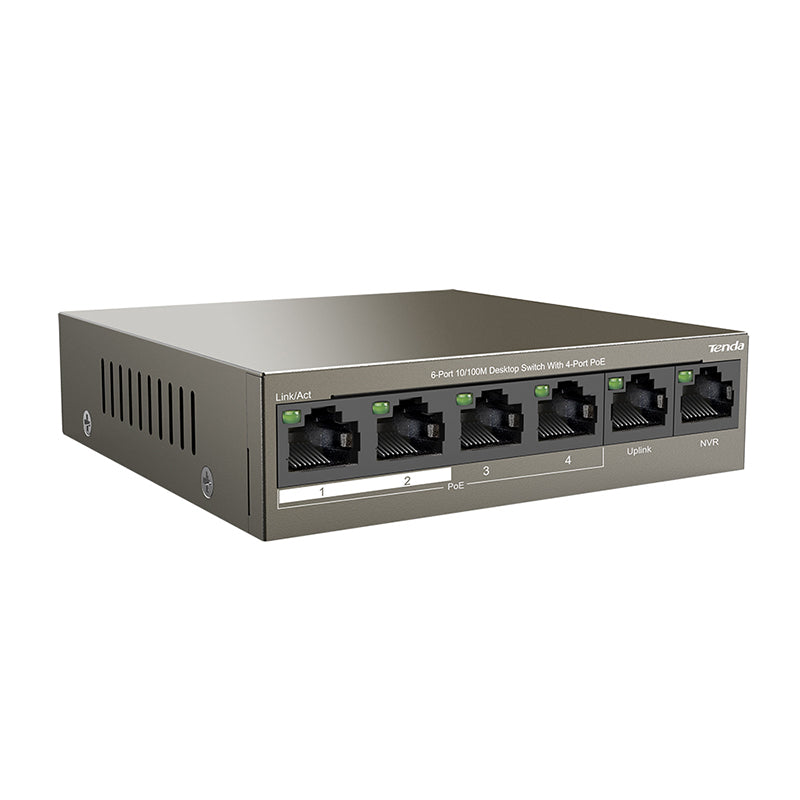

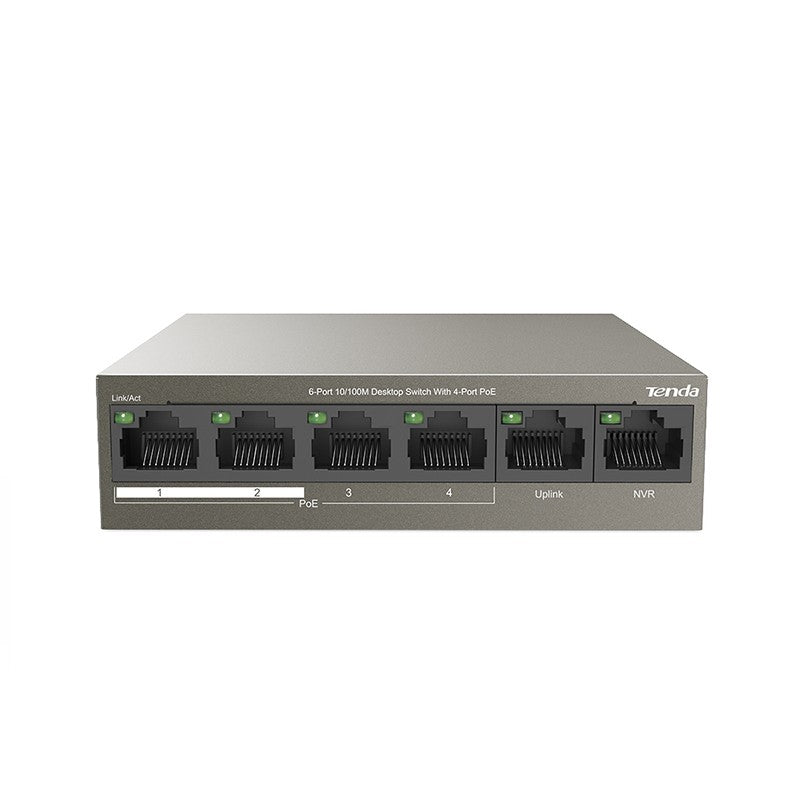

4*10/100 Base-TX Ethernet ports (Data/Power) *10/100 Base-TX Ethernet ports (Data) |
Transmission media |
Recommended: CAT5/5e UTP or better |
Fan quantity |
N/A |
Dimension |
100.0mmx100.0mmx26.0mm |
Level of protection |
Lightning protection for ports: 6KV Lightning protection for power: 4KV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
Forwarding mode |
Store-and-forward |
Switch capacity |
1.2 Gbps |
Packet forwarding rate |
0.89Mpps |
Buffer |
448K |
MAC address table |
1 K |
Jombo frame |
N/A |
PoE budget |
Single port: AF: 15.4W, AT: 30W Whole device: 63W |
Power consumption |
/ |
Input voltage |
100－240V AC 50/60Hz 51V /1.25A DC（Power Adapter ） |
Mounting |
Desktop mounting: support Wall mounting: support Rack mounting:non-support |
Environment |
Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Certification |
FCC、CE、RoHS |
Functions |
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. Extend Mode: If Extend mode is enabled, Port 1-4 will be isolated respectively (10Mbps auto-negotiation).And the delivery distance of powering and network data is up to 250m (10Mbps). |
