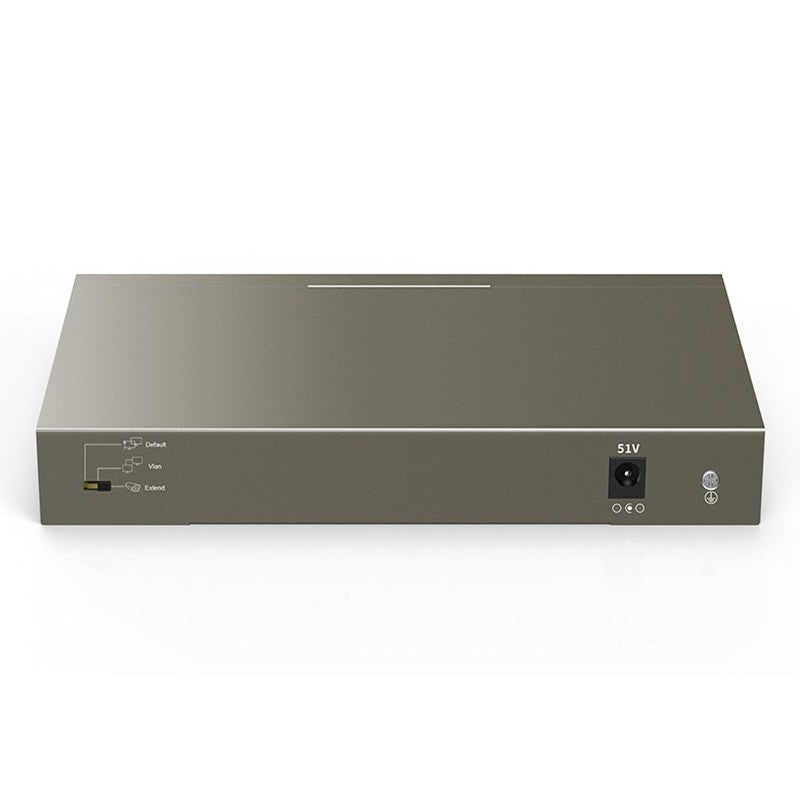

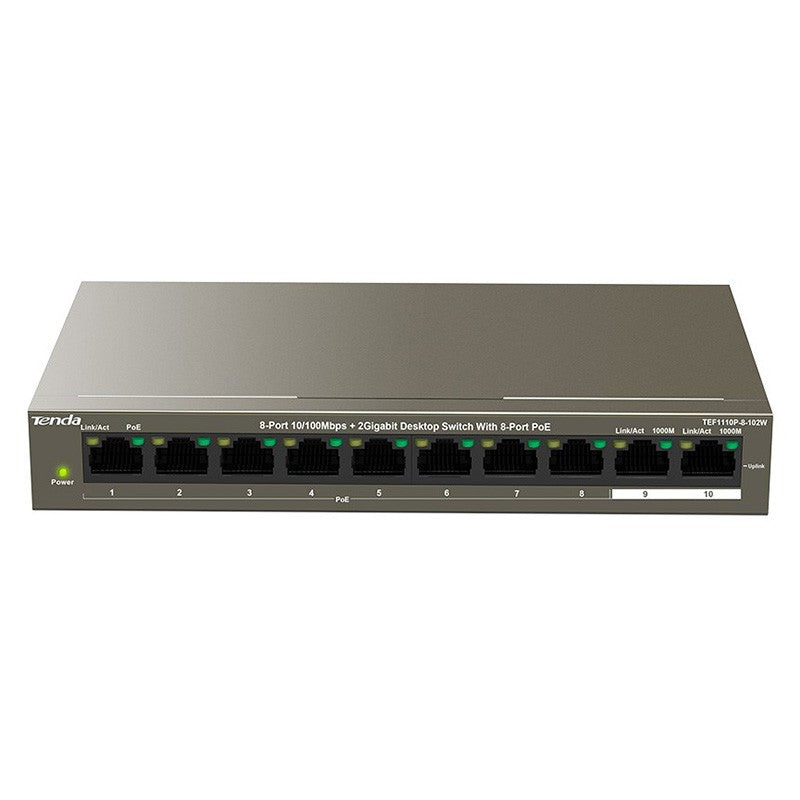

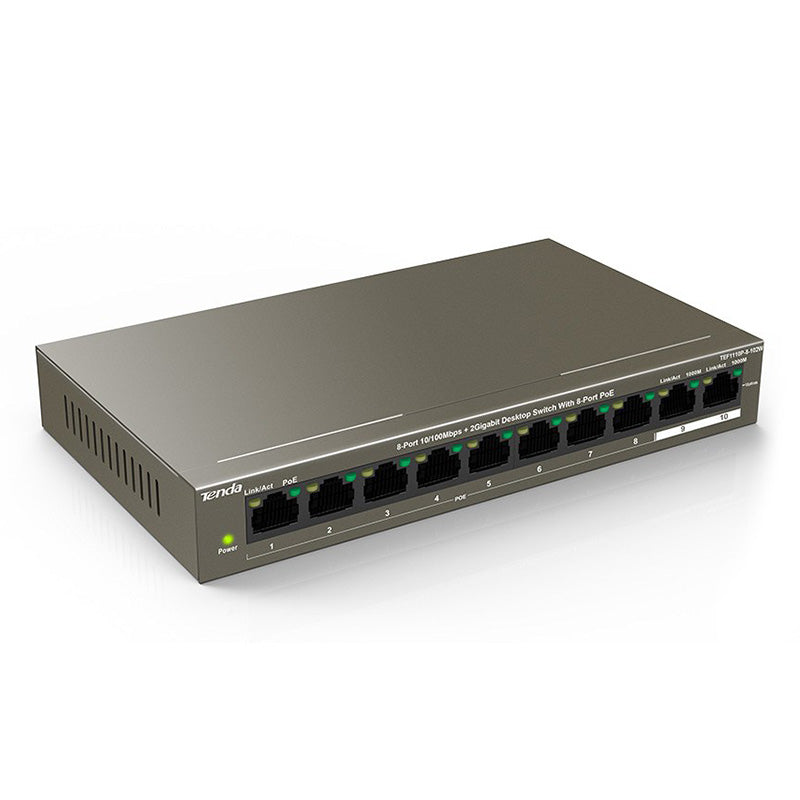

Tenda 8 Port 10/100Mbps + 2 Gigabit Desktop Switch with 8 Port PoE

LED Indicator

10* Link/Ack LED indicators

1 * Power LED indicator

Interfaces

8 * 10/100 Base-TX Ethernet ports (Data/Power)

2 * 10/100 Base-TX Ethernet ports (Data)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

177.5mmx104.0mmx26.0mm

Level of protection

Lightning protection for ports: 6KV

Lightning protection for power: 4KV

ESD:

Air discharge: ±10kV

Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

5.6 Gbps

Packet forwarding rate

1.48Mpps

Buffer

448K

MAC address table

16K

Jombo frame

N/A

PoE budget

Single port: AF: 15.4W, AT: 30W

Whole device: 99W

Power consumption

/

Input voltage

100－240V AC 50/60Hz

51V /2.1A DC（Power Adapter ）

Mounting

Desktop mounting: support

Wall mounting: support

Rack mounting: non-support

Environment

Operating Temperature: 0℃~45℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS
