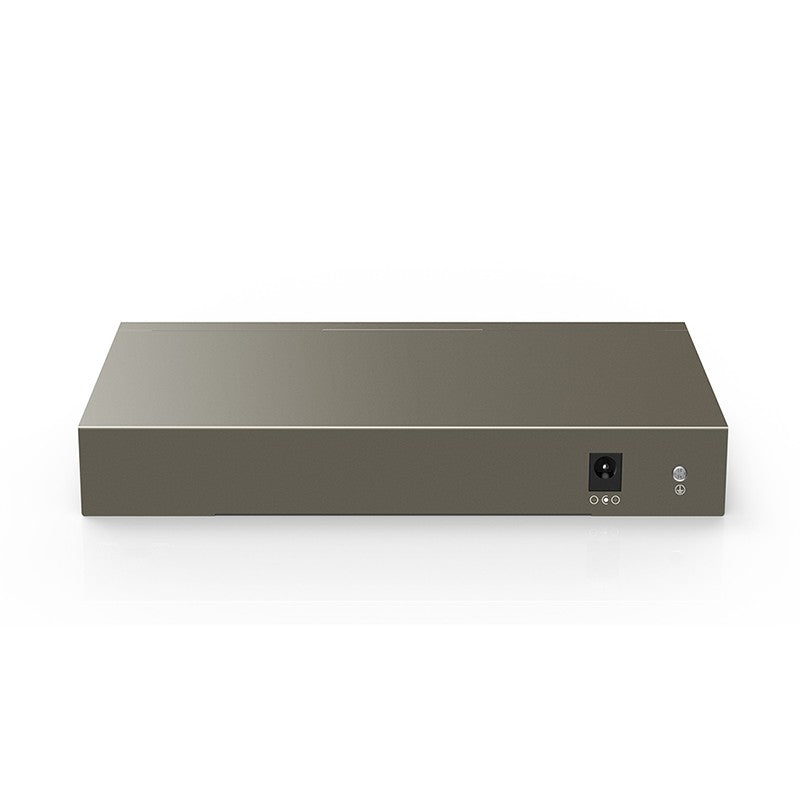

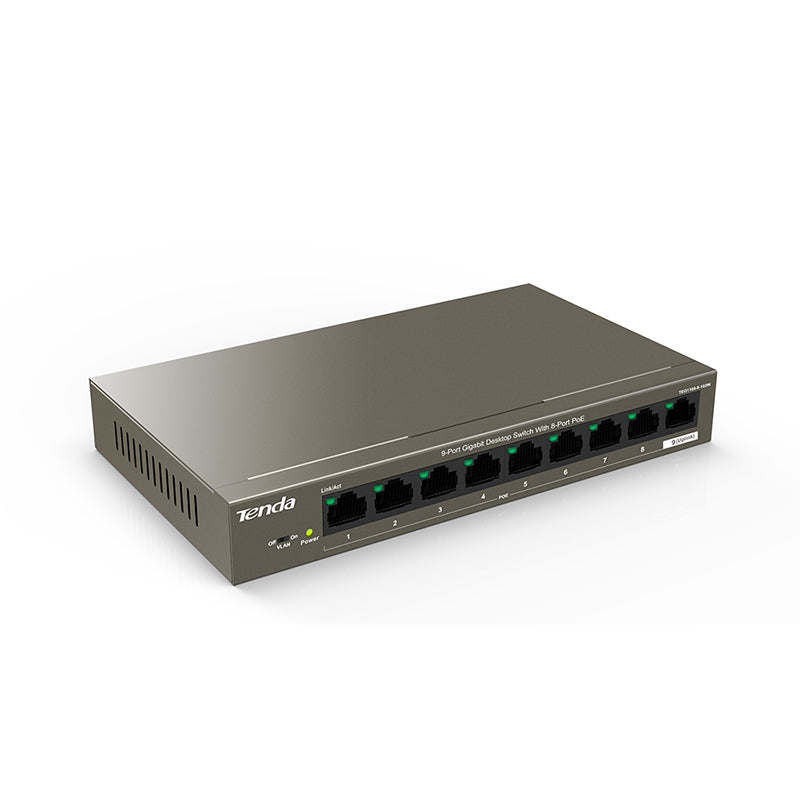

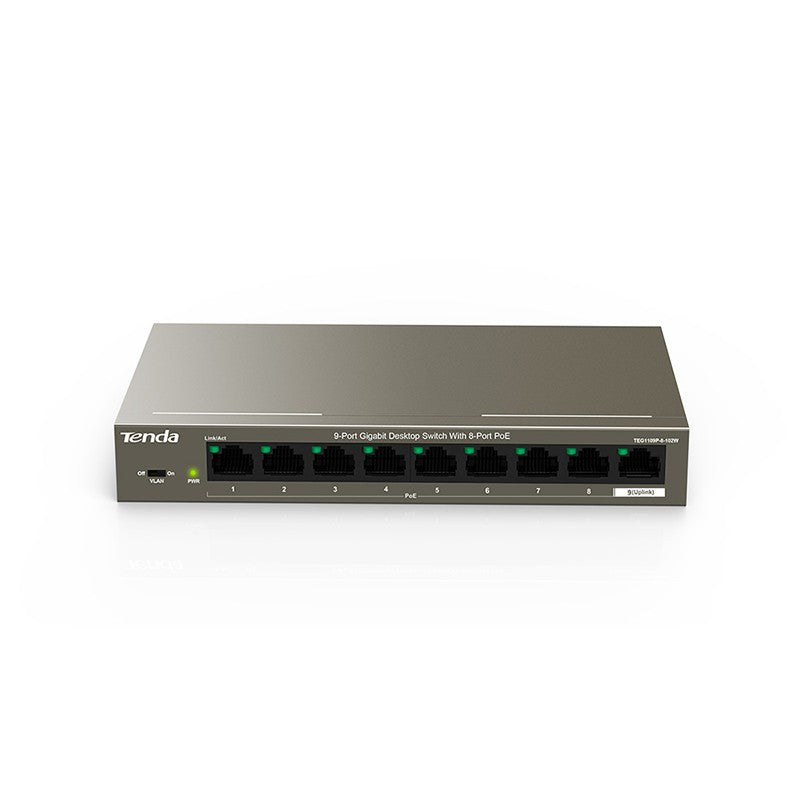

Tenda 9 Port Gigabit with 8-Port PoE Desktop Switch

Network standards

IEEE 802.3、 IEEE 802.3u、IEEE 802.3ab、IEEE   802.3x、 IEEE 802.3af、IEEE   802.3at

LED Indicator

9* Link/Ack LED   indicators
  1 * Power LED indicator

Interfaces

8*10/100/1000 Base-T   Ethernet Ports(Data/Power)
  1*10/100/1000 Base-T Ethernet Ports(Data)

Transmission media

Recommended: CAT5/5e   UTP or better

Fan quantity

N/A

Dimension

177.5mmx104.0mmx26.0mm

Level of protection

Lightning protection   for ports: 6kV
  Lightning protection for power: 6kV
  ESD:
  Air discharge: ±10kV
  Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

18 Gbps

Packet forwarding rate

13.4Mpps

Buffer

2M

MAC address table

16K

Jumbo frame

N/A

PoE budget

Single port: AF: 15.4W,   AT: 30W
  Whole device: 92W

Power consumption

/

Input voltage

100-240V AC 50/60Hz
  51V /2.0A DC（Power Adapter Output ）

Mounting

Desktop mounting:   support
  Wall mounting: support
  Rack mounting: non-support

Environment

Operating Temperature:   0℃~45℃
  Storage Temperature: -40℃~70℃
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS

Software

Functions

Standard: the switch   functions as a common unmanaged switch and all the ports of the switch can   communicate with each other.
  VLAN: ports 1 to 8 are isolated from each other, but can communicate with   ports 9 (uplink port) respectively.
