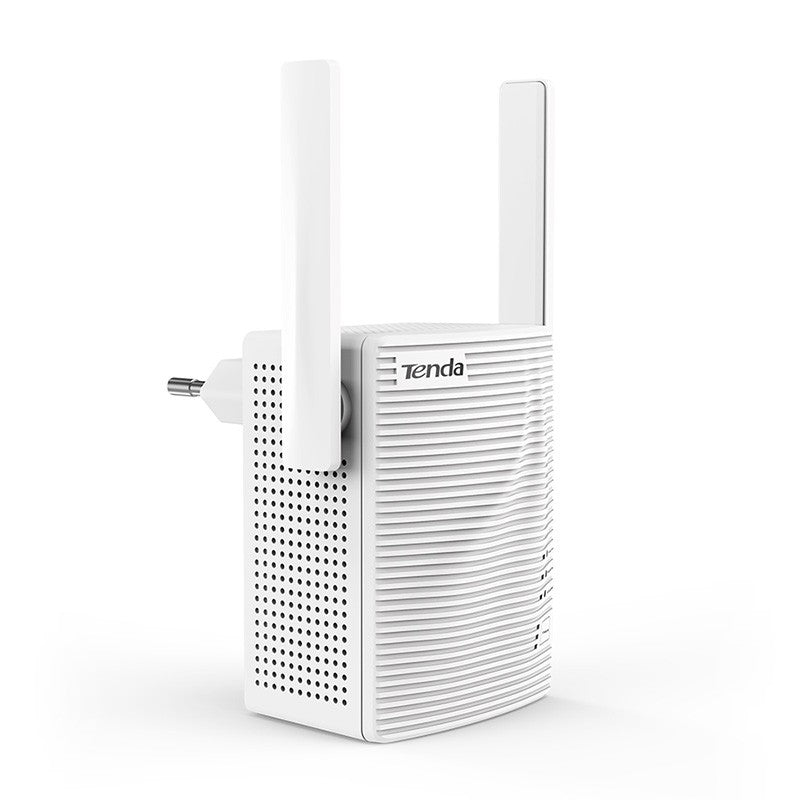

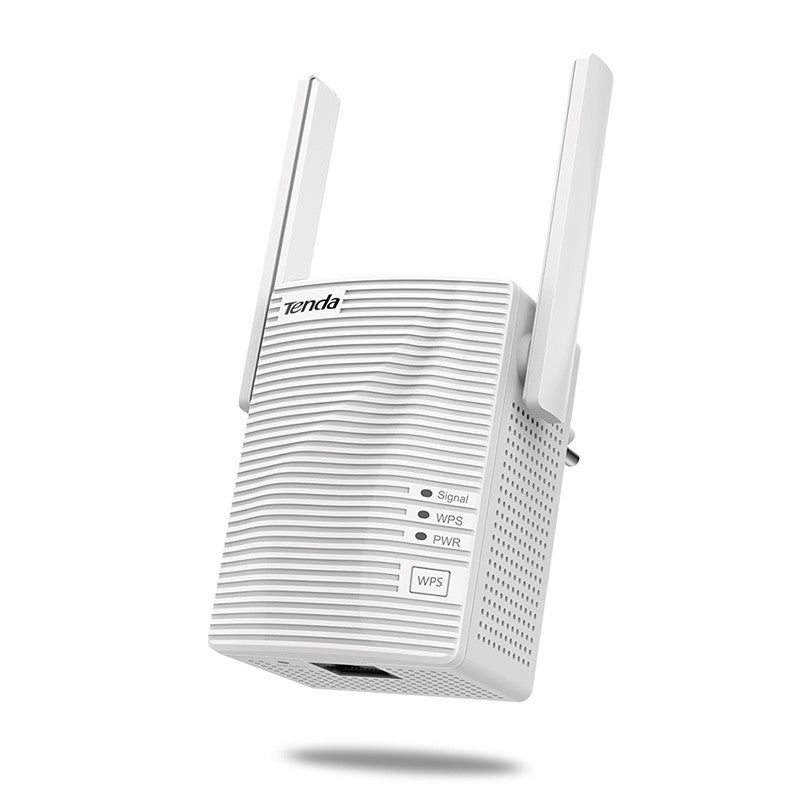

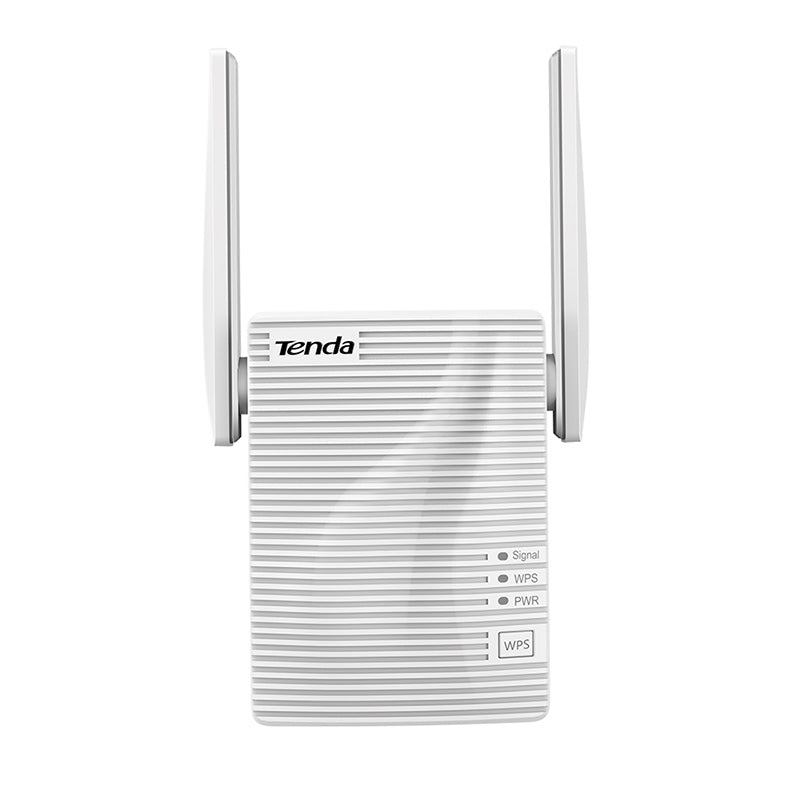

Tenda A15 AC750 v3 Dual Band Wi-Fi Repeater

Interfaces

1*10/100Mbps RJ45

Antenna Type

2 * External 2dBi dual-band omni-directional antenna

Button

1 * WPS Button

1 * Reset Button

LED Indicator

1 * Signal LED

1 * WPS LED

1 * Power LED

Power Supply

9V0.8A, built-in

Power Consumption

5.2W (max power consumption)

Dimension

80mm*58mm*48mm(L x W x H)

WIRELESS

Wireless Standard

IEEE802.11b,IEEE 802.11g, IEEE 802.11n, IEEE 802.11a,IEEE 802.11ac

Frequency

5 GHz(11ac)

2.4 GHz

Data Rate

5GHz: Up to 433Mbps

2.4GHz: Up to 300Mbps

RSSI

2.4 GHz

11b-1M:-97dBm

11g-54M:-76dBm

11n-20M-MCS7:-74dBm

11n-40M-MCS7:-72dBm

5 GHz:

11a-6M:-95dBm

11n-20M-MCS7:-74dBm

11n-40M-MCS7:-72dBm

11ac-80M-MCS9:-63dBm

Transmission Power

<20dBm

Wireless Modes

Repeater Mode，Access Point Mode

Wireless Security

Default encryption mode: Mix WPA-PSK/WPA2-PSK

WPA algorithm: TKIP

OTHERS

Certification

CE, FCC、RoHS

Plug Type

US、EU、UK、BR、AU、AR

Package Contents

1 * AC750 Dual Band WiFi Repeater

1 * Quick Installation Guide

System Tool

Firmware upgrade, Restore factory settings, Login password, and Reboot

Environment

Operating Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Operating Humidity: (10~90)% RH, non-condensing
