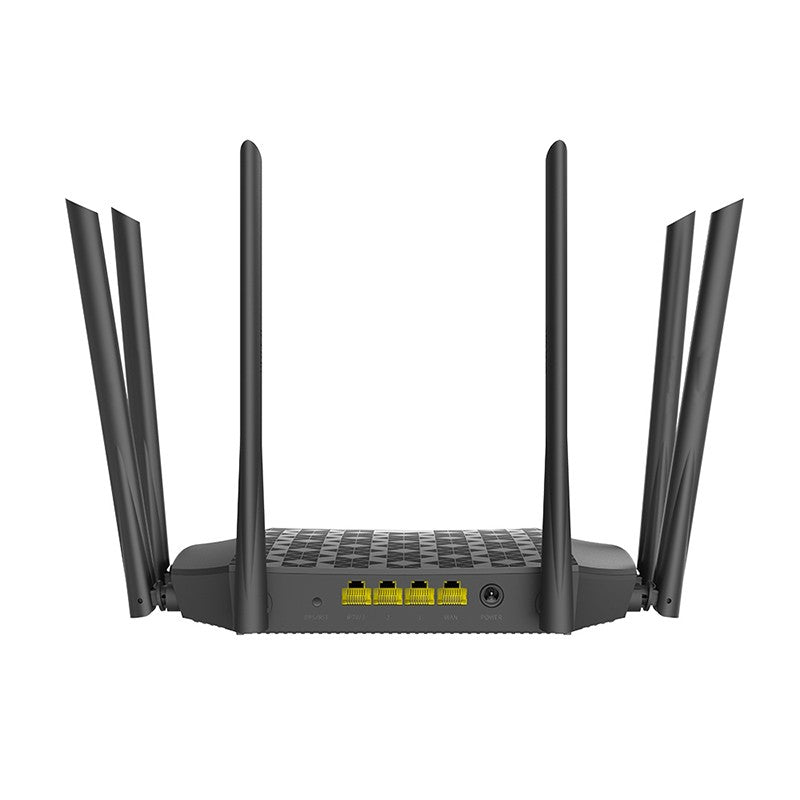

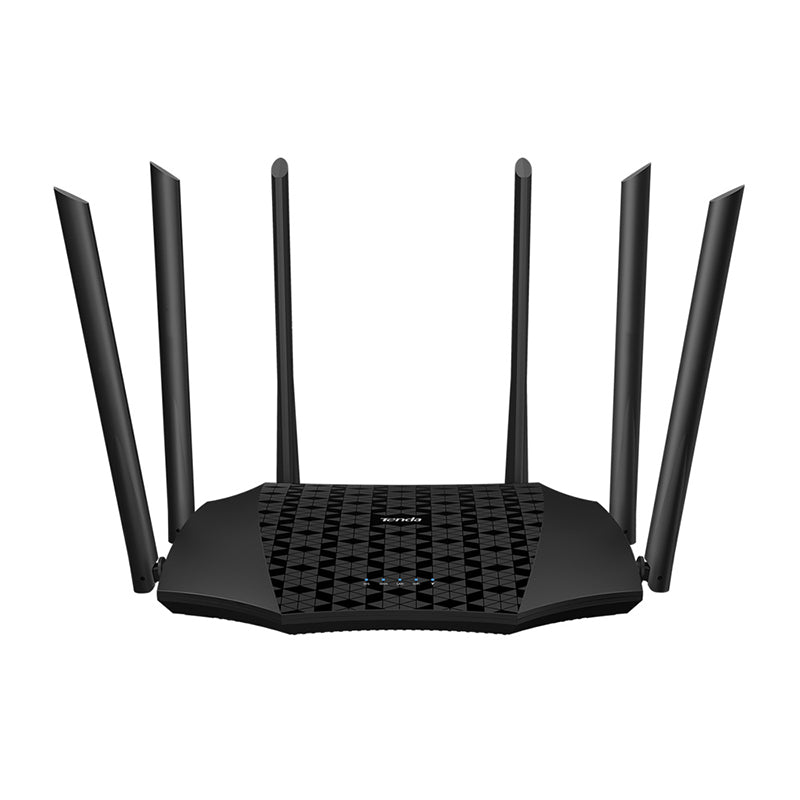

Tenda AC21 AC2100 Dual-Band Gigabit Wireless Router

Standard&Protocol

IEEE802.3,   IEEE802.3u,IEEE802.3ab

Interfaces

1*10/100/1000Mbps WAN   port
   3*10/100/1000Mbps LAN ports

Antenna

6*6dBi external   antennas

Button

1* WPS/Reset button

Power

Input：AC 100-240V~50/60Hz 0.6A
  Output：DC 12V1.5A

Dimension

9.11 * 5.93* 1.56 in   (231.3X150.6X39.6mm)

LED Indicator

Sys*1,WAN*1,   LAN*1,WiFi/WPS*1

Wireless

Wireless Standard

IEEE 802.11ac wave2/a/n   5GHz
  IEEE 802.11b/g/n 2.4GHz

Data Rate

5GHz: Up to 1733Mbps
  2.4GHz: Up to 300Mbps

Frequency

Simultaneous dual band   2.4 & 5GHz

Transmission Power

CE:
  <20dBm(2.4G)
  <23dBm(5G)

Basic Features

SSID Broadcast:   Enable/Disable
  Transmission Power: high, medium, low
  Beamforming
  MU-MIMO

Wireless Security

WPA-PSK/WPA2-PSK,   WPA/WPA2
   Wireless Security: Enable/Disable
   WPS(WiFi Protected Set-up) fast encryption

Software

Internet Connection Type

PPPoE, Dynamic IP,   Static IP
  PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Operating Mode

Wireless Router Mode
  Universal Repeater Mode
  WISP Mode

DHCP Server

DHCP Server
  DHCP Client List
  DHCP Reservation

Virtual Server

Port Forwarding
  DMZ Host
  UPnP

Security

Client Filter
  Parental Control(support black list and white list)
  Remote Web Management

Firewall

Forbid UDP flood attack
  Forbid TCP flood attack
  Forbid ICMP attack
  Forbid WAN PING from internet

DDNS

no-ip,DynDNS,Oray, 88ip

VPN

IPsec pass through
  PPTP pass through
  L2TP pass through
  PPTP server
  PPTP client
  L2TP client

Special Features

Smart Traffic   Prioritisation
  PPPoE Username/password Clone
  Smart WiFi Schedule
  Smart Power Saving
  Smart LED on/off
  Tenda Cloud
  Tenda App

Others

Bandwidth Control
  Guest Network
  IPTV
  MAC Clone
  Static Routing
  System Log
  Backup & Restore configurations
  Firmware upgrade online
  Firmware upgradeable via browser
  Supports IPv6

Others

Temperature

Operating Temperature:   0℃ ~ 40℃
  Storage Temperature: -40℃ ~ 70℃.

Humidity

Operating Humidity:10%   ~ 90% RH non-condensing
  Storage Humidity: 5% ~ 90%RH non-condensing.

Default Settings

Default Access:   tendawifi.com

Certification

CE/FCC/RoHS

EIRP Power (Max)

2.400-2.4835GHz:19.86dBm   (EIRP)
  5.150-5.250GHz:22.96dBm (EIRP)
