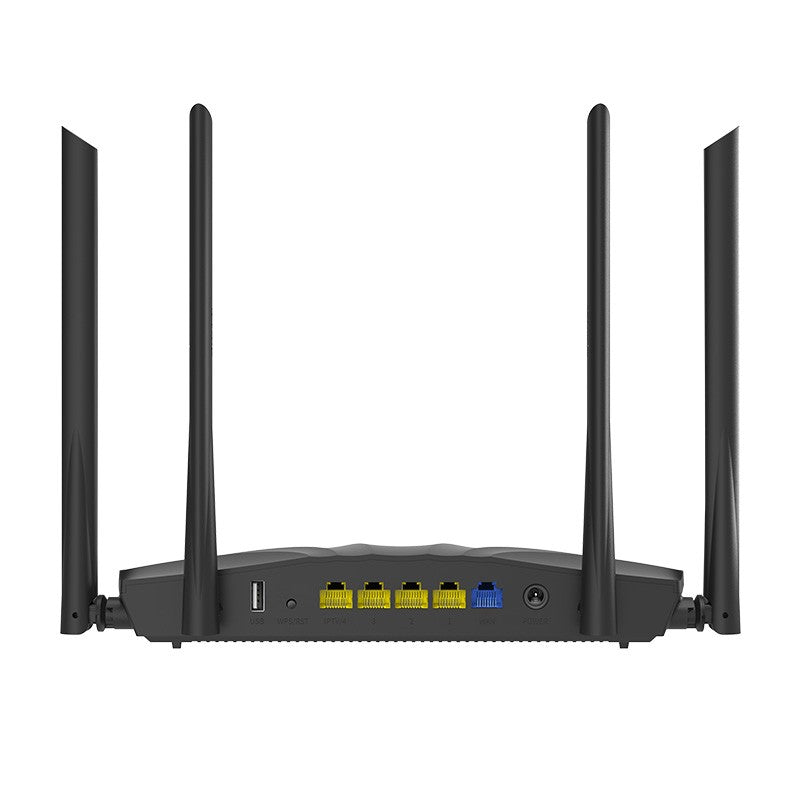

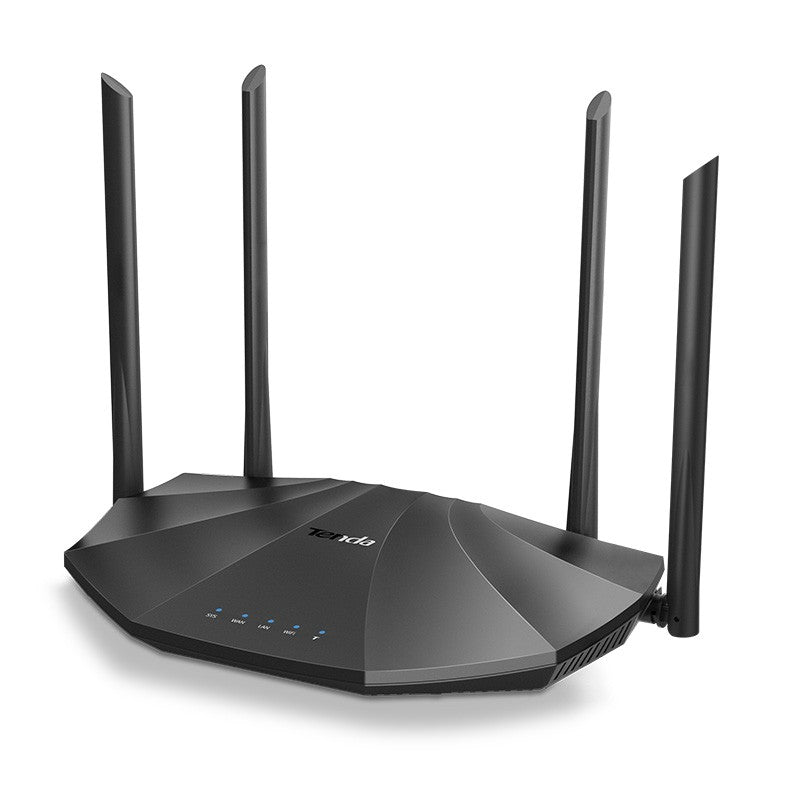

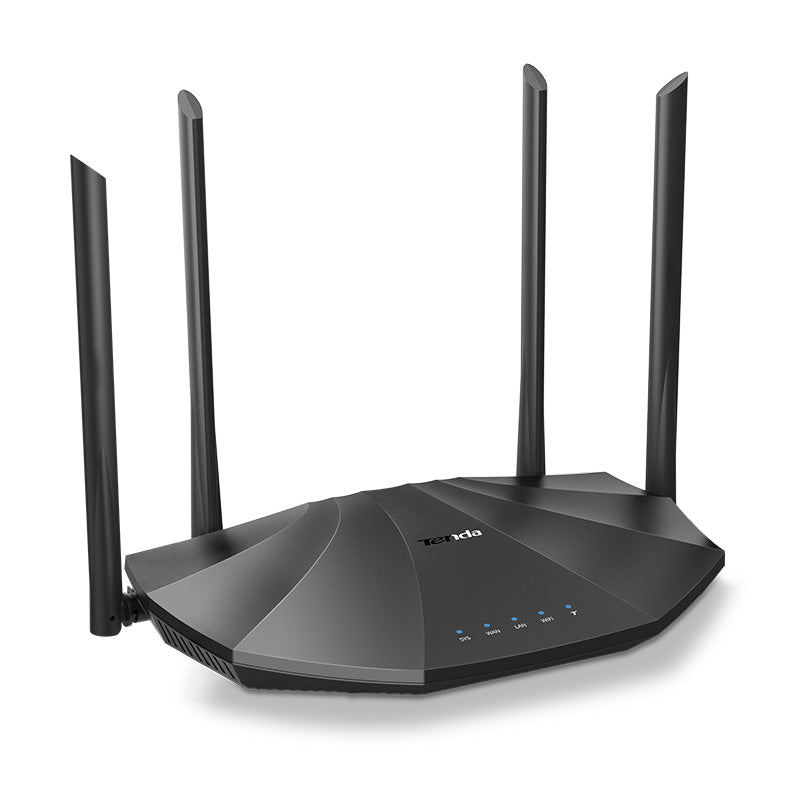

Tenda AC2100 Dual Band Gigabit WiFi Router

Standard&Protocol

IEEE802.3, IEEE802.3u,IEEE802.3ab

Interfaces

1*10/100/1000Mbps WAN

port

4*10/100/1000Mbps LAN ports

USB2.0*1

Antenna

4*6dBi external antennas

Button

1* WPS/Reset button

Power

Input：AC 100-240V~50/60Hz 0.6A

Output：DC 12V2A

Dimension

9.41 * 5.68 * 1.59 in (238.9X144.3X40.3mm)

LED Indicator

Sys*1,WAN*1, LAN*1,WiFi/WPS*1

WIRELESS

Wireless Standard

IEEE 802.11ac wave2/a/n 5GHz

IEEE 802.11b/g/n 2.4GHz

Data Rate

5GHz: Up to 1733Mbps

2.4GHz: Up to 300Mbps

Frequency

Simultaneous dual band 2.4 & 5GHz

Transmission Power

CE:

<20dBm(2.4G)

<23dBm(5G)

Basic Features

SSID Broadcast: Enable/Disable

Transmission Power: high, medium, low

Beamforming

MU-MIMO

Wireless Security

WPA-PSK/WPA2-PSK, WPA/WPA2

Wireless Security: Enable/Disable

WPS(WiFi Protected Set-up) fast encryption

SOFTWARE

Internet Connection Type

PPPoE, Dynamic IP, Static IP

PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Operating Mode

Wireless Router Mode

Universal Repeater Mode

WISP Mode

DHCP Server

DHCP Server

DHCP Client List

DHCP Reservation

Virtual Server

UPnP

DMZ Host

Port Forwarding

Security

Client Filter

Parental Control(support black list and white list)

Remote Web Management

Firewall

Forbid UDP flood attack

Forbid TCP flood attack

Forbid ICMP attack

Forbid WAN PING from internet

DDNS

no-ip,DynDNS,Oray, 88ip

VPN

IPsec pass through

PPTP pass through

L2TP pass through

PPTP server

PPTP client

L2TP client

Special Features

Smart Traffic Prioritisation

PPPoE Username/password Clone

Smart WiFi Schedule

Smart Power Saving

Smart LED on/off

Tenda Cloud

Tenda App

Others

Bandwidth Control

Guest Network

IPTV

MAC Clone

Static Routing

System Log

Backup & Restore configurations

Firmware upgrade online

Firmware upgradeable via browser

Supports IPv6

Alexa

OTHERS

Temperature

Operating Temperature: 0℃ ~ 40℃

Storage Temperature: -40℃ ~ 70℃.

Humidity

Operating Humidity:10% ~ 90% RH non-condensing

Storage Humidity: 5% ~ 90%RH non-condensing.

Default Settings

Default Access: tendawifi.com

Certification

CE/FCC/RoHS

EIRP Power (Max)

2.400-2.4835GHz:19.86dBm (EIRP)

5.150-5.250GHz:22.96dBm (EIRP)

Package Contents

Wireles Router*1

Power Adapter *1

Install Guide*1

Ethernet Cable*1
