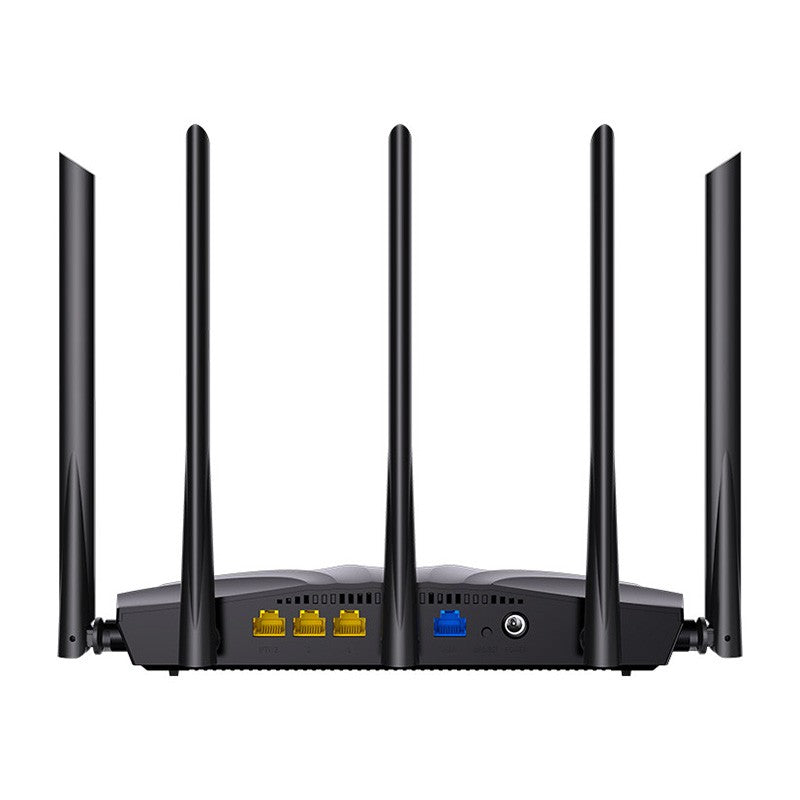

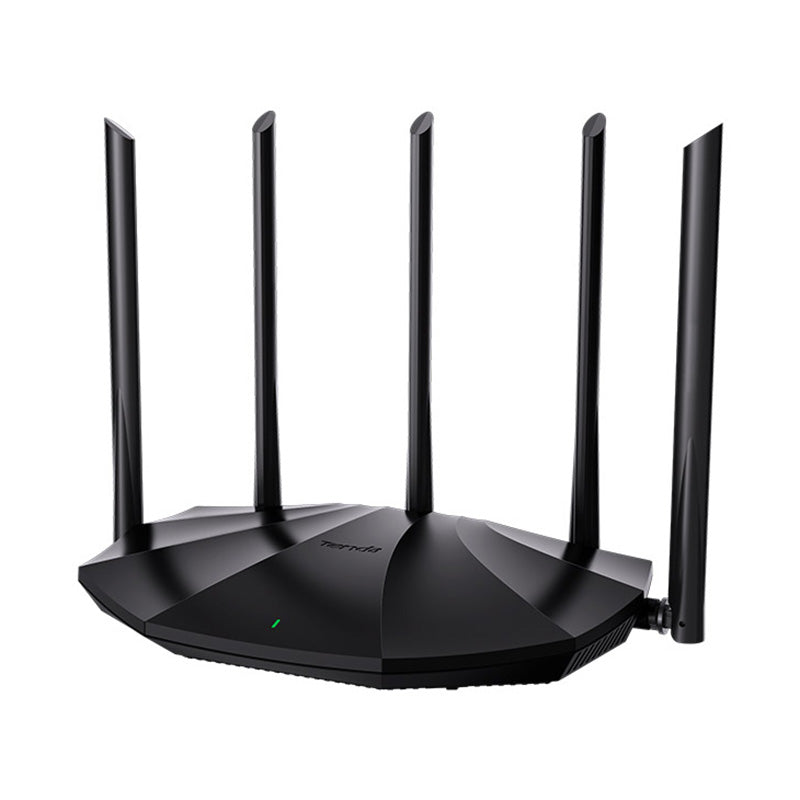

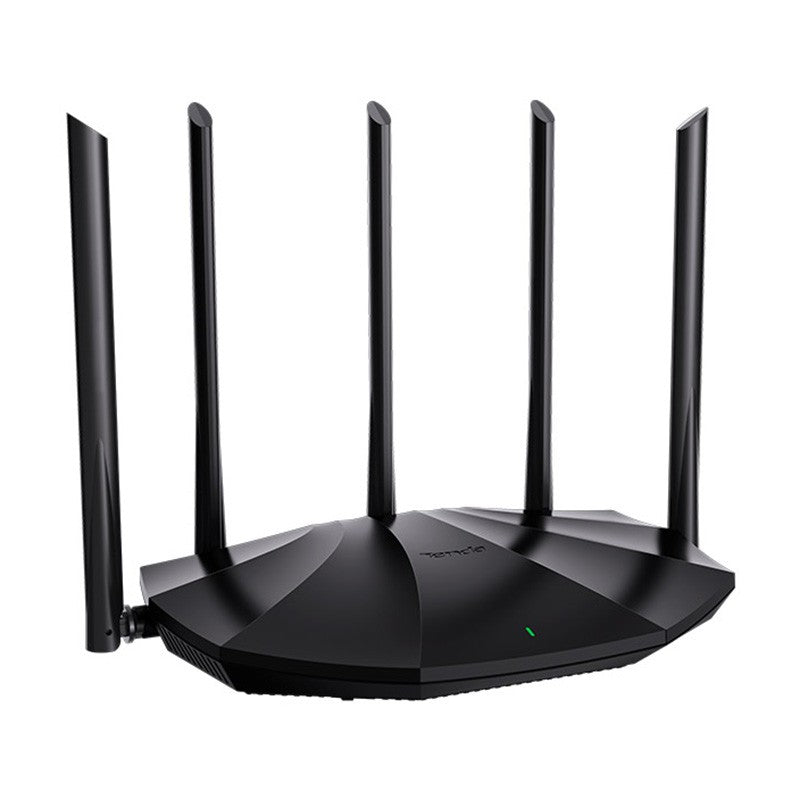

Tenda AX1500 Dual-Band Wi-Fi 6 Gigabit Router

Standard&Protocol

IEEE802.3, IEEE802.3u,IEEE802.3ab

Interfaces

1*10/100/1000Mbps WAN Port

3*10/100/1000Mbps LAN Ports

Antenna

5*6dBi External Antennas

Button

WPS/Reset Button*1

Power

Input：AC 100-240V~50/60Hz 0.6A

Output：DC 12V⎓1A

Dimension

9.40*5.68*1.58 in (238.9*144.3*40.3mm)

LED Indicator

SYS*1

WIRELESS

Wireless Standard

IEEE 802.11n/b/g 2.4 GHz

IEEE 802.11ax/ac/n/a 5GHz

Data Rate

5GHz: Up to 1201Mbps

2.4GHz: Up to 300Mbps

Frequency

2.4GHz & 5GHz

Transmission Power

CE:

<20dBm(2.4G)

<23dBm(5G)

Basic Features

Beamforming

MU-MIMO

Smart Power Saving

Tenda App: Local and Remote Management

Wireless Security

WPA2-PSK

WPA3-SAE/WPA2-PSK

Wireless Encryption Disable and Enable

WPS Fast Connection

SOFTWARE

Internet Connection Type

PPPoE, Dynamic IP, Static IP

PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Unify,Maxis,Maxis-special,Celcom,Digi

Operating Mode

Wireless Router Mode

AP Mode

Universal Repeater Mode（Client+AP）

DHCP Server

DHCP Server

DHCP Client List

DHCP Reservation

Virtual Server

Port Forwarding

DMZ Host

UPnP

Security

Parental Control

Client Filter

Firewall

Forbid UDP Flood Attack

Forbid TCP Flood Attack

Forbid ICMP Flood Attack

Forbid WAN Ping from Internet

DDNS

Support DynDNS, No-ip，oray，88ip

VPN

-

Special Features

WPA3

Unify 2.4 GHz & 5 GHz

Smart LED on/off

Tenda Wi-Fi App

Others

Bandwidth Control

Guest Network

IPTV

VLAN

MAC Clone

Static Routing

System Log

Backup & Restore configurations

Firmware upgrade online

Firmware upgradeable via browser

Supports IPv6

OTHERS

Temperature

Operating Temperature : 0℃~40℃

Storage Temperature : -40C ~70℃

Humidity

Operating Humidity : 10 %~90% RH   non-condensing

Storage Humidity : 5 %~ 90%RH non-condensing

Default Settings

tendawifi.com or http://192.168.0.1

Certification

CE, RoHS, FCC

EIRP Power (Max)

2.4GHz＜20dBm

5GHz＜23dBm

Package Contents

Dual-Band Gigabit Wi-Fi 6 Router*1

Ethernet Cable*1

Power Adapter*1

Installation Guide*1
