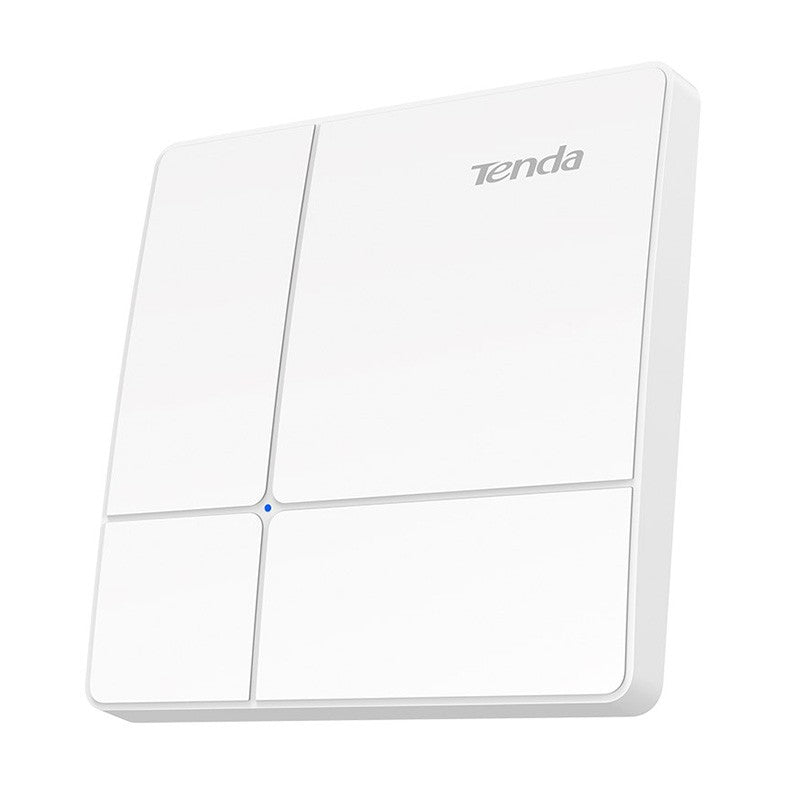

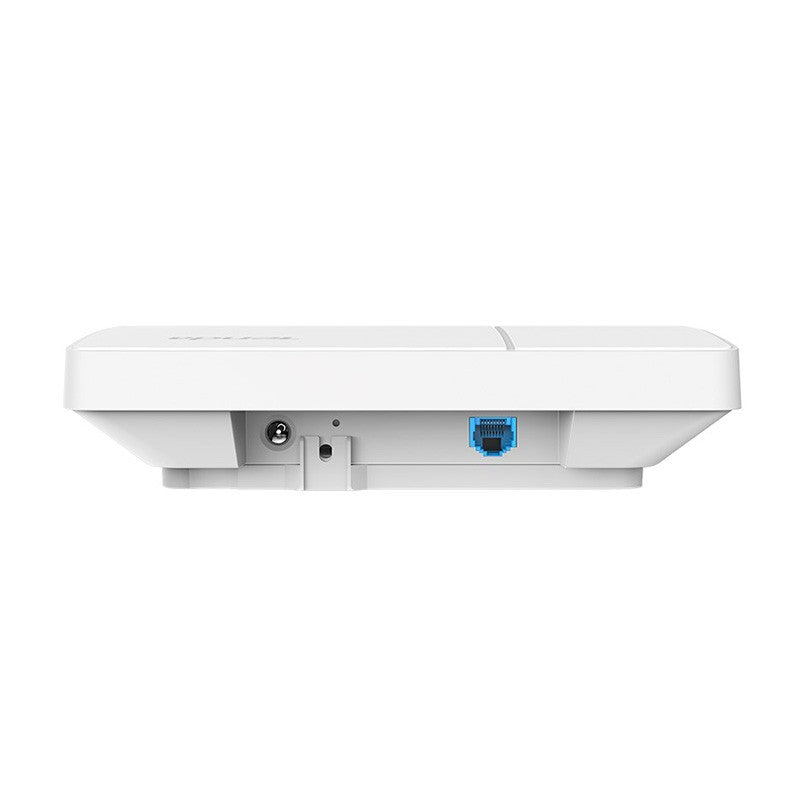

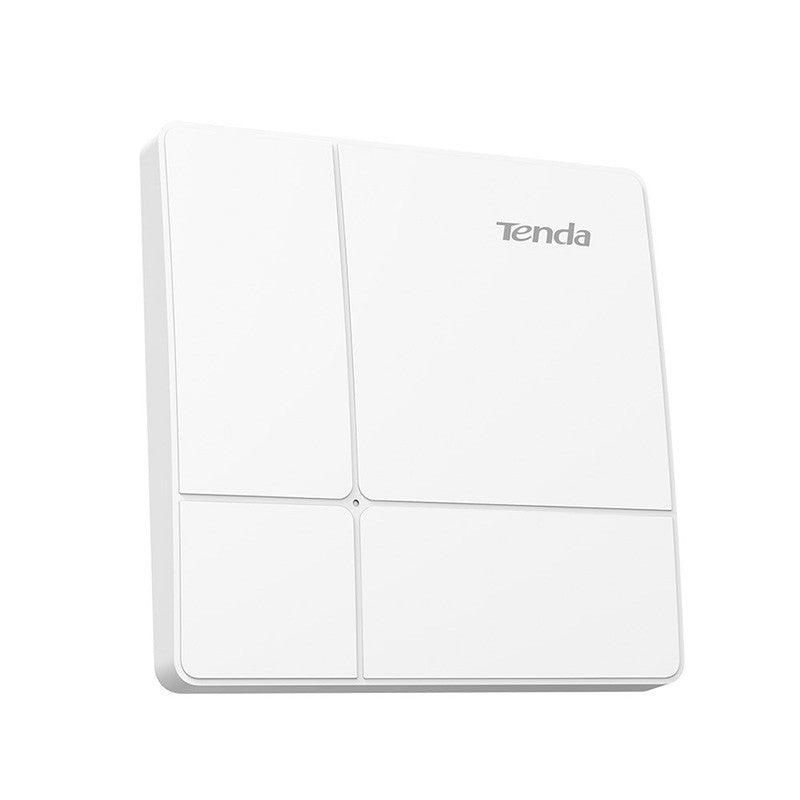

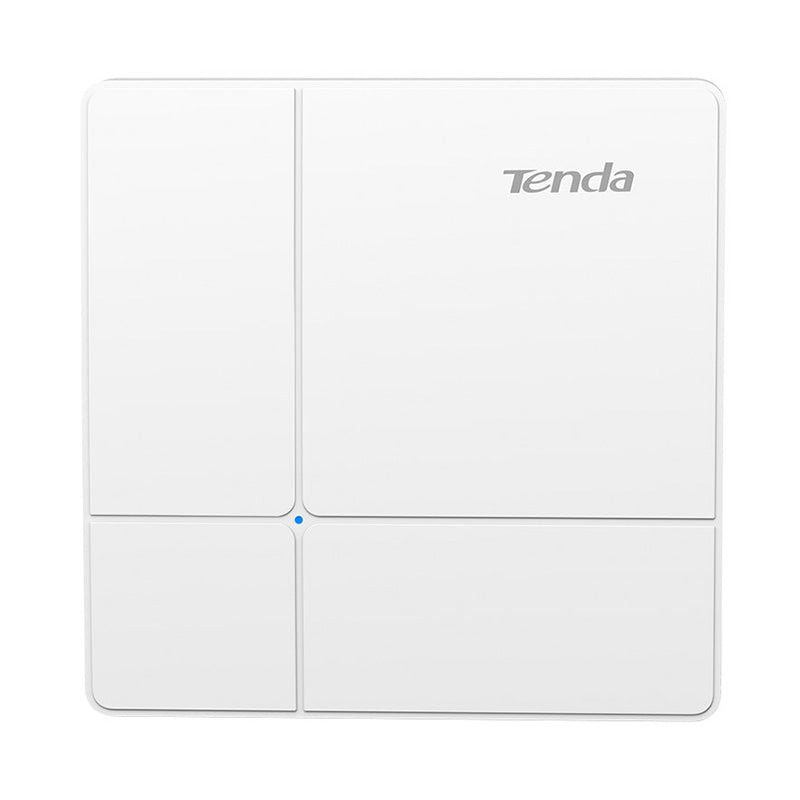

Tenda i24 AC1200 Wave 2 Dual-Band Gigabit Wireless Access Point

Dimension

178 × 178 × 38mm

Ethernet Interface

1 x 10/100/1000 Base TX

Antenna

2.4GHz: 2 x 4dBi

5GHz: 2 x 4dBi

Button

1 x RESET

LED Indicator

1 x SYS

Maximum Power Consumption

<11.5W

Power supply standard

802.3af/at and DC: 12V 1A

WIRELESS

Frequency Band

2.4GHz

Data Rate

2.4GHz: 300Mbps

5GHz: 867Mbps

Wireless Standard

802.11a/b/g/n/ac(wave2)

Max Transmit Power

2.4GHz: 23dBm

5GHz: 23dBm

Sensitivity

802.11b :-93 dBm

2.4 GHz 802.11n (MCS7):-73dBm

5 GHz 802.11a :-93 dBm

5 GHz 802.11n (MCS7) :-74 dBm

SOFTWARE

MU-MIMO

Support

Operating Mode

AP/Client AP

Hide SSID

Support

Max. No. of SSID

2.4GHz: 8

5GHz: 4

Max. connected clients

256

WEP

Support

WPA-PSK

Support

WPA2-PSK

Support

WPA

Support

WPA2

Support

Access control

Support

Adjustable power transmit

Support

AP isolation

Support

Connected clients control

Support

RSSI Threshold

Support

WMM

Support

VLAN tagging for SSID

Support

LED control

Support

Diagnostics

Support

Schedule Reboot

Support

Reboot at specified interval

Support

Centralized Management

Support

System Logs

Support

Firmware upgrade

Support

Reboot

Support

Reset Button

Support

Backup configuration

Support

Restore configuration

Support

OTHERS

Default login IP

192.168.0.254

Default Login Username

admin

Default Login Password

admin

Operation Temperature

-10℃ ~   40℃

Operating humidity

10%~90% non-condensing

Storage temperature

-30℃ ~   70℃

Storage humidity

10%~90% non-condensing
