Description
SPECIFICATIONS:
HARDWARE |
|
Standard & Protocol |
IEEE802.3, IEEE802.3u, IEEE802.3ab |
Interface |
Gigabit Port*3 |
Antenna |
Built-in Antennas*7 |
Button |
Reset Button*1、MESH Button*1 |
Power |
Input: AC 100-240V~50/60Hz Output: DC 12V 2.5A |
LED indicator |
1 * LED |
WIRELESS |
|
Wireless Standards |
6GHz: IEEE 802.11ax 5GHz: IEEE 802.11ax/ac/n/a 2.4GHz: IEEE 802.11ax/n/b/g |
Frequency |
2.4GHz & 5GHz & 6GHz |
Data Rate |
6GHz: 2402Mbps (802.11ax, HE160) 5GHz: 2402Mbps (802.11ax, HE160) 2.4GHz: 861Mbps (802.11ax) |
Basic Functions |
MU-MIMO OFDMA 1024-QAM Beamforming AP Steering Band Steering |
Wireless Security |
WPA2-PSK WPA3-SAE/WAP2-PSK |
SOFTWARE |
|
Internet Connection Type |
PPPoE, Dynamic IP, Static IP，PPPoE(Russia), PPTP(Russia), L2TP(Russia) |
Network Protocol |
IPv4&IPv6 |
Operating Mode |
Wireless Router Mode AP Mode |
DHCP |
DHCP Server DHCP Client List |
Access control |
Client Filter Parental Control |
Firewall |
ICMP Flood Attack Defense TCP Flood Attack Defense UDP Flood Attack Defense Ignore Ping Packet From WAN Port |
DDNS |
Support DynDNS, No-ip |
Special Features |
Speed Test Monthly Report |
Features |
IPTV IPv6 Bandwidth Control Guest Network‑ Static Routing System Log Remote Web Management MAC Clone Backup & Restore Configurations Support Automatic Access Detection Firmware Upgrade Online |
OTHERS |
|
Temperature |
Operating Temperature:0℃ ~ 40℃ Storage Temperature : -40C ~70℃ |
Humidity |
Operating Humidity : 10 %~90% RH non-condensing Storage Humidity : 5 %~ 90%RH non-condensing |
Certification |
CE, RoHS, FCC |
Admin Page |
Default Access Address: tendawifi.com or http://192.168.0.1 |
Package Content |

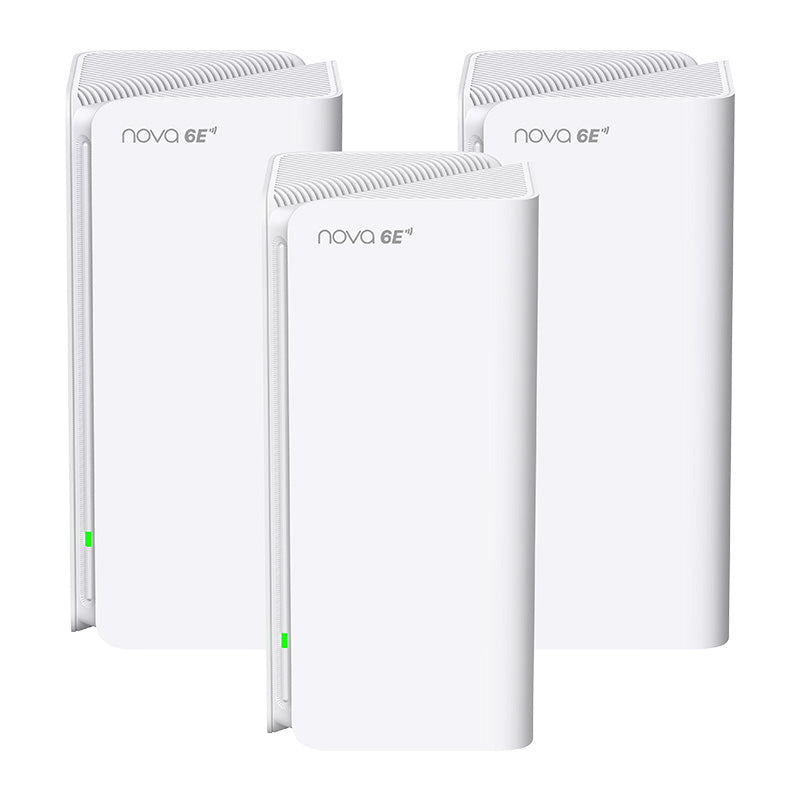

Mesh21XEP*3 Quick Installation Guide*1 Gigabit Ethernet Cable*1 12V/2.5A Power Adapter*3 |
