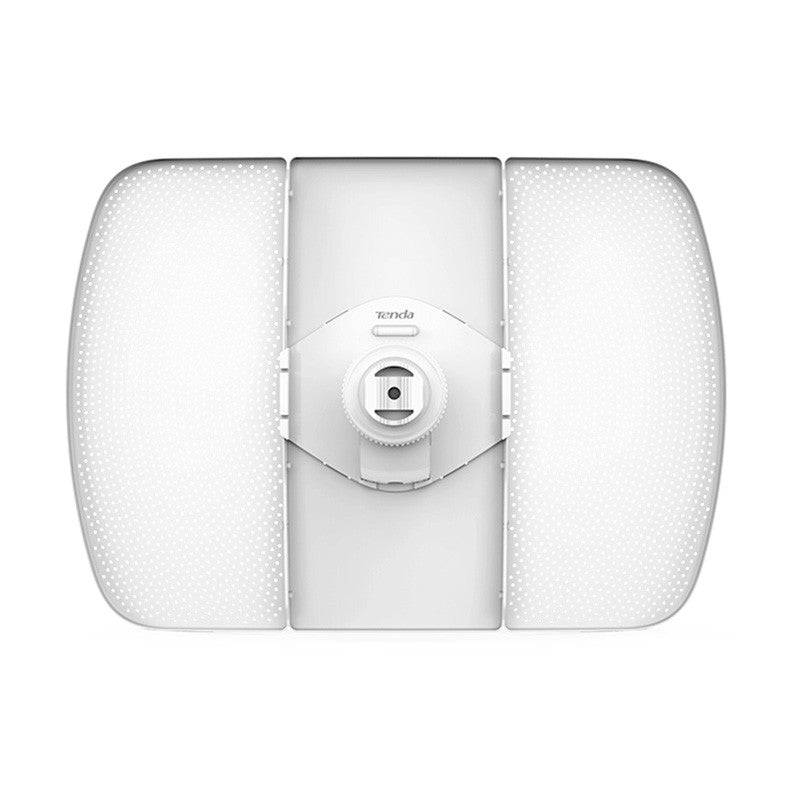

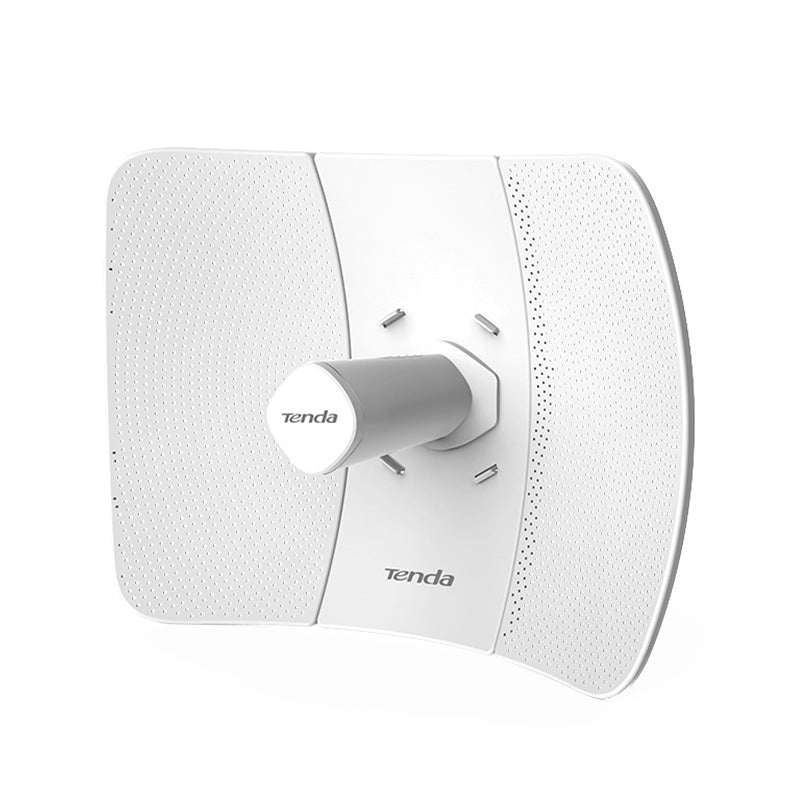

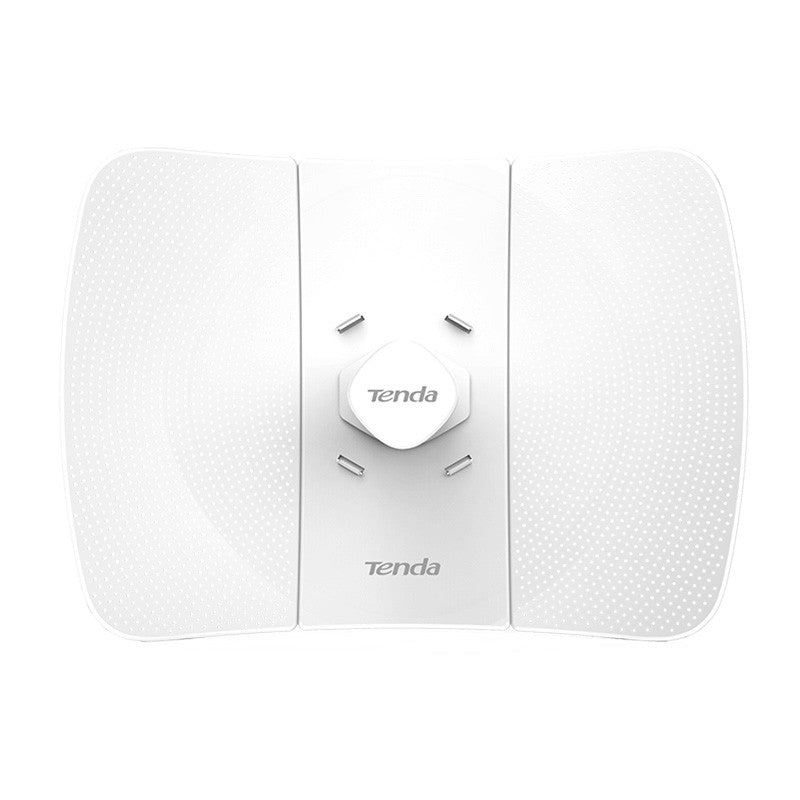

Tenda O8 5GHz 23dBi 11ac 433Mbps Outdoor CPE Antenna

Frequency Range

5GHz

Compliant Standards

IEEE 802.11a/n/ac

Maximum Wireless Rate

433Mbps

Interfaces

1*10/100Mbps Ethernet Port

Antenna

Vertical Polarization

Antennas Gain

23dBi

Antenna Beamwidth

Vertical: 10° Elevation: 10°

GND

/

Reset Button

1

Power Consumption

5.5W

Waterproof Level

IP65

LED Indicator

PoE/LAN,LED1,LED2,LED3

Power Method

12V1A Passive PoE

Lightning Protection

6000V

Passive PoE

Passive power over ethenet via PoE/LAN( 4,5pins,-7,8pins )

Voltage range: 9-35V DC

Reception Sensitivity

11a 6Mbps -95dBm±1.5dBm

11n MCS7 HT20 -72dBm±1.5dBm

11ac MCS9 HT80 -64dBm±1.5dBm

SOFTWARE

TDMA

Support

Operating mode

AP/Station/WISP/P2MP/WDS Repeater/Router

Enable/Disable Wireless Radio

Support

SSID Hidden

Support

Wireless Client isolation

Support

SSID Isolation

Support

Channel Bandwidth

20/40/80MHz

Channel Shift

Support

Wireless Access Control

Support

Weak Signal Client Limitation

Support

Transmission Power

Adjustable power by 1dBm

WMM Capable

Support

APSD Capable

Support

Wireless Security

64/128 WEP,WPA-PSK,WPA2-PSK,WPA

Transparent Bridge

Support

VLAN Tagging for SSID

Support

DHCP Server

Support

VPN Pass-Through

PPTP,L2TP

Remote Web access

Support

Schedule Reboot

Support

Page Timeout

Support

Ping Watchdog

Support

Dyndns

noip, dyndns.org

Network Diagnoses

Ping, Traceroute, Signal Scan

Time and Date Setting

Support

Firmware upgrade

Support

Backup/Restore Configuration

Support

Username Managerment

Support

System Logs

Support

Managed By Controller

PC Software -- CPE Assistant

OTHERS

Package Contents

1*5GHz 23dBi 11ac Outdoor CPE O8

1*Power Adapter

1*PoE Injector

1*Quick Installation Guide

Operation Temperature

-30℃ ~   60℃

Storage Temperature

-40℃ ~   70℃

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Default login IP

192.168.2.1

Default Login Username

admin

Default Login Password

admin

Certification

FCC/CE/RoHS
