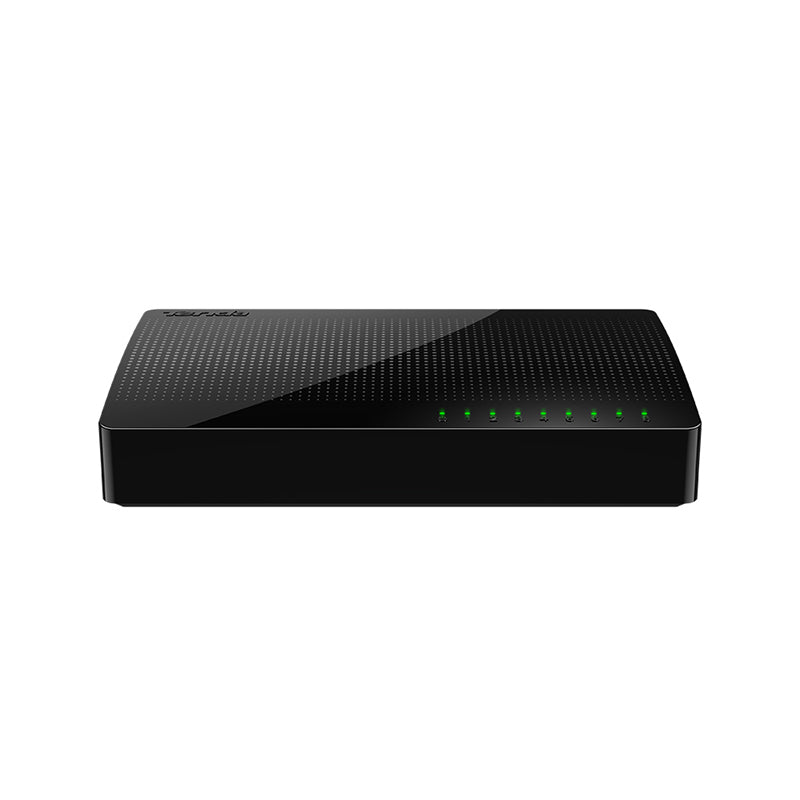

Tenda SG108 8-Port Gigabit Desktop Switch

Network standards

IEEE802.3、 IEEE802.3u、IEEE802.3x、   IEEE802.3ab

LED Indicator

1 * Power，8 * Link/Act

Interfaces

8*10/100/1000 Base-T   Ethernet ports(Auto MDI/MDIX)

Transmission media

Recommended: CAT5/5e   UTP or better

Fan quantity

N/A

Dimension

124.0mmx59.0mmx23.0mm

Material

Plastic

Level of protection

ESD:
  Air discharge: ±8kV
  Contact discharge: ±6kV

Forwarding mode

Store-and-forward

Switch capacity

16Gbps

Packet forwarding rate

12.00Mpps

Buffer

2Mb

MAC address table

4K

Jombo frame

9K

Power

Input: 100-240V AC   50/60Hz
  Output: 9V 0.6A (External power adapter)

Power consumption

Max:<4W

Mounting

Desktop mounting:   support
  Wall mounting: support
  Rack mounting:non-support

Environment

Operating temperature:   0°C - 45℃
  Storage temperature: -40°C - 70°C
  Operating humidity: (10% - 90%) RH, non-condensing
  Storage humidity: (5% - 90%) RH, non-condensing

Certification

CE, FCC, RoHS

Software

Protocols

CDMA/CD

MAC address learning

Auto-Learning and   Auto-Aging

Functions

plug-and-play
