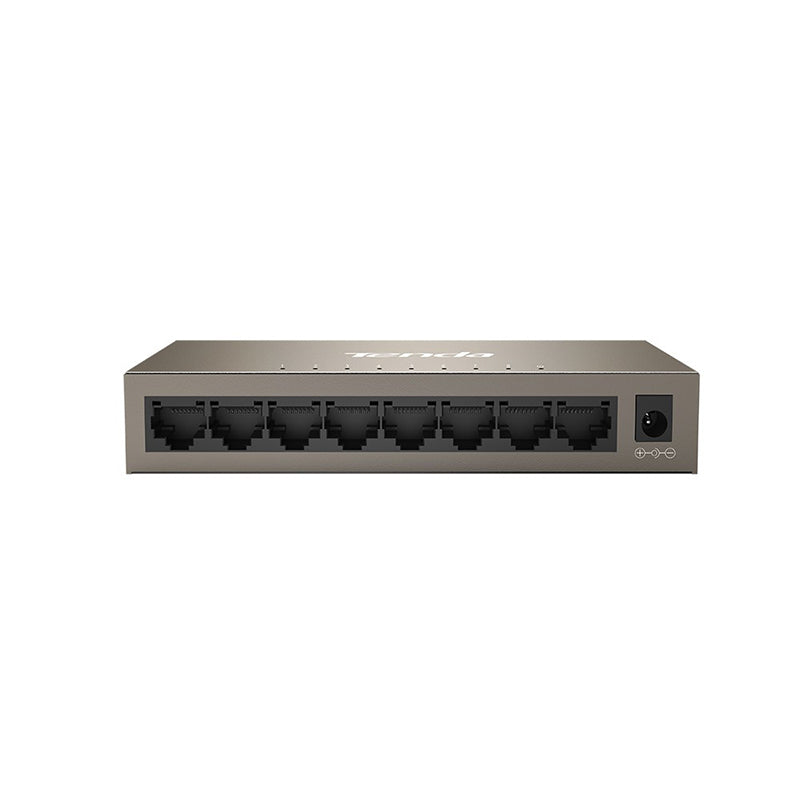

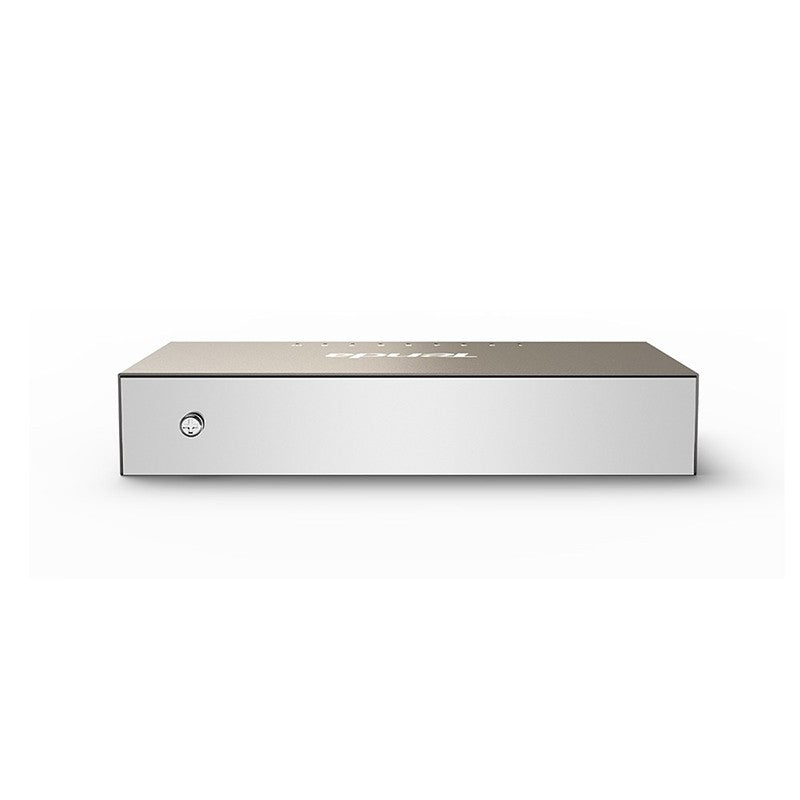

Tenda TEG1008M 8-port Gigabit Business Switch

Network standards

IEEE 802.3, IEEE   802.3u, IEEE 802.3x, IEEE 802.3ab

LED Indicator

1* Power, 8* Link/Act

Interfaces

8*10/100/1000 Base-T   Ethernet ports (Auto MDI/MDIX)

Transmission media

Recommended: CAT5/5e   UTP or better

Fan quantity

N/A

Dimension

140.0mm×66.5mm×25.3 mm

Material

Metal

Level of protection

ESD:
  Air discharge: ±8kV
  Contact discharge: ±6kV

Forwarding mode

Store-and-forward

Switch capacity

16Gbps

Packet forwarding rate

12.00Mpps

Buffer

192KB

MAC address table

4K

Jombo frame

N/A

Power

Input: AC:190-240V
  50/60Hz DC:9-12V

Power consumption

Max:<5W

Mounting

Desktop mounting:   support
  Wall mounting: support
  Rack mounting:non-support

Environment

Operating temperature:   0°C - 45℃
  Storage temperature: -40°C - 70°C
  Operating humidity: (10% - 90%) RH, non-condensing
  Storage humidity: (5% - 90%) RH, non-condensing

Certification

CE, FCC, RoHS

Software

Protocols

CDMA/CD

MAC address learning

Auto-Learning and   Auto-Aging

Functions

plug-and-play
