Hardware
|
|
|
Standard&Protocol
|
IEEE802.3, IEEE802.3u,IEEE802.3ab
|
|

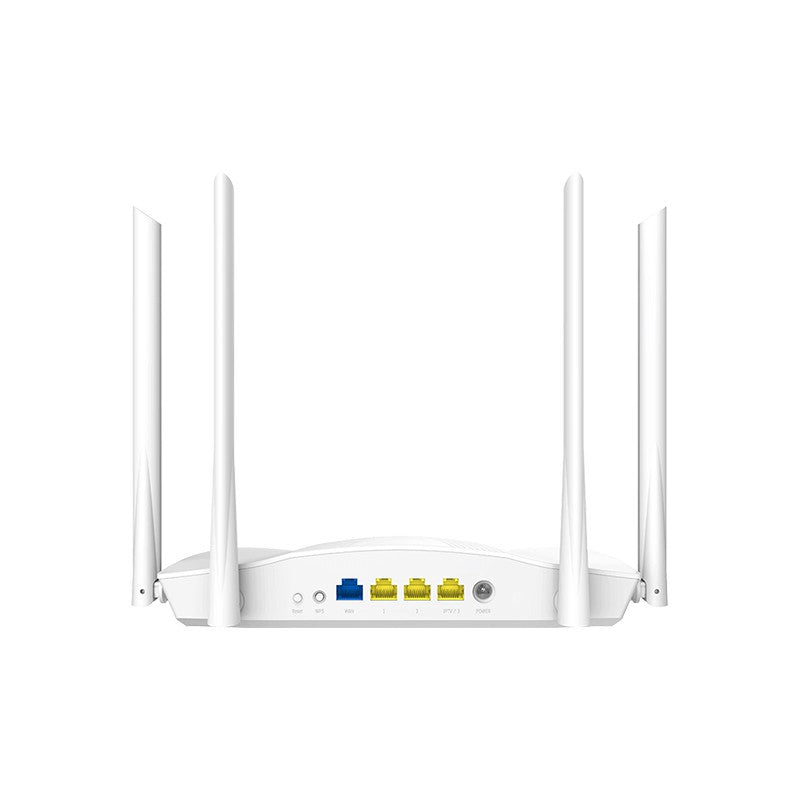

Interfaces
|
1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports
|
|
Antenna
|
4*6dBi external antennas
|
|
Button
|
1* WPS，1*Reset button
|
|
Power
|
Input：AC 100-240V~50/60Hz 0.4A
Output：DC 12V 1A
|
|
Dimension
|
9.35*6.03*1.77 in (237.6*153.1*45mm)
|
|
LED Indicator
|
SYS*1
|
|
Wireless
|
|
|
Wireless Standard
|
IEEE 802.11ac/a/n/ax 5GHz
IEEE 802.11b/g/n/ax 2.4GHz
|
|
Data Rate
|
5GHz: Up to 1201Mbps
2.4GHz: Up to 574Mbps
|
|
Frequency
|
Simultaneous dual band 2.4 & 5GHz
|
|
Transmission Power
|
CE:
<20dBm(2.4G)
<23dBm(5G)
|
|
Basic Features
|
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO
|
|
Wireless Security
|
WPA-PSK,WPA2-PSK, WPA/WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption
|
|
Software
|
|
|
Internet Connection Type
|
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia),Unifi,Maxis,Maxis-special,Manual
|
|
Operating Mode
|
Wireless Router Mode
Universal Repeater Mode
WISP Mode
|
|
DHCP Server
|
DHCP Server
DHCP Client List
DHCP Reservation
|
|
Virtual Server
|
Port Forwarding
DMZ Host
UPnP
|
|
Security
|
Client Filter
Parental Control(support black list and white list)
Remote Web Management
|
|
Firewall
|
Forbid UDP flood attack
Forbid TCP flood attack
Forbid ICMP attack
Forbid WAN PING from internet
|
|
DDNS
|
no-ip,Oray, 88ip,DynDNS
|
|
VPN
|
PPTP server
PPTP client
L2TP client
|
|
Special Features
|
Smart Traffic Prioritisation
PPPoE Username/password Clone
Smart WiFi Schedule
Smart LED on/off
Tenda Cloud
Tenda App
Alexa
|
|
Others
|
Bandwidth Control
Guest Network
IPTV
VLAN
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Supports IPv6
|
|
Others
|
|
|
Temperature
|
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.
|
|
Humidity
|
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.
|
|
Default Settings
|
Default Access: tendawifi.com
|
|
Certification
|
CE/FCC/RoHS
|
|
EIRP Power (Max)
|
2.400-2.4835GHz:19.86dBm (EIRP)
5.150-5.250GHz:22.96dBm (EIRP)
|
