Tenda TX9 AX3000 Dual Band Gigabit Wi-Fi 6 Router

Standard&Protocol

IEEE802.3, IEEE802.3u,IEEE802.3ab

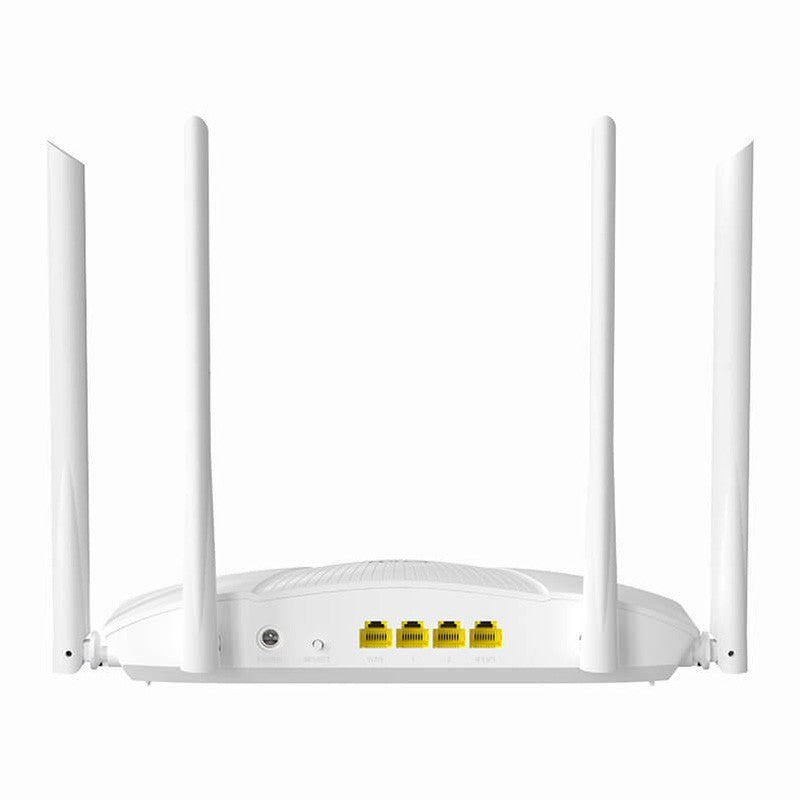

Interfaces

1*10/100/1000Mbps WAN port

3*10/100/1000Mbps LAN ports

Antenna

4*6dBi external antennas

Button

1* WP1*Reset button,

Power

Input：AC 100-240V~50/60Hz 0.6A

Output：DC 12V⎓1A

Dimension

272.44x162.85x43.71mm

LED Indicator

SYS*1

WIRELESS

Wireless Standard

IEEE 802.11ac/a/n/ax 5GHz

IEEE 802.11b/g/n/ax 2.4GHz

Data Rate

5GHz: Up to 2402Mbps

2.4GHz: Up to 574Mbps

Frequency

Simultaneous dual band 2.4 & 5GHz

Transmission Power

CE:

<20dBm(2.4G)

<23dBm(5G)

Basic Features

SSID Broadcast: Enable/Disable

Transmission Power: high, medium, low

Beamforming

MU-MIMO

Support signal strength adjustment

Wireless Security

WPA-PSK,WPA2-PSK, WPA/WPA2-PSK

WPA3-SAE/WPA2-PSK

Wireless Security: Enable/Disable

WPS(WiFi Protected Set-up) fast encryption

SOFTWARE

Internet Connection Type

PPPoE, Dynamic IP, Static IP

PPPoE(Russia), PPTP(Russia)

L2TP(Russia),Unifi,Maxis,Maxis-special,Manual

Operating Mode

Wireless Router Mode

Universal Repeater Mode

DHCP Server

DHCP Server

DHCP Client List

DHCP Reservation

Virtual Server

Port Forwarding

DMZ Host

UPnP

Security

Client Filter

Parental Control(support black list and white list)

Remote Web Management

Firewall

Forbid UDP flood attack

Forbid TCP flood attack

Forbid ICMP attack

Forbid WAN PING from internet

DDNS

Support DynDNS, No-ip

VPN

PPTP server

PPTP client

L2TP client

Special Features

WPA3

Dual-band

Wireless Signal Adjustment

Wi-Fi Timer Switch

Smart Power Saving

Panel LED Switch

Tenda App: Local and Remote Management

Others

Bandwidth Control

Guest Network

IPTV

VLAN

MAC Clone

Static Routing

System Log

Backup & Restore configurations

Firmware upgrade online

Firmware upgradeable via browser

Supports IPv6

OTHERS

Temperature

Operating Temperature : 0℃~40℃

Storage Temperature : -40C ~70℃

Humidity

Operating Humidity : 10 %~90% RH non-condensing

Storage Humidity : 5 %~ 90%RH non-condensing

Default Settings

Default Access: tendawifi.com

Certification

CE, RoHS, FCC

EIRP Power (Max)

2.400-2.4835 GHz:19.83dBm(EIRP)

5.150-5.250 GHz:22.98dBm(EIRP)

Package Contents

Wireless Router*1

Power Adapter *1

Install Guide*1

Ethernet Cable*1
