Tenda V12 AC1200 Dual-band Wi-Fi Gigabit VDSL/ADSL Modem Router

IEEE Standards

IEEE802.11b/g/n,IEEE802.11ac,   IEEE 802.3, 802.3u,IEEE 802.1Q

xDSL   Standard&Protocol

ITU G.993.2, Up to 17a   /30a/35b profile
  ITU-T G.993.5 (G.vector)
  ITU-T G.998.4 (G.INP)
  Full-rate ANSI T1.413 Issue 2
  ITU-T G.992.1(G.DMT)
  ITU-T G.992.2(G.Lite)
  ITU-T G.994.1 (G.hs)
  ITU-T G.992.3 (G.DMT.bis)
  ITU-T G.992.5

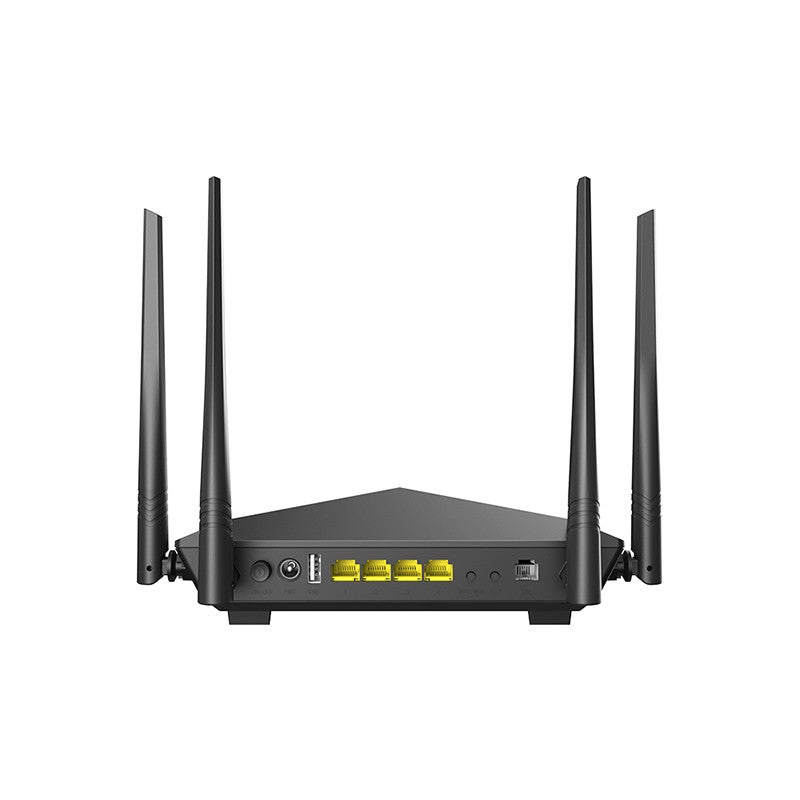

Interfaces

3 *10/100/1000 RJ45 LAN   Ports
  1 *10/100/1000 RJ45 LAN/WAN Port
  1 *RJ11 Port
  1 * USB 2.0 Port

Dimension

220x141.6x59mm(W * D *   H)

Button

WPS&Wi-Fi
  RST
  Power

External Power Supply

12V 1.5A

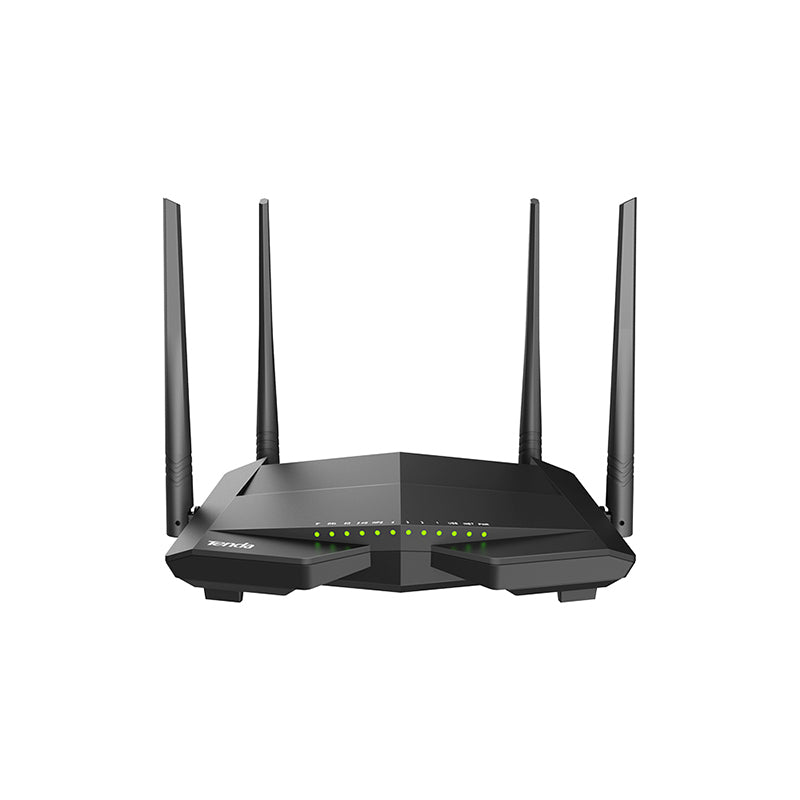

LED Indicator

Power
  Internet
  USB,LAN(1-4)
  WPS
  WLAN 2.4G
  WLAN 5G
  DSL

Certification

CE、RoHS

Software

Protocols

Supports IPv4 and IPv6

ATM/PPP Protocols

ATM Forum UNI3.1/4.0
  PPP over ATM (RFC 2364)
  PPP over Ethernet (RFC2516)
  IPoA (RFC1577/2225)
  MER\IPoE (RFC 1483 Routed)
  Bridge (RFC1483 Bridge)
  PVC – Up to 8 PVCs

WAN Connection

PPPoE
  Dynamic IP
  Static IP
  Bridge

Business Type

TR069
  Internet
  IPTV

Services

DDNS
  UPnP
  Samba
  FTP Server
  Port Forwarding
  DMZ
  IPTV

DHCP Server

DHCP Server
  Client List
  Address Reservation

Quality of Service

QoS Settings

Management

Web Based Con   guration(HTTP)
  Remote management
  command Line Interface
  SSL for TR-069
  SNMP v1/2c
  Web Based Firmware Upgrade
  Diagnostic Tools

Advanced Functions

Routing

Firewall

IP

TR069

ACS, Connection request

IPv6

Radvd config,DHCPv6   config

USB Sharing

Samba

Others functions

VPN
  ALG
  Ping Diagnostics
  System Log
  DSL Statistics

Wireless

Wireless Standard

IEEE 802.11a/n/ac 5GHz
  IEEE 802.11b/g/n 2.4GHz

Bandwidth

20M/40M/80M

Channel Range

2.4G:Auto,CH1-CH13
  5G: Auto,CH36-CH48

Antenna

4 * 5 dBi Antenna

Wireless Speed

300Mbps at 2.4GHz
  867Mbps at 5GHz

Transmission Power

2.4GHz <20dBm(EIRP)
  5GHz <23dBm(EIRP)

Wireless Functions

Enable/Disable Wireless   Radio
  Wireless Repeating
  Guest network
  Access Control
  WPS

Wireless Security

None, WPA,WPA2,WPA/WPA2

Environment

Storage Temperature

-40°c ~ 70°c

Operation Temperature

0℃~40℃ (32℉   ~104℉)

Operating Humidity

10% ~ 90% （Non-condensing）

Storage Humidity

5% ~ 90%   (Non-condensing)
