Description

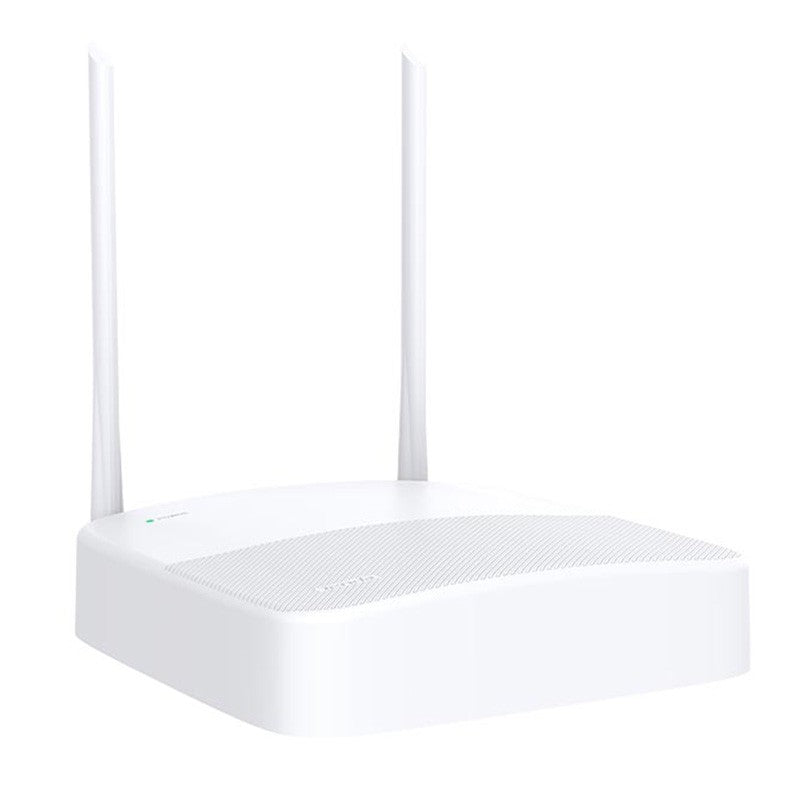

SPECIFICATIONS:
VIDEO AND AUDIO INPUT |
|
IP Video Input |
4-ch |
IP Video Resolution |
Up to 3MP |
Input Bandwidth |
60 Mbps |
Output Bandwidth |
60 Mbps |
HDMI Output |
1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
VGA Output |
1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
VIDEO AND AUDIO DECODING |
|
Video Decoding Format |
H.265, H.264 |
Audio Decoding Format |
G.711A |
Recording Resolution |
3MP, 1080p, UXGA, 720p, VGA, nHD, 4CIF, CIF |
Decoding Capability |
4-ch@1080p (30 fps) |
Stream Type |
Video, Video and Audio |
RECORDING MANAGEMENT |
|
Record Mode |
Normal, Alarm |
Playback Mode |
Instant, Channel, File, Tag |
Sync Playback |
Up to 4-ch |
Backup Mode |
USB device |
NETWORK MANAGEMENT |
|
Ethernet Port |
1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
Network Protocol |
TCP/IP, IPv4, RTSP, UDP, NTP, DHCP |
Mobile Client |
Supports iOS, Android |
WIRELESS SPECIFICATION |
|
Wireless Standard |
IEEE 802.11b/g/n |
Frequency |
2.4 GHz |
Antenna |
Dual external antennas |
Transmission Rate |
Up to 144 Mbps |
HDD STORAGE |
|
HDD Interface |
1 SATA 3.0 interface |
Capacity |
Up to 10 TB capacity for each HDD |
EXTERNAL INTERFACE |
|
USB Port |
1 x USB 2.0 |
GENERALS |
|
Power |
12 V DC, 2 A |
Dimension |
200 mm × 200 mm × 48 mm (7.9” × 7.9” × 1.9”) |
Weight (Without HDD) |
510 g (1.13lb) |
Certification |
CCC, SRRC, CE, FCC, RoHs |
Installation Method |
Desk mounting, wall mounting |
Temperature |
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature: -30°C ~ 70°C (-22°F ~ 158°F) |
Humidity |
Operating Humidity: 10% ~ 90% RH (non-condensing) Storage Humidity: 5% ~ 95% RH (non-condensing) |

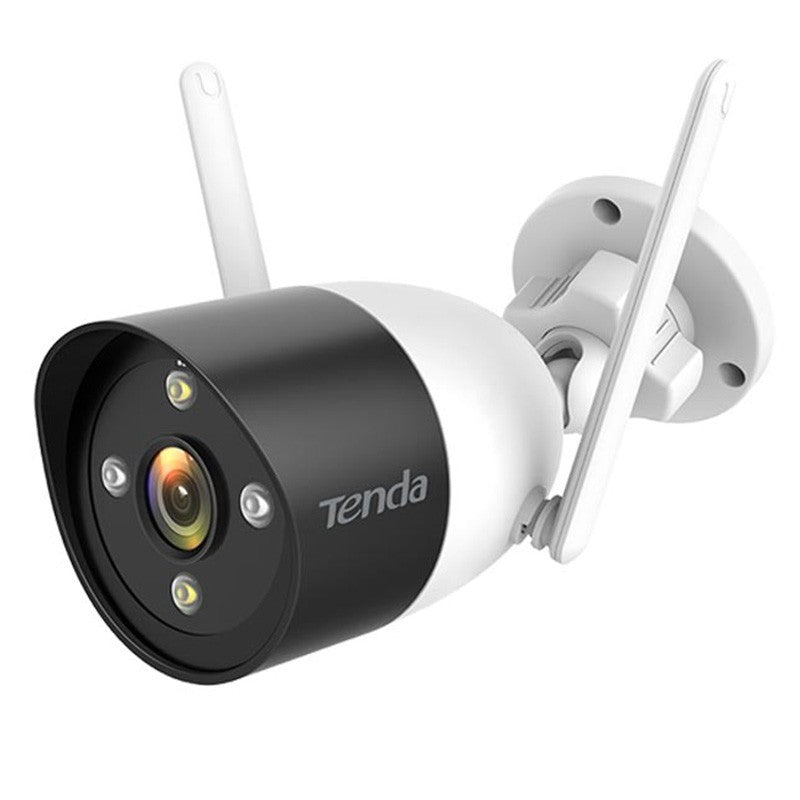

CAMERA |
|
Image Sensor |
1/2.7” CMOS sensor |
Max. Resolution |
2304 x 1296 |
Day and Night |
ICR type |
Digital Noise Reduction |
3D DNR |
Digital Wide Dynamic Range |
Support |
Backlight Compensation |
Support |
Supplementary Light |
2 IR lights, 2 spotlights |
Infrared Supplementary Light Distance |
30 meters (depending on environment) |
Night Vision Mode |
Smart Mode, Full Color Mode, Black and White Mode |
LENS SPECIFICATIONS |
|
Lens Type |
4 mm@F1.6 |
FOV |
Horizontal FOV: 86.1°, Vertical FOV: 46°, Diagonal FOV: 104° |
VIDEO SPECIFICATIONS |
|
Video Encoding Format |
H.265 |
Main Stream |
15fps (2304 ×1296, 1920 × 1080, 1280 × 720, 640 × 360) |
Sub Stream |
15fps (640 × 360, 352 × 288) |
AUDIO SPECIFICATIONS |
|
Audio Encoding Format |
G.711A |
Audio Sampling Rate |
8 kHz |
NETWORK MANAGEMENT |
|
Ethernet Port |
1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
WIRELESS SPECIFICATION |
|
Wireless Standard |
IEEE 802.11b/g/n |
Frequency |
2.4 GHz |
Transmission Rate |
Up to 144 Mbps |
Antenna |
Dual external antennas |
SMART ALARM |
|
Motion Detection |
Support |
S-motion Detection |
Support |
Sound and Light Alert |
Support |
EXTERNAL INTERFACE |
|
Audio Input |
Built-in MIC |
Audio Output |
Built-in speaker |
Button |
1 x Reset button |
LED Indicator |
1 x Dual colour (red and blue) LED indicator |
GENERAL |
|
Power |
12 V DC, 1 A |
Dimension |
175 mm x 72 mm x 72 mm (6.9” × 2.9” × 2.9”) |
Weight |
226 g (0.5lb) |
Protection Level |
IP66 |
Installation Method |
Wall mounting, ceiling mounting |
Certification |
CE, FCC, RoHs |
Temperature |
Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) |
Humidity |
Operating Humidity: 10% ~ 95% RH (non-condensing) Storage Humidity: 3% ~ 95% RH (non-condensing) |
KIT |
|
Dimension |
305 mm x 305 mm x 280 mm (12” × 12” × 11”) |
Weight |
3.1 kg (6.84lb) |
Package Contents |

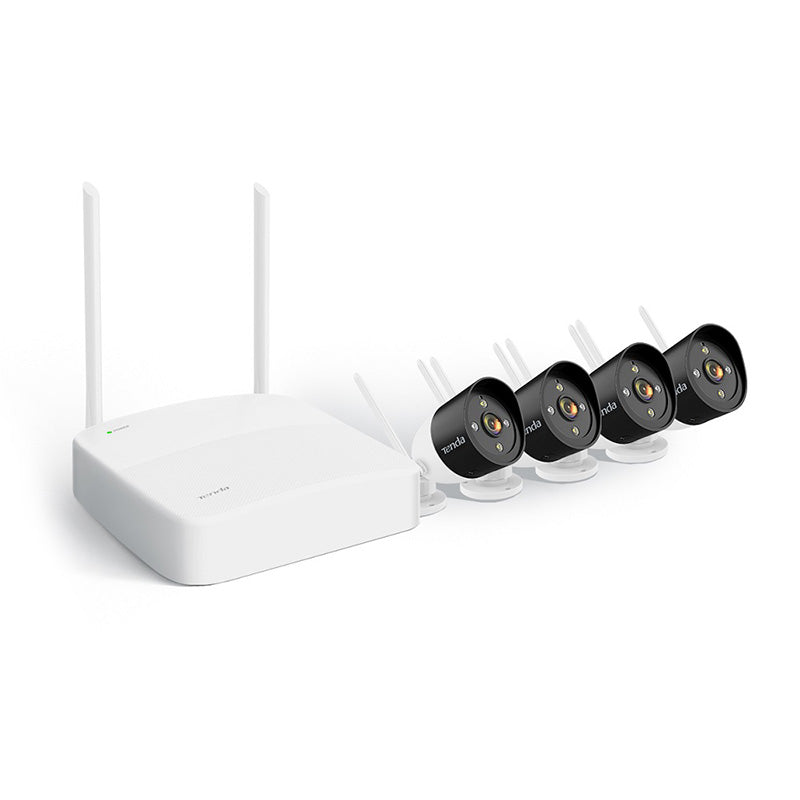

Wi-Fi Network Video Recorder x 1 Power adapter (12 V 2 A) x 1 Screw kit (Wi-Fi network video recorder) x 1 Mouse x 1 Quick installation guide x 1 Wi-Fi Cameras x 4 Power adapters (12 V 1 A) x 4 Screw kits (Wi-Fi camera) x 1 Installation templates x 4 Waterproof kits x 4 |
