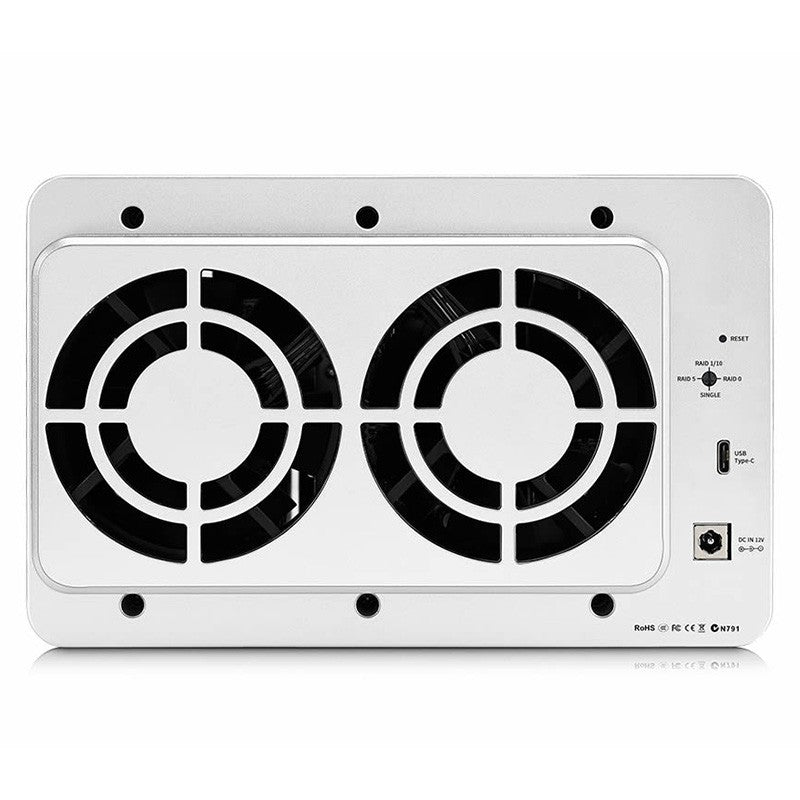

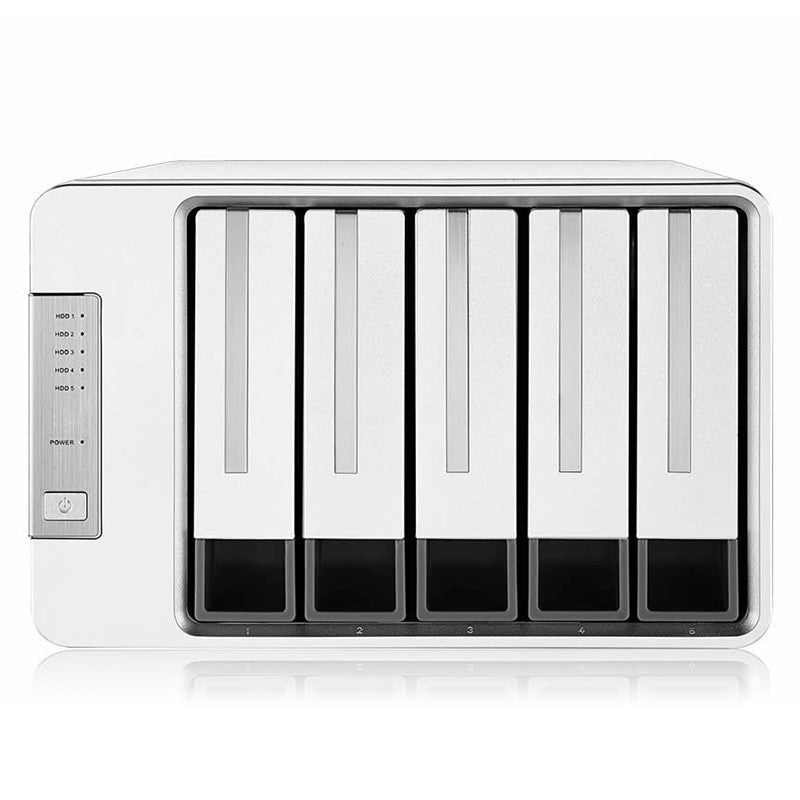

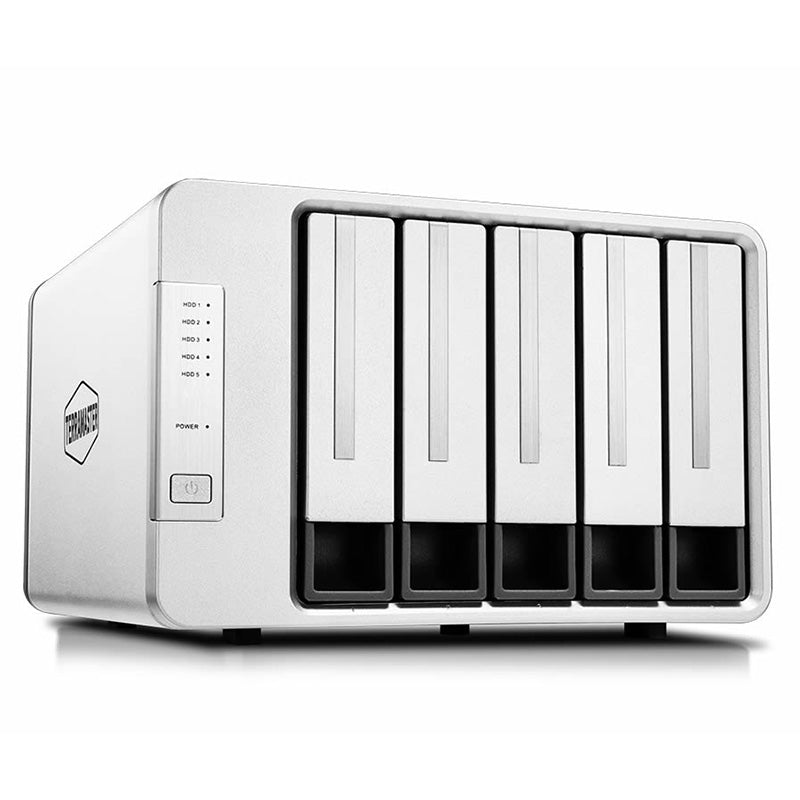

TerraMaster 5 Bay USB Hard Drive Array Enclosure

Disk Slot Number

5

Compatible Disk Types

3.5" SATA HDD

2.5" SATA SSD

RAIDs Supported（RAID hardware switch mode）

SINGLE DISK,RAID 0,RAID 1,RAID 5,RAID 10

RAID Expansion/Migration

/

RAID Hot Spare

√（The hard drives added in RAID 1/5/10 modes are the listed hot spare drives.）

Maximum Internal Raw Capacity

120TB(24 TB HDD x 5, RAID 0 Array)

Fan mode

PWM Smart Temperature Control

Hard Drive S.M.A.R.T.

√

TRIM

/

EXTERNAL PORTS

Data transmission interface

USB-C x 1

Data transmission cable

USB Cable  A to C

Hard Drive Format

NTFS,APFS,Mac OS,FAT32,EXT4,exFAT

Reading/writing Speed (max.)

Test conditions:
The test drives are 5 Western Digital 8TB WD80EFBX;
the test computer is a Mac mini with Apple M4 chip, running macOS 15.1.1;
the test software is AJA System Test Lite.

RAID5 Mode,Write: 231MB/s;Read: 248MB/s

RAID0 Mode,Write: 238MB/S;Read: 244MB/s

RAID10 Mode,Write: 241MB/s;Read: 248MB/s

RAID1 Mode,Write: 188MB/s;Read: 187MB/s

SINGLE Mode,Write: 188MB/s;Read: 187MB/s

OPERATING SYSTEM

Supported OS

Windows 7.8.10.11,Windows Server,Mac OS, Linux Ubuntu,KylinV10 SP1

RAID Manager Client

Supports Windows 7, 8, 10, 11, and Windows Server

Not supported on Mac OS, Linux Ubuntu, and Kylin V10 SP1.

APPEARANCE

Size (H*W*D)

227 x 225 x 136 mm

Weight

net weight: 2.16Kg Gross Weight: 3.64 Kg

Enclosure Material

Aluminum Alloy

POWER SUPPLY

AC Input Voltage

DC 12V (90W)

Current Frequency

 50/60 HZ, Single Phase

Power Consumption

45.5W (5 x 8TB Western Digital WD80EFBX hard drives in read/write state)

5.2W (5 x 8TB Western Digital WD80EFBX hard drives in hibernation)

Working Temperature

0°C  ~ 40°C (32°F ~ 104°F)

Relative Humidity

5% ~ 95%RH

Storage Temperature

-20°C ~ 60°C (-5°F ~ 140°F)

Certificate

CCC、CE、FCC、UL

ENVIRONMENTAL PROTECTION AND PACKAGING

Environment

RoHS compliance

Package Contents

Host unit (x1)

Quick Installation Guide (x1)

Power adapter (x1)

Power cord (x1)

USB Cable  A to C (0.8m x1)
