Description

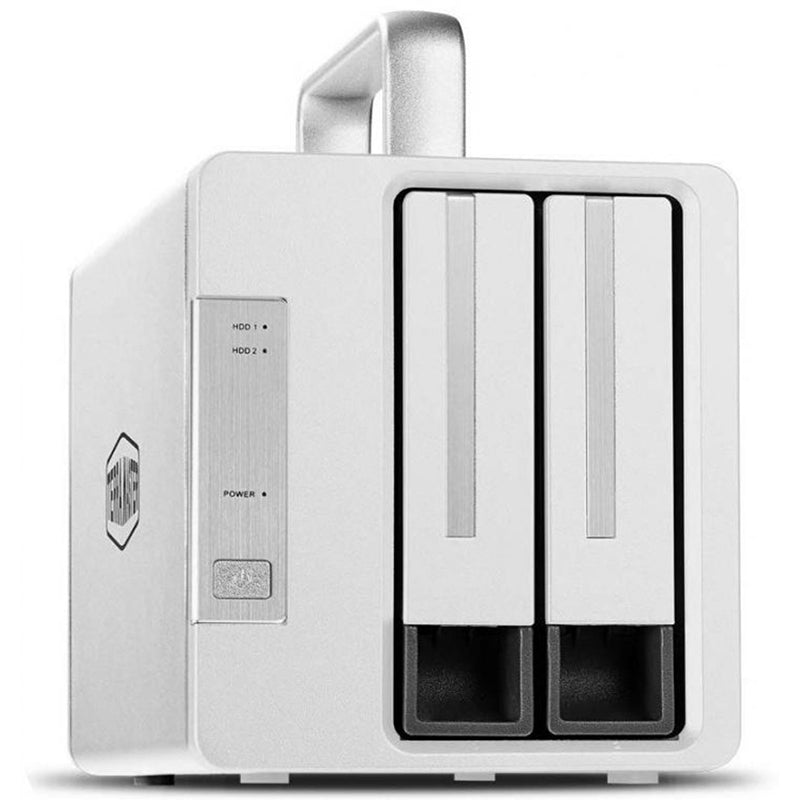

TerraMaster D2-330 2 Bay RAID Thunderbolt 3 Enclosure
SPECIFICATIONS:
| Storage | |
| Disk Slot Number | 2 |
| Compatible Disk Types | 3.5" SATA HDD |
| 2.5" SATA HDD | |
| 2.5" SATA SSD | |
| File System | FAT 32, FAT 16, NTFS, and EXT4 |
| Maximum Internal Raw Capacity | 28TB (14 TB drive x 2) (Capacity will vary along with the RAID type) |
| RAIDs Supported | SINGLE DISK,JBOD,RAID 0,RAID 1 |
| Hardware RAID | ? |
| RAID Manager Software | / |
| RAID Manager Software Language | / |
| RAID Online Expansion | / |
| RAID Migration | / |
| RAID Auto-rebuilding | ? |
| Drive Hot Swap | ? |
| HDD Sleep | ? |
| HDD S.M.A.R.T. Inspection | / |
| Sector Inspection and Parity Check | / |
| SSC Cache | / |
| Daisy Chain | / |
| HDD NCQ Technology | / |
| Alert Notice | / |
| Event Log | / |
| External Ports | |
| USB | / |
| Thunderbolt | 40Gb Thunderbolt 3 x 2 |
| DP Interface | DP 1.2 x 1 |
| Power Socket | DC IN 12V |
| Reading/writing Speed (max.) | |
| Reading Speed (max.) | Read: 760MB /sec , (Use SSD under RAID 0 mode) |
| Writing Speed (max.) | Write: 390MB /sec, (Use SSHD under RAID 0 mode) |
| Appearance | |
| Size (H*W*D) | 227 x 119 x 173 mm |
| Packaging Size (H*W*D) | 258*220*200 mm |
| Weight | Net Weight: 1.4Kg Gross Weight: 2.2Kg |
| Others | |
| System fan | 80 mm x 80 mm x25mm (x 1) |
| Fan mode | Smart |
| Noise Level | 18.6dB(A) |
| Power Supply | |
| Power Supply | 40W |
| AC Input Voltage | 100V - 240V AC |
| Current Frequency | 50/60 Hz, single frequency |
| Power Consumption | 25.6W |
| 2.0W (hard drive dormancy) | |
| Environment Temperature | |
| Working Temperature | 5°C ~ 40°C (40°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Supported OS | Windows OS?Mac OS |
| Warranty | 2 years |
| Certificate | CE, FCC, CCC, KC |
| Environment | RoHS compliance |
| Package Contents: | Host unit (x1) |
| Power cord (x1) | |
| Thunderbolt 3 cable (40Gbps) * 1 | |
| Quick Installation Guide (x1) | |
| Power adapter (x1) | |
| Screws (several) | |
| Limited Warranty Note x 1 |
