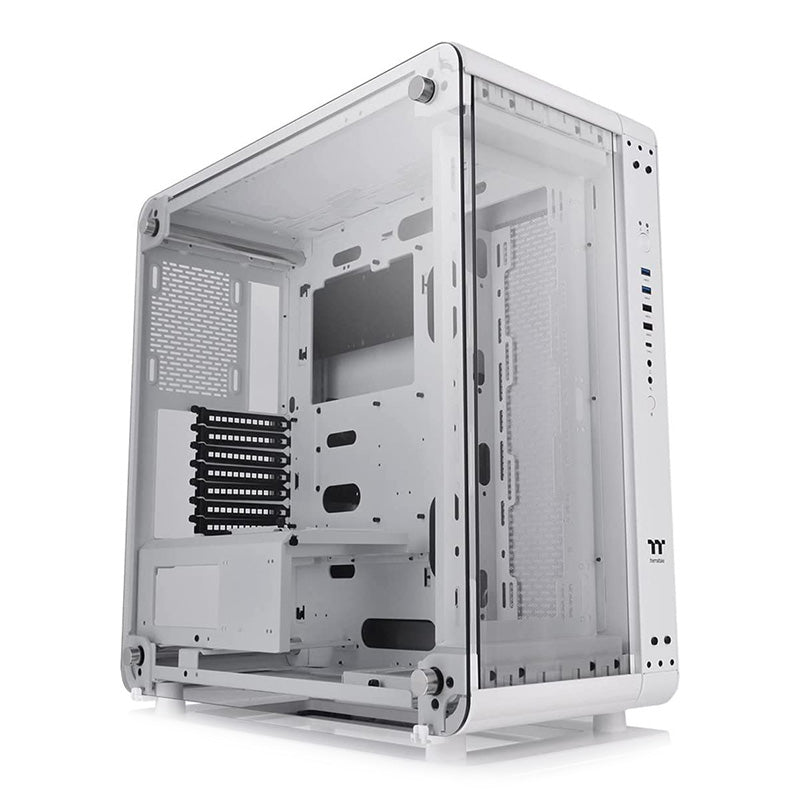

Thermaltake Core P6 Tempered Glass Mid Tower ATX Case Snow Edition

Model

Core P6 TG Snow

Case Type

Mid Tower

Dimension (H X W X D)

565 x 255 x 530mm

(22.2 x 10 x 20.9 inch)

Net Weight

17.84 kg / 39.33 lbs.

Side Panel

4mm Tempered Glass x 3

Colour

White

Material

SPCC

Cooling System

-

Drive Bays

-Accessible

-Hidden

4 x 3.5” or 8 x 2.5”

Expansion Slots

7 (Rotatable Patented Design)

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6”   (Micro ATX),

12” x 9.6” (ATX), 12” x 10.5”(CEB)

I/O Port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan Support

Front:

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Top:

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Rear:

1 x 120mm

Right (M/B Side):

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Bottom:

3 x 120mm, 2 x 120mm or 1 x 120mm

2 x 140mm, 1 x 140mm

Radiator Support

Front:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Top:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Rear:

1 x 120mm

Right (M/B Side):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Bottom:

1 x 240mm, 1 x 120mm

Clearance

CPU cooler height limitation:

180mm

VGA length limitation:

300mm (With Reservoir)

400mm (Without Reservoir)

430mm (With Radiator)

458mm (Without Radiator)

PSU length limitation:

200mm
