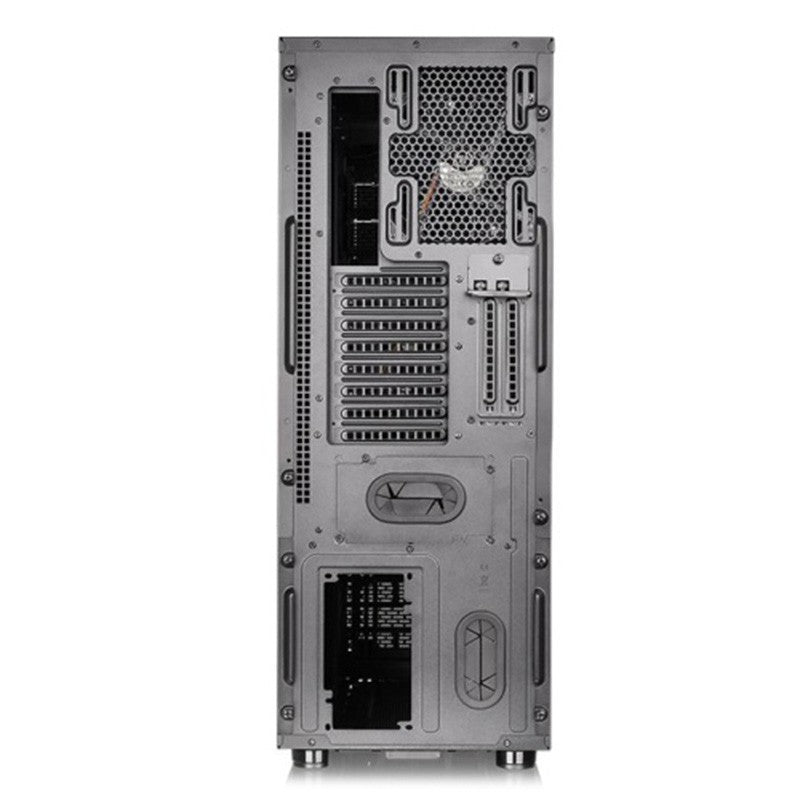

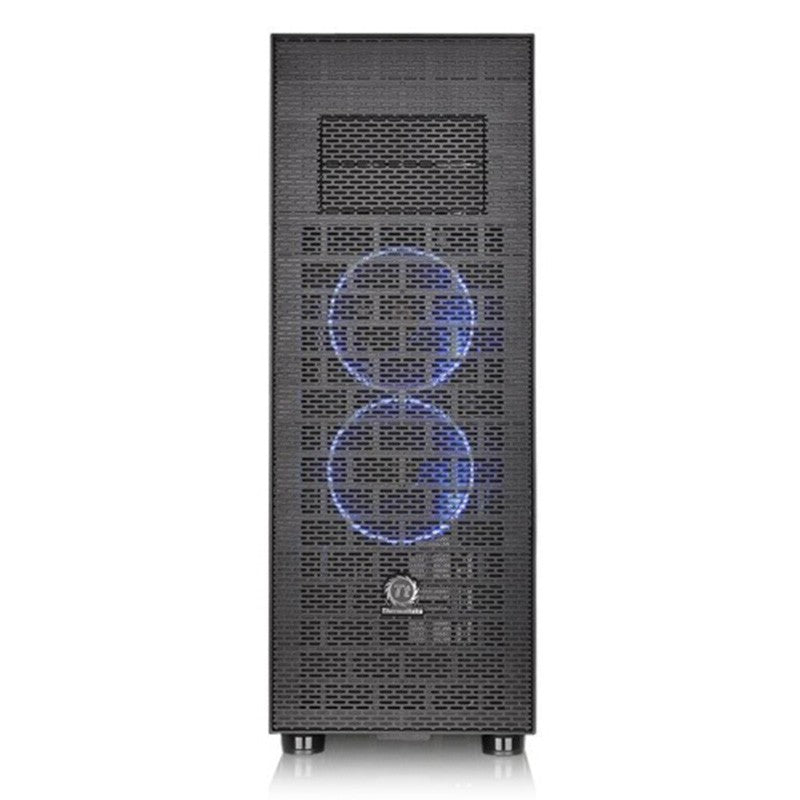

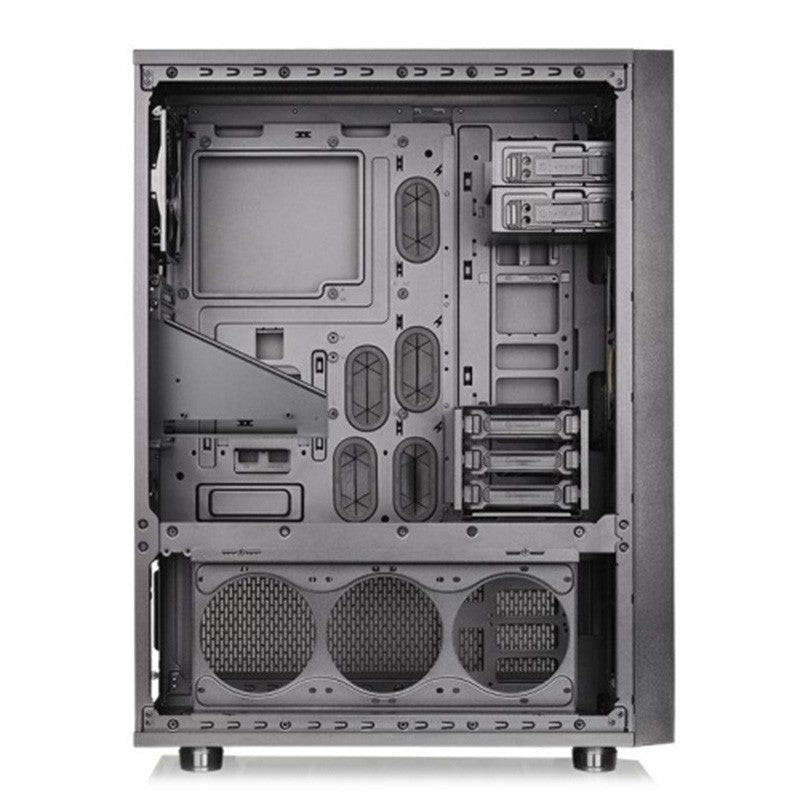

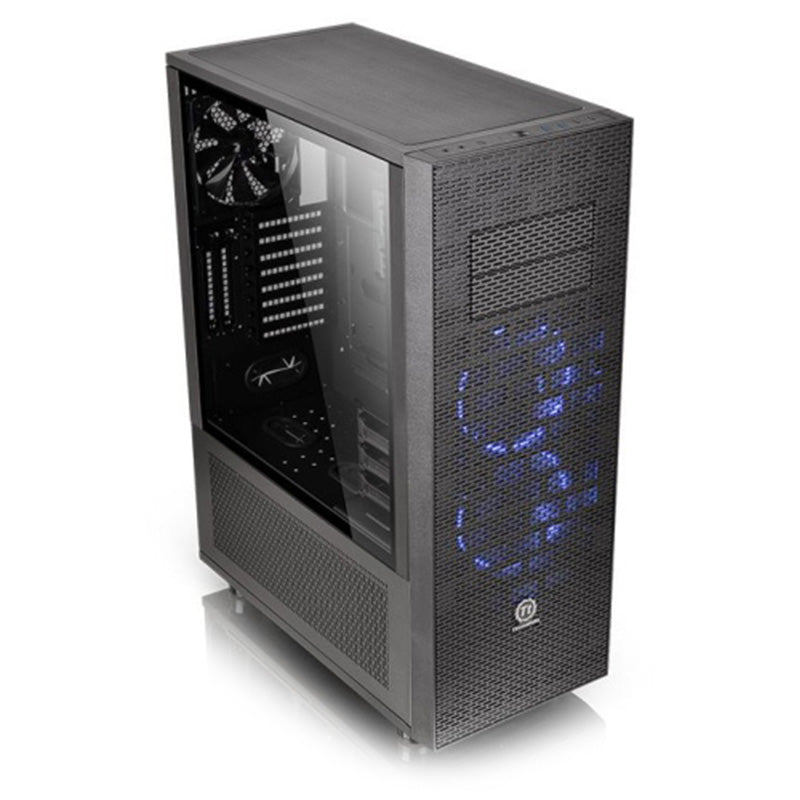

Thermaltake Core X71 Tempered Glass Edition Full Tower ATX Case

Model

Core X71 TG Edition

Case Type

Full Tower

Dimension (H x W x D)

677 x 250 x 511 mm

(26.7 x 9.8 x 20.1 inch)

Net Weight

12.7 kg / 27.9 lb

Panel

Tempered Glass (4mm thickness)

Color

Exterior & Interior : Black

Material

SPCC

Cooling System

Front (intake) :

140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 2

(1000rpm, 22dBA with LNC)

Rear (exhaust) :

140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA)

Drive Bays

-Accessible

-Hidden

2 x 5.25’’

3 x 3.5’’ or 2.5’’ (HDD Cage)

2 x 3.5’’ or 2.5’’ (Behind the M/B tray)

Expansion Slots

8 + 2

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

LCS Upgradable

Supports 1/2”?3/8”?1/4” water tube

I/O Port

USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan Support

Front:

3 x 120mm , 3 x 140mm , 2 x 200mm

Top:

3 x 120mm , 3 x 140mm , 2 x 200mm

Rear:

1 x 120mm , 1 x 140mm

Bottom:

2 x 120mm , 2 x 140mm

Left / Right Side:

3 x 120mm , 2 x 140mm

Radiator Support

Front:

1 x 480mm , 1 x 420mm

Top:

1 x 360mm , 1 x 280mm

Rear:

1 x 120mm , 1 x 140mm

Bottom:

1 x 120mm , 1 x 140mm

Left / Right Side:

1 x 360mm , 1 x 280mm

Clearance

CPU cooler height limitation:

180mm

VGA length limitation:

278mm(with HDD rack)

420mm(without HDD rack)

PSU length limitation:

180mm (With One Bottom Fan)

220mm (Without Bottom Fan)
