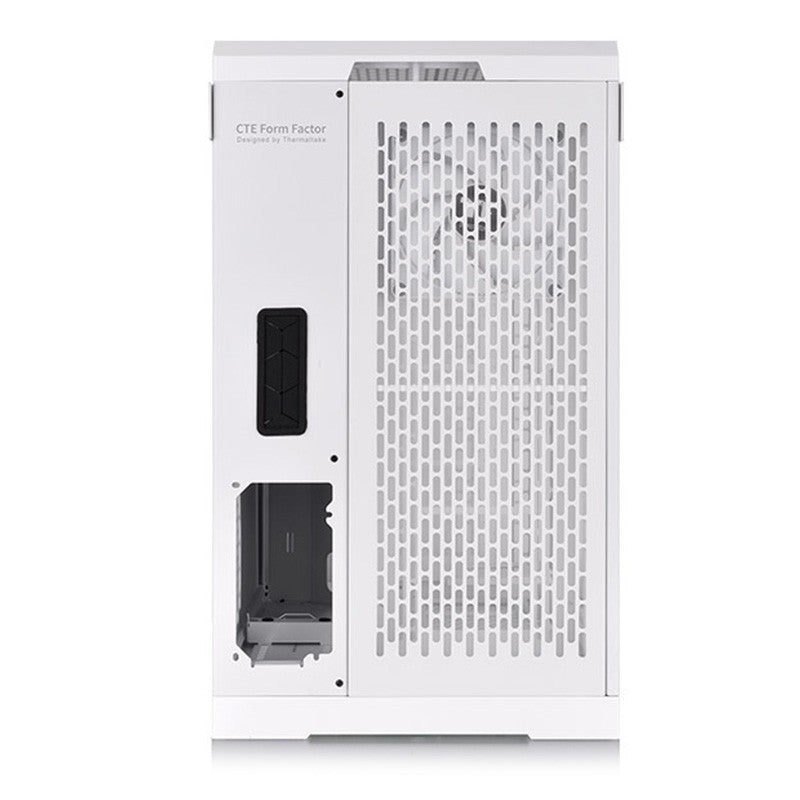

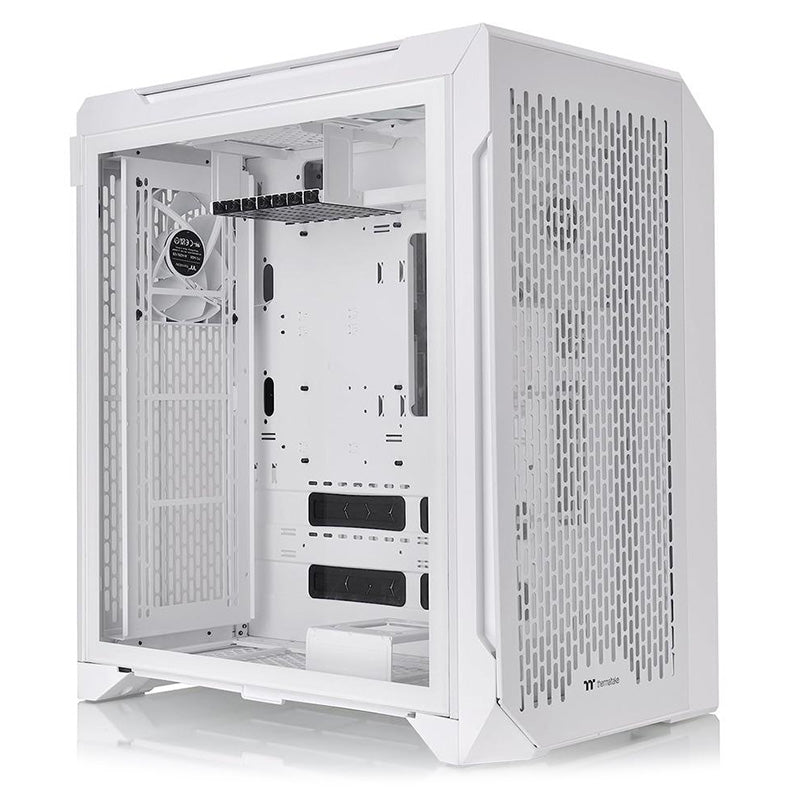

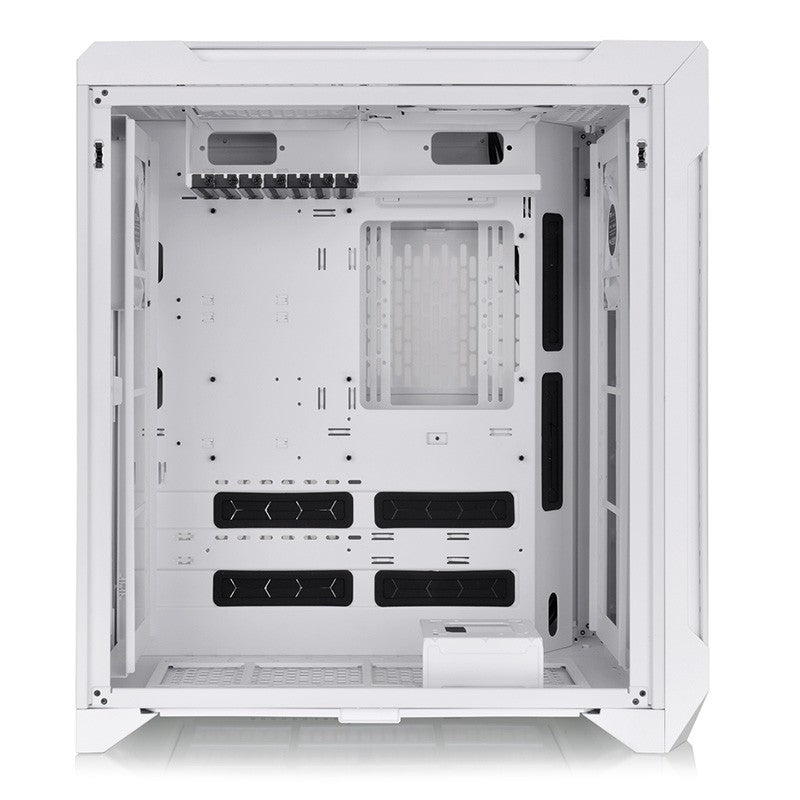

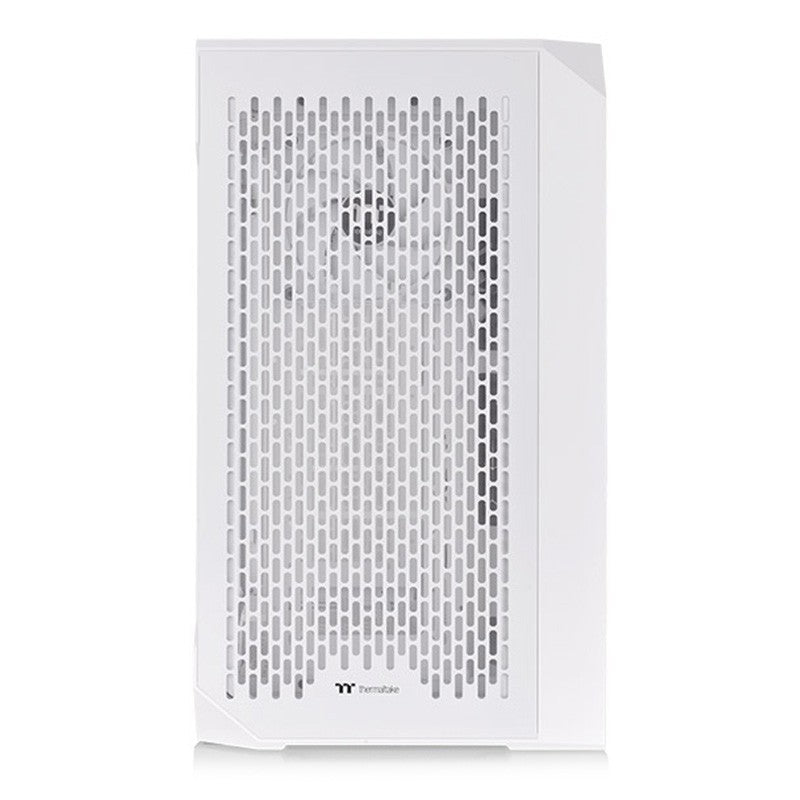

Thermaltake CTE C700 Air TG Mid Tower E-ATX Case - Snow

Dimension (H X W X D)

566.5 x 327.6 x 505.5 mm

(22.3 x 12.9 x 19.9 inch)

Net weight

15.8 kg / 34.83 lbs.

Panel

4mm Tempered Glass x 1

Colour

White

Material

SPCC / ABS

Cooling system

Front(intake):

140 x 140 x 25 mm CT140 white fan (1500rpm, 30.5 dBA) x 1

Top(exhaust):

140 x 140 x 25 mm CT140 white fan (1500rpm, 30.5 dBA) x 1

Rear(intake):

140 x 140 x 25 mm CT140 white fan (1500rpm, 30.5 dBA) x 1

Drive bays

7 x 3.5” or 6 x 2.5”

Expansion slots

7

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

12” x 9.6” (ATX), 12” x 13” (E-ATX)

I/O port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan support

Front:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

2 x 200mm, 1 x 200mm

Top:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right:

1 x 120mm, 1 x 140mm

Rear:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

Bottom:

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Radiator support

Front:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Rear:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Bottom:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Clearance

CPU cooler max height:

190mm

VGA max length:

327mm (With radiator)

410mm (Without radiator)

PSU max length:

220mm
