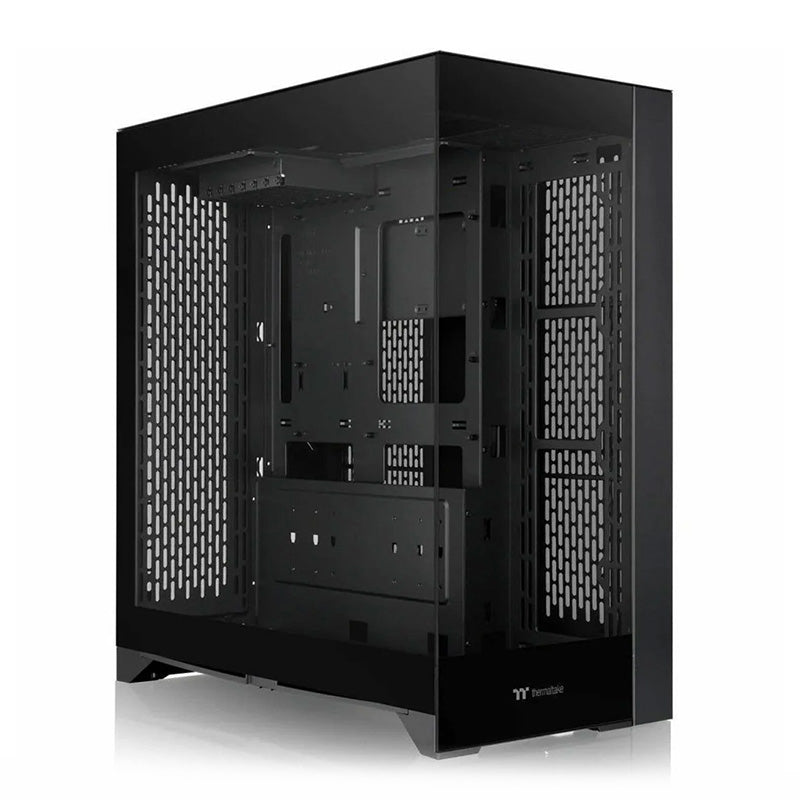

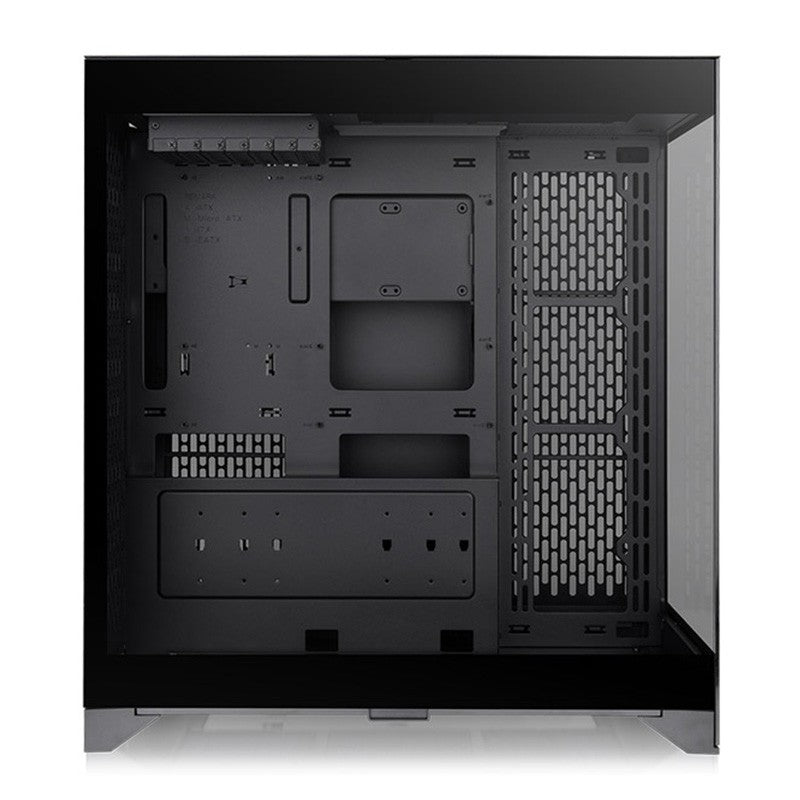

Thermaltake CTE E600 MX TG Mid Tower E-ATX Case - Black

Case type

Mid Tower

Dimension (H X W X D)

558.5 x 270 x 513mm

(21.99 x 10.63 x 20.2 inch)

Net weight

16 kg / 35.27 lbs.

Panel

4mm Tempered Glass x 2

Color

Black

Material

SPCC

Expansion slots

7

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

12” x 9.6” (ATX), 12” x 10.5” (E-ATX)

I/O port

USB 3.0 x 2, Type-c x1, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan support

Front:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm ,2x 140mm, 1 x 140mm

Top:

2 x 120mm, 1 x 120mm

Right (M/B Side):

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm ,2x 140mm, 1 x 140mm

Rear:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm ,2x 140mm, 1 x 140mm

Bottom:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm ,2x 140mm, 1 x 140mm

Radiator support

Front:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

Top:

1 x 240mm, 1 x 120mm

Right (M/B Side):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

Rear:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

Bottom (DIY only):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

Clearance

CPU cooler max height:

166mm

VGA max length:

415mm (with radiator)

443.8mm (without radiator)

PSU max length:

220mm
