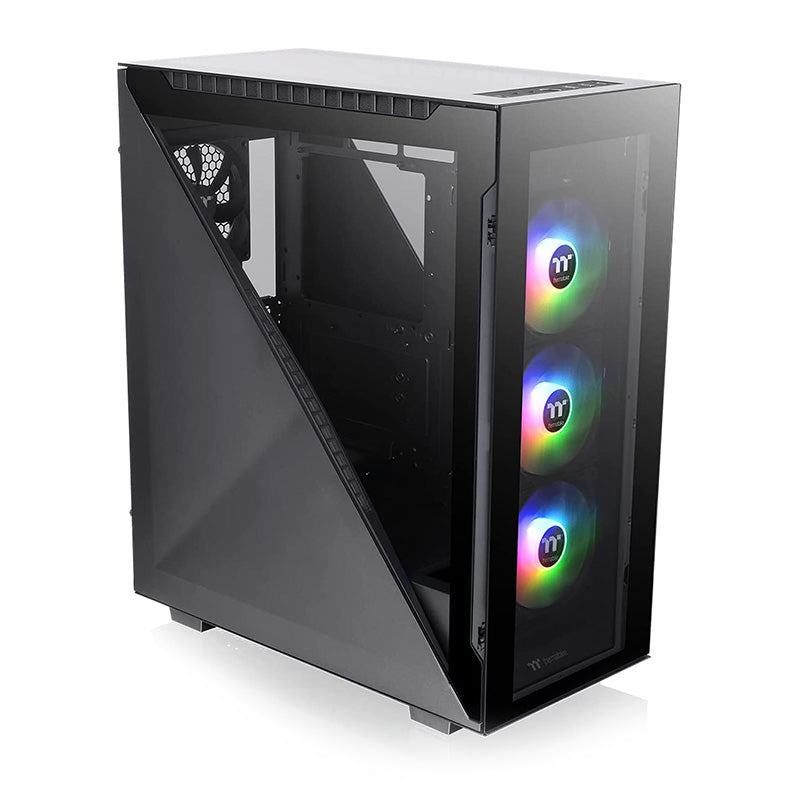

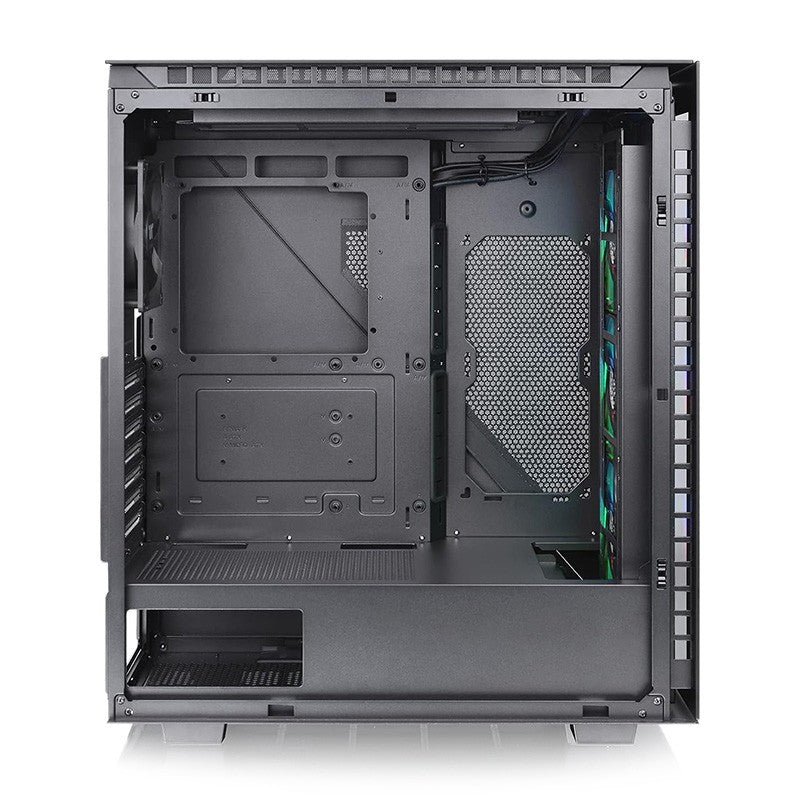

Thermaltake Divider 500 TG ARGB Mid Tower ATX Case - Black Edition

SERIES

Divider

MODEL

Divider 500 TG ARGB

CASE TYPE

Mid Tower

DIMENSION (H X W X D)

530 x 230 x 466 mm
  (20.9 x 9.1 x 18.3 inch)

NET WEIGHT

10.6 kg / 23.4 lbs.

SIDE PANEL

3mm Tempered Glass x 4

COLOR

Black

MATERIAL

SPCC

COOLING SYSTEM

Front(intake):
  120 x 120 x 25 mm ARGB fan (1000rpm, 27.2 dBA) x 3
  Rear(exhaust):
  120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1

DRIVE BAYS
  -ACCESSIBLE
  -HIDDEN

  2 x 3.5”, 5 x 2.5”
  or 7 x 2.5”

EXPANSION SLOTS

7 (Rotatable Patented Design)

MOTHERBOARDS

6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX),   12" x 9.6" (ATX)

I/O PORT

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

FAN SUPPORT

Front:
  3 x 120mm, 2 x 120mm, 1 x 120mm
  3 x 140mm, 2 x 140mm, 1 x 140mm
  Top:
  2 x 120mm, 1 x 120mm
  2 x 140mm, 1 x 140mm
  Right (M/B Side):
  2 x 120mm, 1 x 120mm
  Rear:
  1 x 120mm



RADIATOR SUPPORT

Front:
  1 x 360mm, 1 x 240mm, 1 x 120mm
  1 x 280mm, 1 x 140mm
  Top:
  1 x 280mm, 1 x 140mm
  1 x 240mm, 1 x 120mm
  Right
  (M/B Side): 1 x 240mm (vertical-installed GPU recommended),
  1 x 120mm
  Rear:
  1 x 120mm



CLEARANCE

CPU cooler max height:
  155mm (with one TG and one steel side panel)
  170mm (with two TG)
  VGA max length:
  360mm (with radiator)
  390mm (without radiator)
  PSU max length:
  180mm (with HDD Cage)
  220mm (without HDD Cage)
