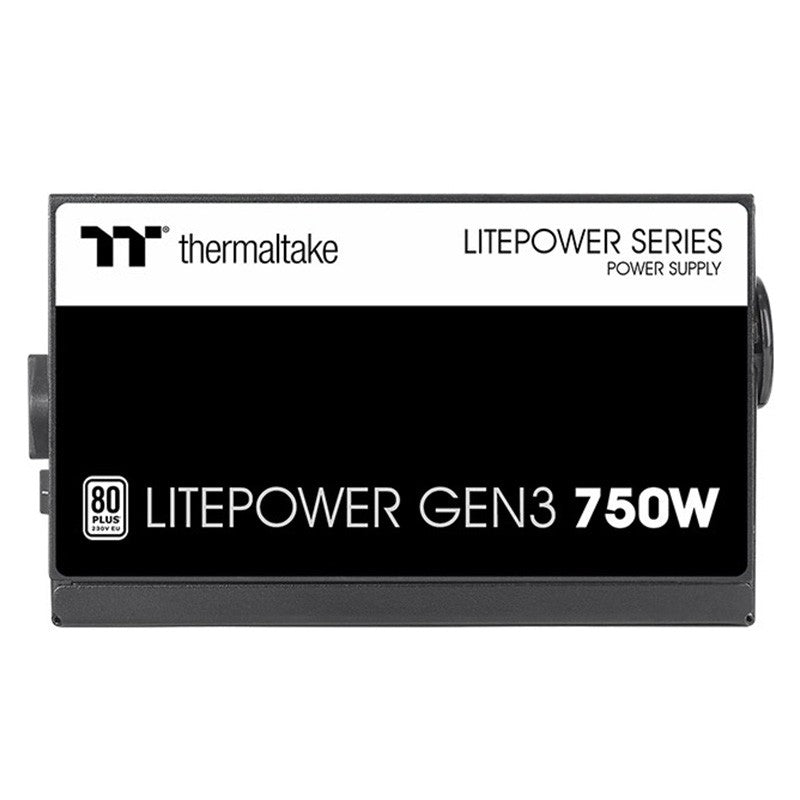

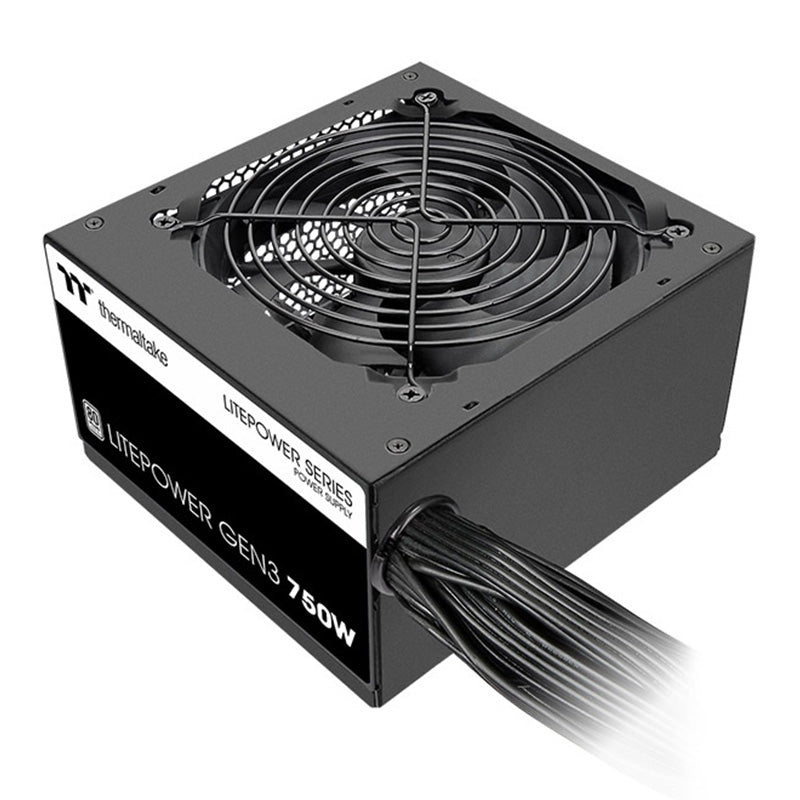

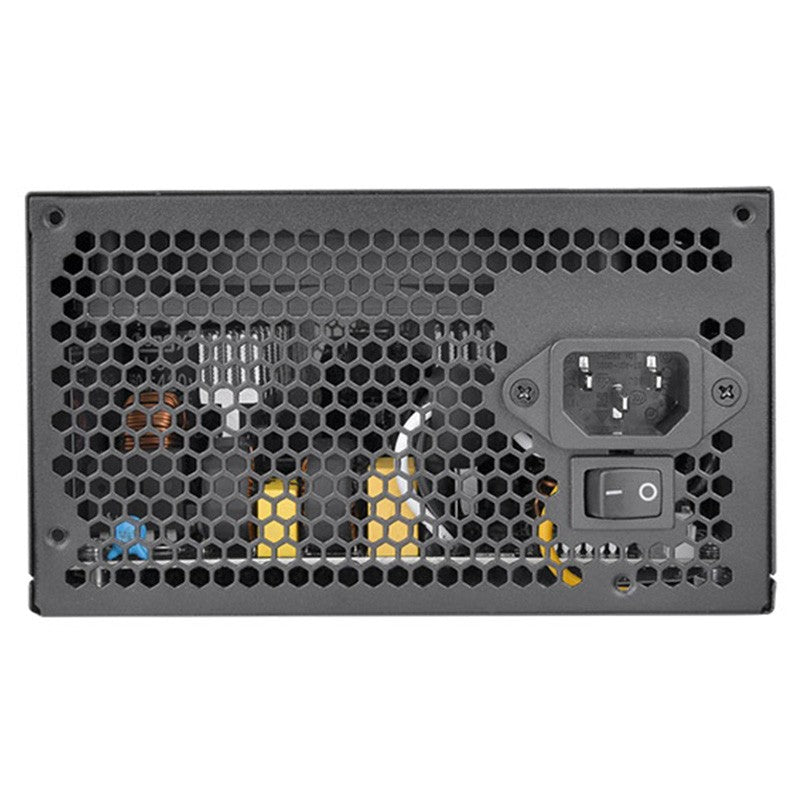

Thermaltake Litepower Gen3 750W 80+ 230V EU Non-Modular Power Supply

Model

TRS-750AH4NXW

Dimension ( W / H / D )

150mm(W)x86mm(H)x140mm(D)

PFC (Power Factor Correction)

Active PFC

Power good signal

100-150 msec

Hold up time

> 17msec at 80% load

Input current

8A Max.

Input frequency range

50Hz

Input voltage

200-240Vac

Operating temperature

5°C to + 40°C

Operating humidity

20% to 85%,non-condensing

Storage temperature

-40°C to + 55°C

Storage humidity

10% to 95%, non-condensing

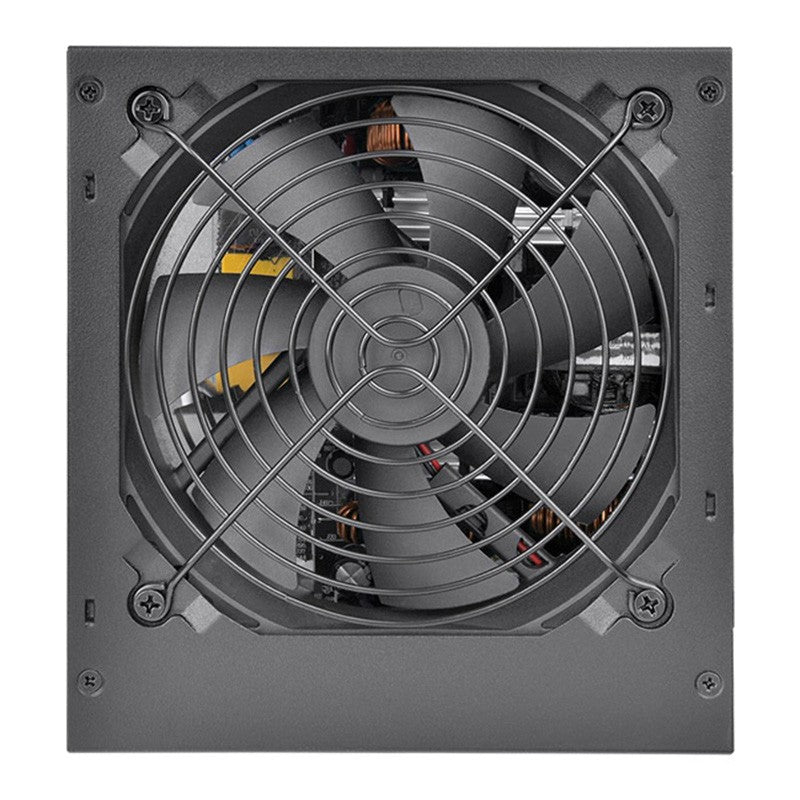

Cooling system

12cm Hydraulic Bearing Fan

Efficiency

80 PLUS® 230V EU Certified

MTBF

100,000 hrs minimum

Safety approval

FCC/ICES/CB/cTUVus

PCI-E 6+2PIN

2

Protection

OCP/OVP/OPP/OTP/UVP/SCP
