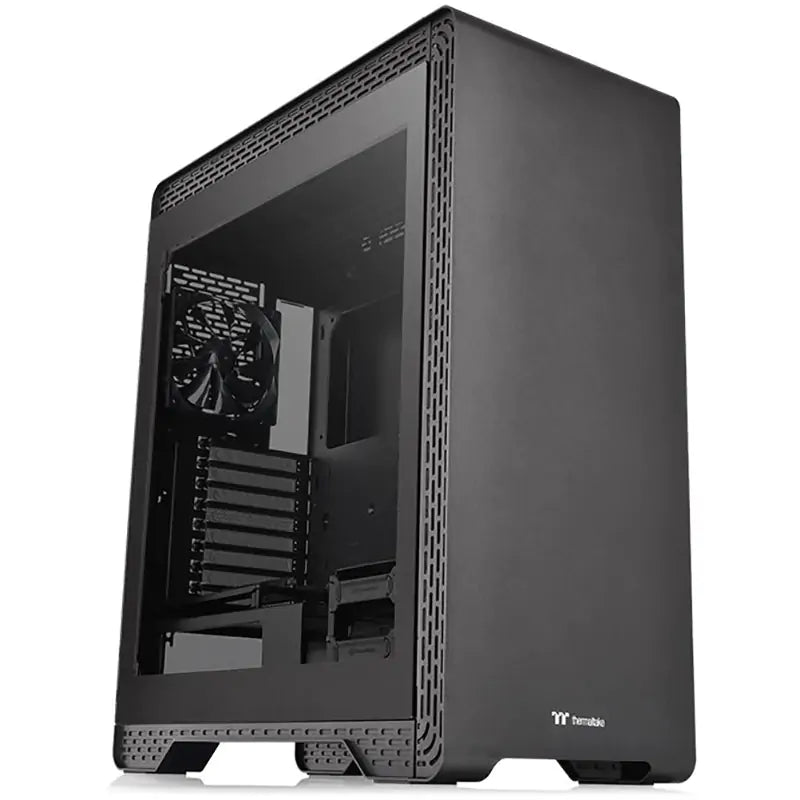

Thermaltake S500 Tempered Glass Mid Tower ATX Case

MODEL

S500 TG

CASE TYPE

Middle Tower

DIMENSION (H X W X D)

565 x 240 x 500 mm
    (22.2 x 9.4 x 19.7 inch)

NET WEIGHT

15.04 kg / 33.15 lbs.

SIDE PANEL

4mm Tempered Glass x 1(Left)

COLOR

Exterior & Interior : Black

MATERIAL

SPCC

COOLING SYSTEM

Rear   (exhaust) :
    120 x 120 x 25 mm fan
    (1000rpm, 16 dBA)
    Front (intake) :
    140 x 140 x 25 mm fan
    (1000rpm, 20dBA)

DRIVE BAYS
    -ACCESSIBLE
    -HIDDEN

    2.5” x 2 or 3.5”x 2 (HDD Rack)
    2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket)

EXPANSION   SLOTS

8

MOTHERBOARDS

6.7” x   6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O PORT

USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Reset Button x 1

PSU

Standard PS2 PSU (optional)

FAN SUPPORT

Front:
    3 x 120mm, 3 x 140mm, 2 x 200mm
    Top:
    3 x 120mm, 2 x 140mm, 2 x 200mm
    Rear:
    1 x 120mm

RADIATOR SUPPORT

Front:
    1 x 360mm, 1 x 420mm
    Top:
    1 x 280mm, 1 x 360mm
    Rear:
    1 x 120mm
    Right:
    1 x 360mm (Without HDD Rack)

CLEARANCE

CPU cooler height limitation: 172mm
  VGA length limitation: 282mm(With HDD Rack)
  400mm(Without HDD Rack)
  PSU length limitation: 220mm
