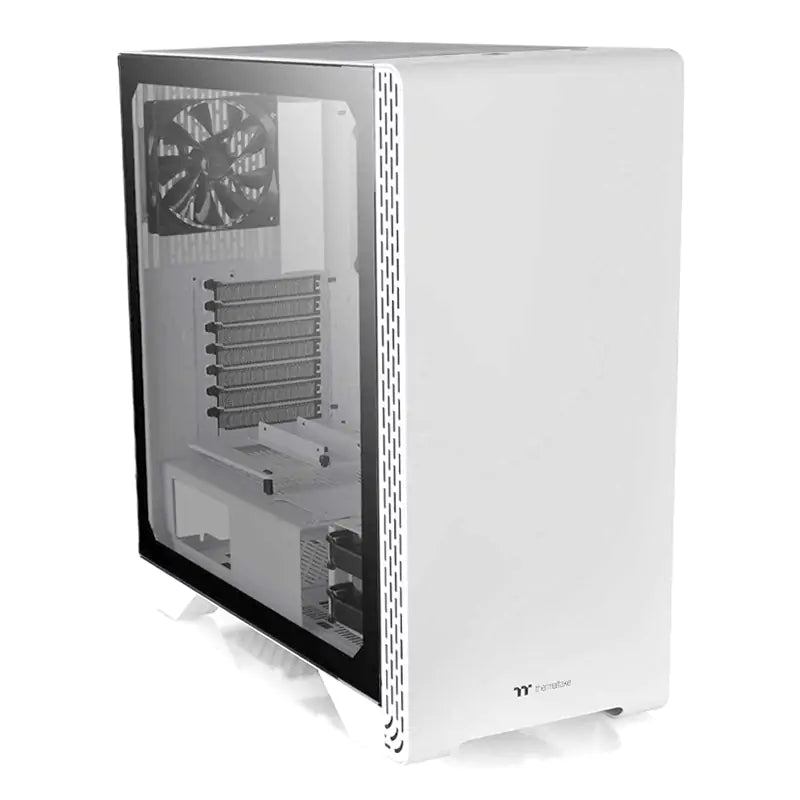

Thermaltake S500 Tempered Glass Mid Tower Case Snow Edition

Dimension (H X W X D)

565 x 240 x 500 mm
(22.2 x 9.4 x 19.7 inch)

Net weight

17.2 kg / 37.91 lbs.

Side panel

4mm Tempered Glass x 1(Left)

Color

Exterior & Interior : White

Material

SPCC

Cooling system

Rear (exhaust) :
120 x 120 x 25 mm fan
(1000rpm, 16 dBA)
Front (intake) :
140 x 140 x 25 mm fan
(1000rpm, 20dBA)

Drive bays
-Accessible
-Hidden

2.5” x 2 or 3.5”x 2 (HDD Rack)
2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket)

Expansion slots

8

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O port

USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Reset Button x 1

PSU

Standard PS2 PSU (optional)

Fan support

Front:
3 x 120mm, 3 x 140mm, 2 x 200mm
Top:
3 x 120mm, 2 x 140mm, 2 x 200mm
Rear:
1 x 120mm

Radiator support

Front:
1 x 360mm, 1 x 420mm
Top:
1 x 280mm, 1 x 360mm
Rear:
1 x 120mm
Right:
1 x 360mm (Without HDD Rack)

Clearance

CPU cooler height limitation: 172mm
VGA length limitation: 282mm(With HDD Rack)
  　　　　　　　　　   400mm(Without HDD Rack)
280mm(With reservoir)
PSU length limitation: 220mm
