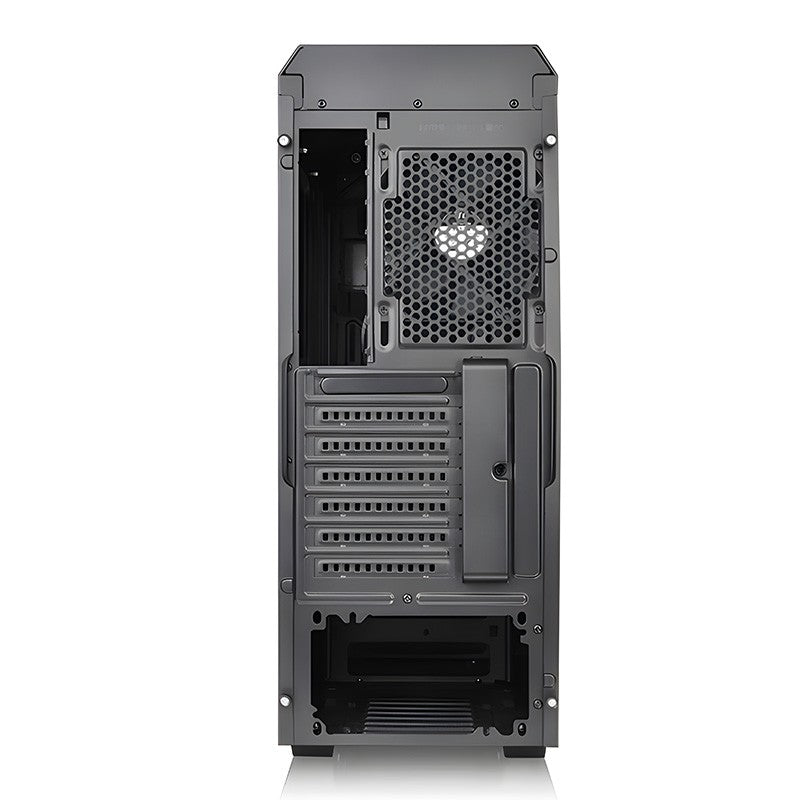

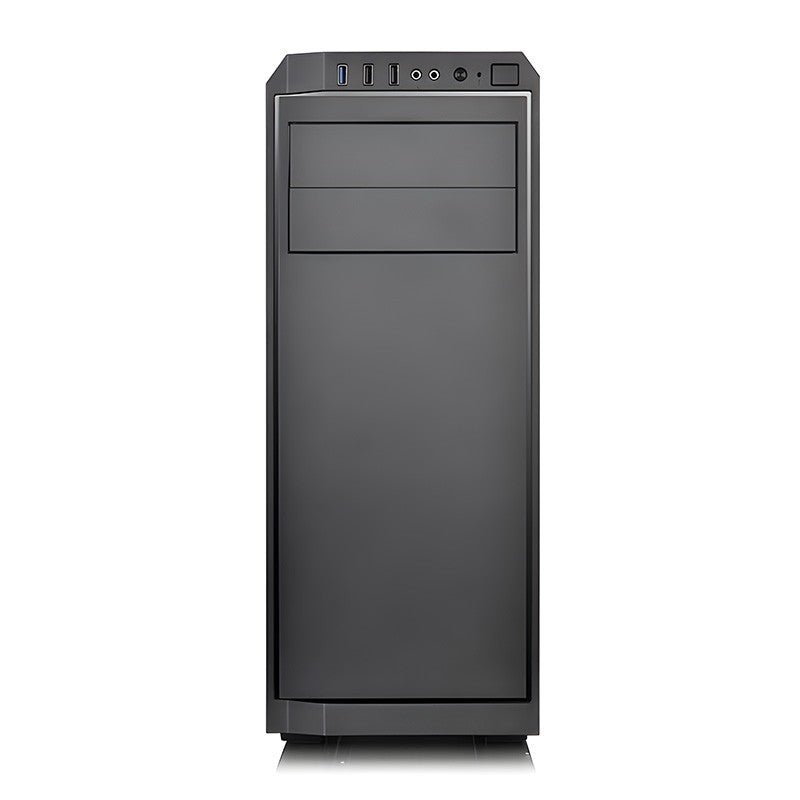

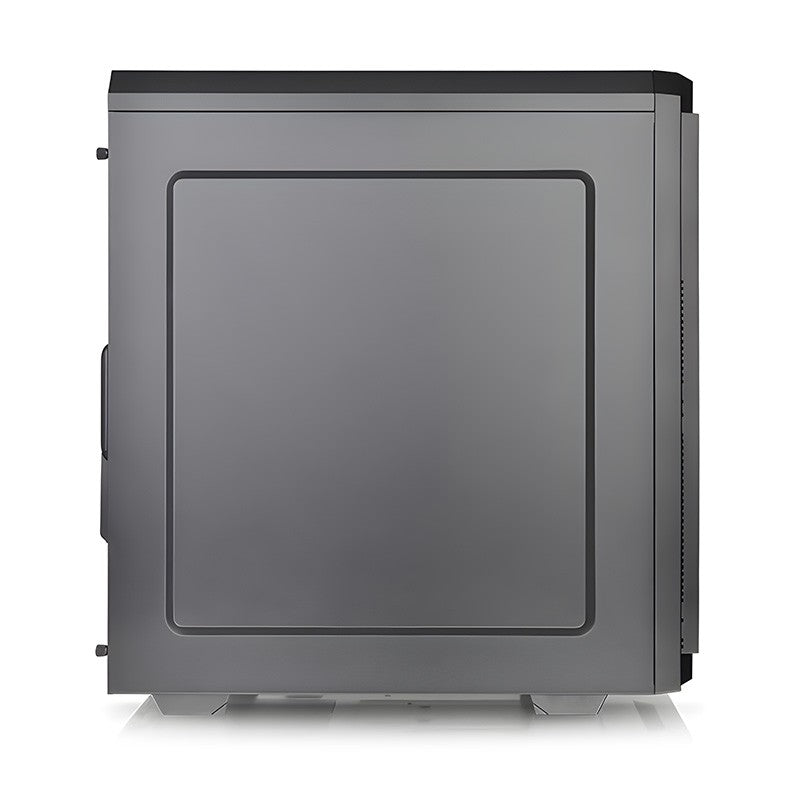

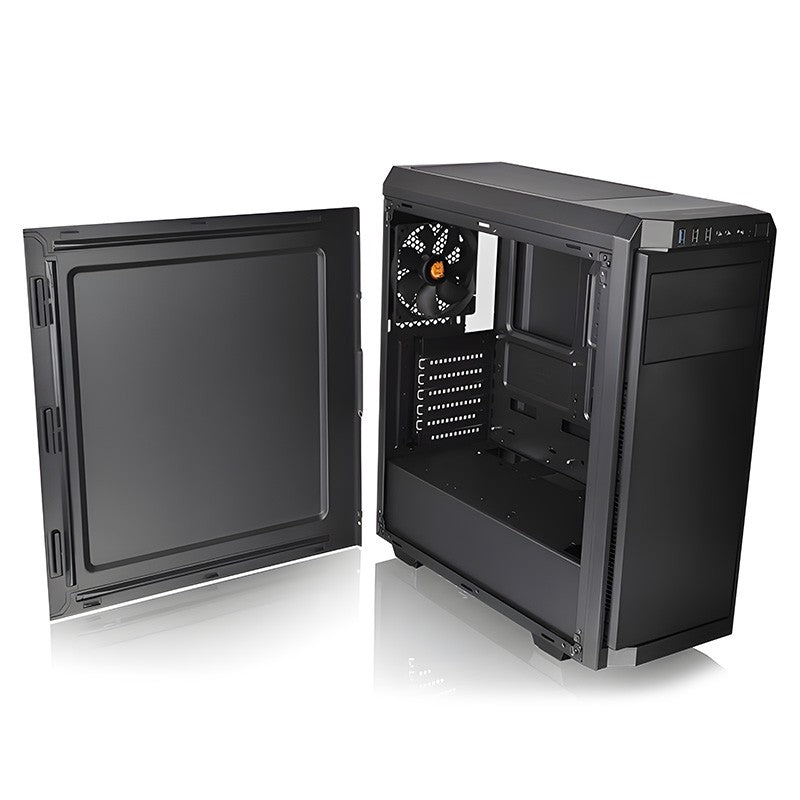

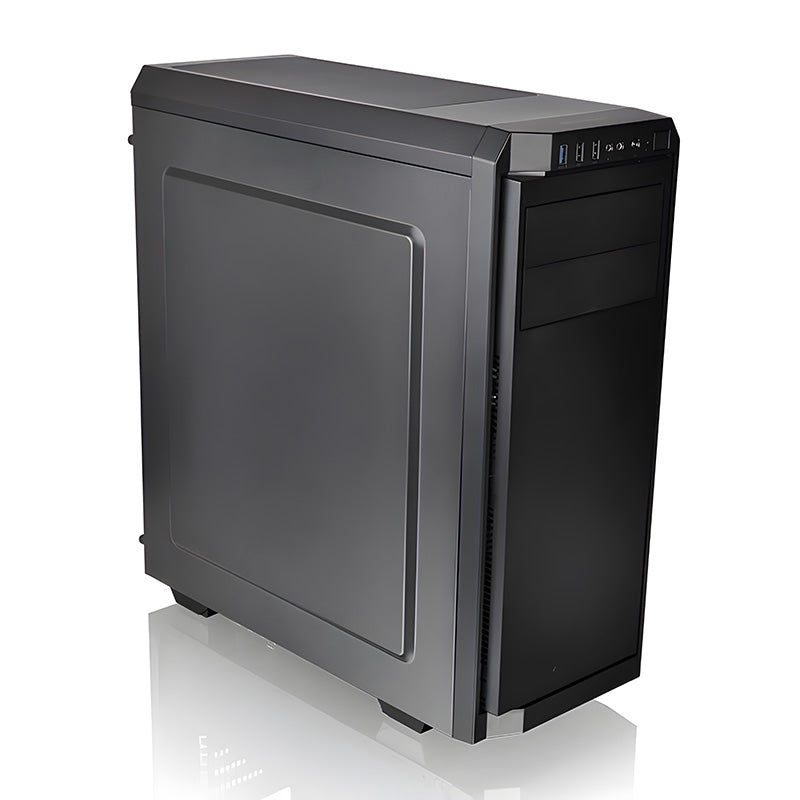

Thermaltake V100 Mid-Tower Chassis with 500W Power Supply

Case type

Middle tower

Dimension (H X W X D)

410 x 190 x 470 mm
(16.1 x 7.5 x 18.5 inch)

Net weight

5.0 kg / 11.02 lb

Side panel

No window

Colour

Exterior & Interior : Black

Material

SPCC

Cooling system

Rear (exhaust) :
120 x 120 x 25 mm fan (1000rpm, 16dBA)

Drive bays
-Accessible
-Hidden

5.25” x 2 ; 2.5” x 2
2 x 2.5“ or 3.5”(HDD Cage)

Expansion slots

7

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O port

USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1

PSU

500W

Fan support

Front:
3 x 120mm, 2 x 140mm
Top:
2 x 120mm, 2 x 140mm
Rear:
1 x 120mm

Radiator support

Front:
1 x 360mm, 1 x 280mm
Rear:
1 x 120mm

Clearance

CPU cooler height limitation: 160mm
VGA length limitation: 400mm
PSU length limitation: 170mm
