Description
-

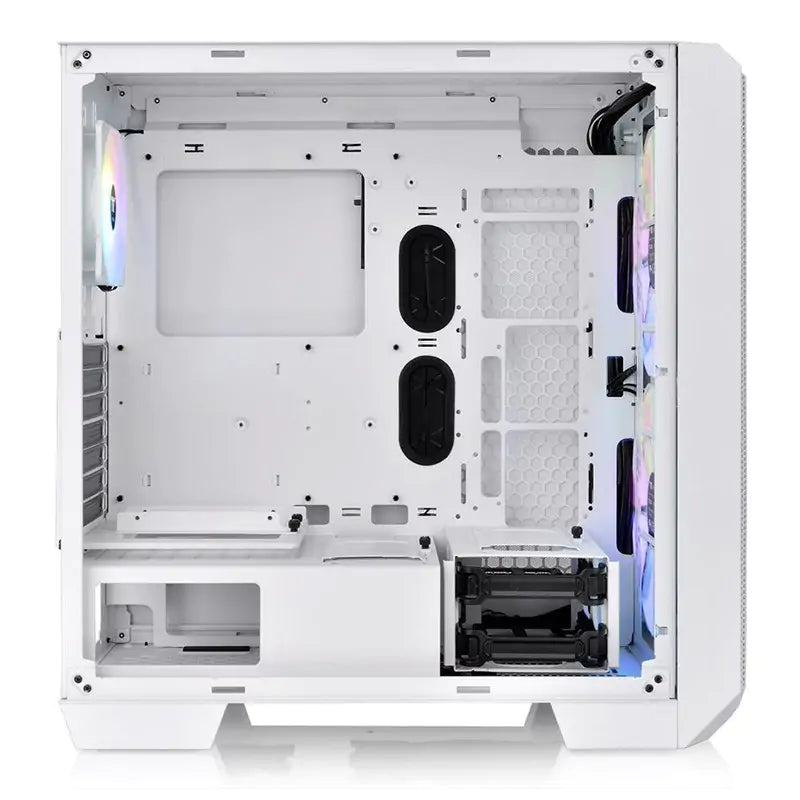

Product Name: Thermaltake View 300 MX TG Mid Tower E-ATX Case - WhiteModel Number: CA-1P6-00M6WN-00Brand: Thermaltake
Manufacturer Warranty: 3 Year
SPECIFICATIONS:Series
View
Model
View 300 MX Snow
Case type
Mid Tower
Dimension (H X W X D)
505 x 230 x 506 mm
(19.9 x 9.1 x 19.9 inch)
Net weight
10.4 kg / 22.9 lbs.
Side panel
4mm Tempered Glass x 1
Colour
Black
Material
SPCC + ABS
Cooling system
Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2
Rear(exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1
Drive bays
2 x 3.5”, 4 x 2.5” or 6 x 2.5”
Expansion slots
7 (Rotatable Patented Design)
Motherboards
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
Fan support
Front: 3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm
1 x 200mm
Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack)
Rear: 1 x 120mm
Radiator support
Front: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack)
Rear: 1 x 120mm
Clearance
CPU cooler height limitation: 175mm
VGA length limitation: 280mm(With reservoir)
400mm(Without reservoir)
PSU length limitation: 200mm
