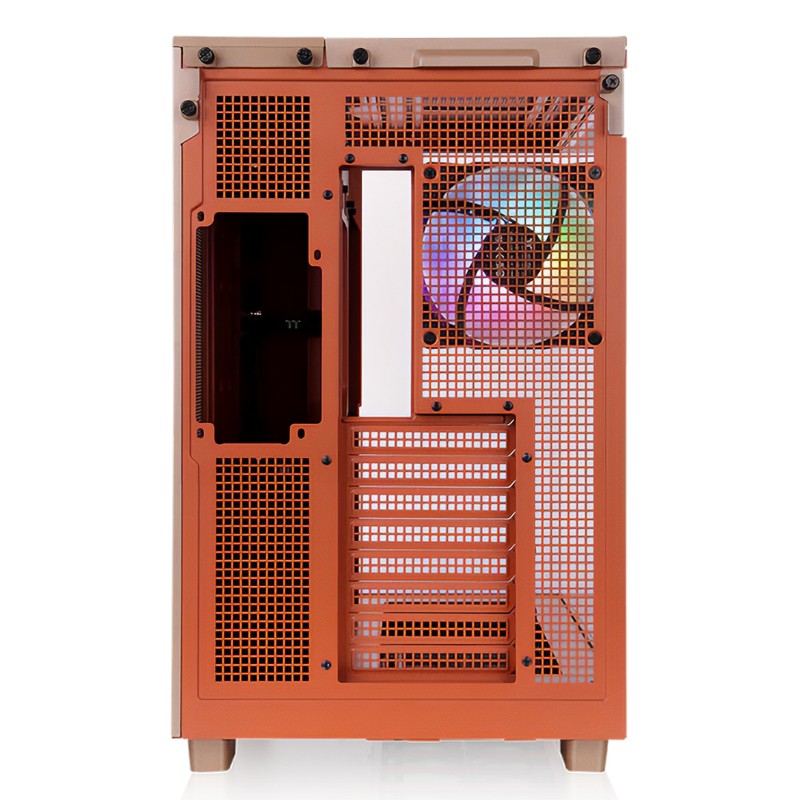

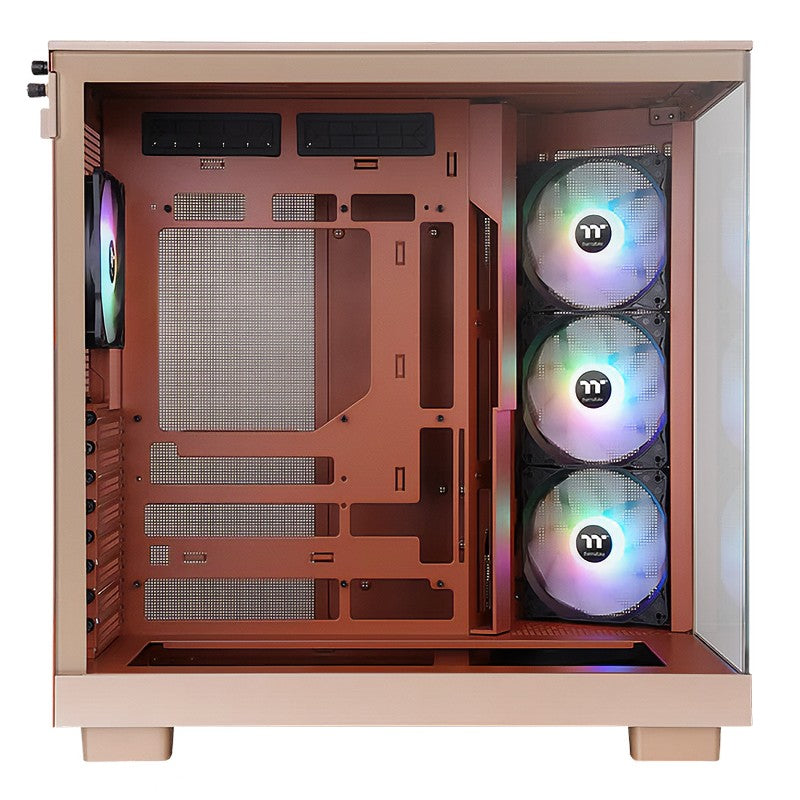

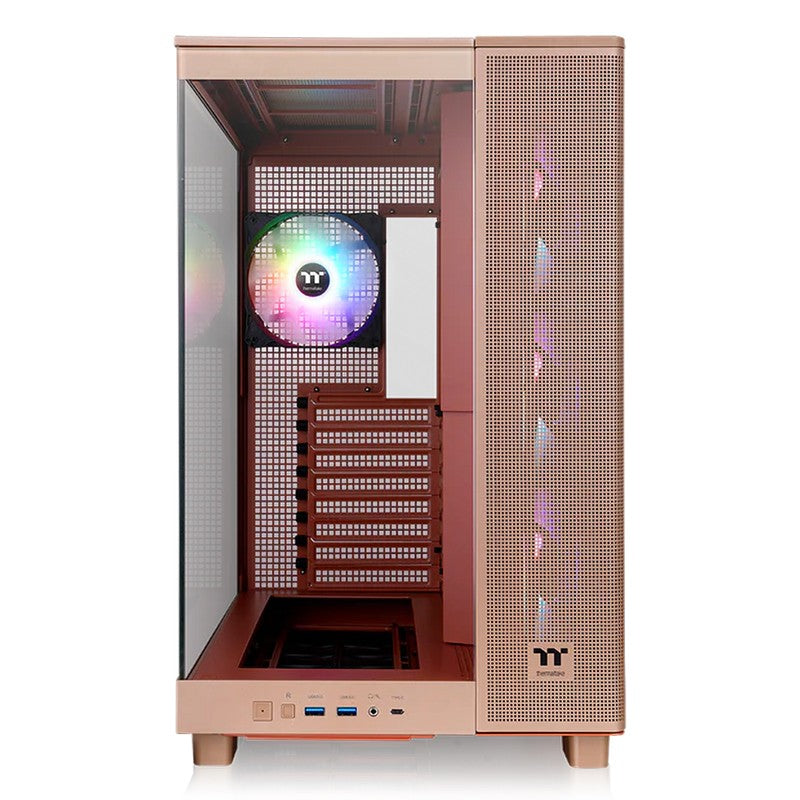

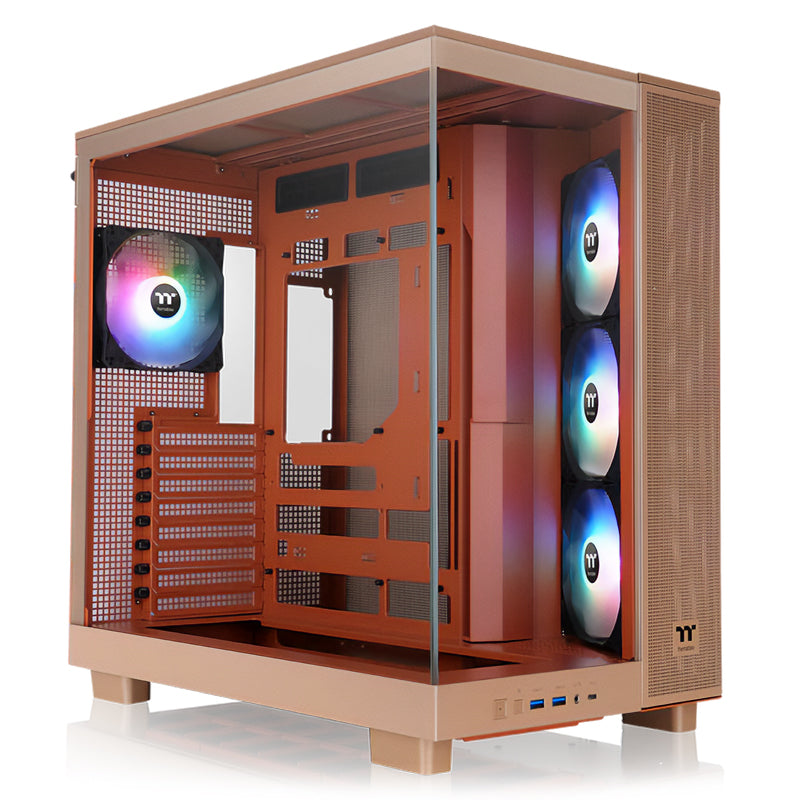

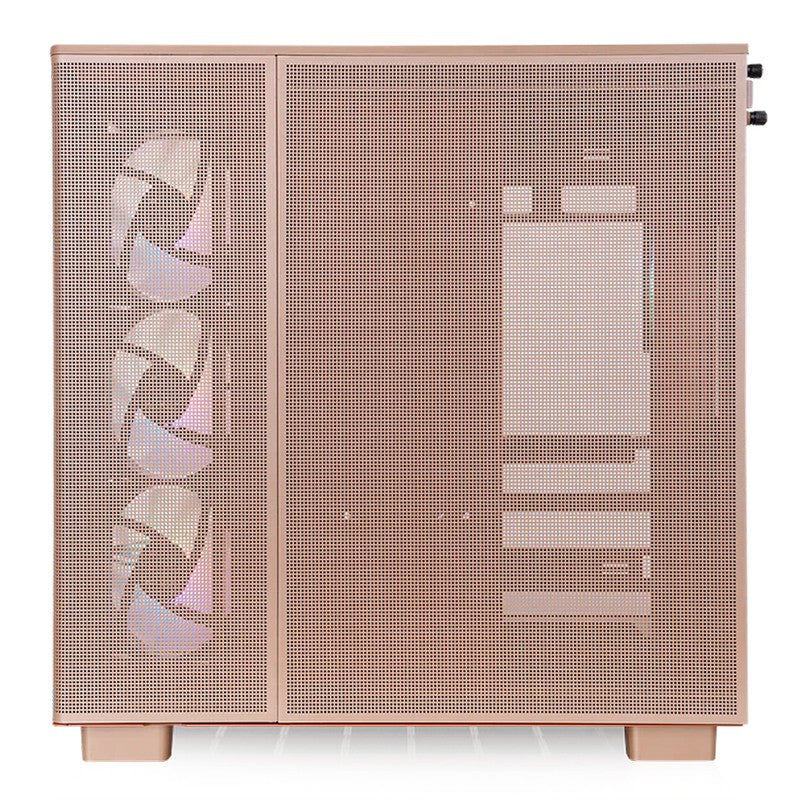

Thermaltake View 380 XL Tempered Glass ARGB Mid Tower ATX Case - Gravel Sand

Model

View 380 XL TG ARGB

Dimension (H X W X D)

471 x 288 x 469 mm

(18.54 x 11.34 x 18.46 inch)

Panel

4mm Tempered Glass x 2

Color

Gravel Sand

Material

SPCC

Cooling system

Right(intake):

120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3

Rear(exhaust):

120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1

Drive bays

1 x 3.5”, 2 x 2.5” or 3 x 2.5”

Expansion slots

8

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan support

Top:

3 x 120mm, 2 x 120mm, 1 x 120mm,

2 x 140mm, 1 x 140mm

Right:

3 x 120mm, 2 x 120mm, 1 x 120mm

Rear:

1 x 120mm

Bottom:

3 x 120mm, 2 x 120mm, 1 x 120mm

Radiator support

Top:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Right:

1 x 360mm, 1 x 240mm, 1 x 120mm

Rear:

1 x 120mm

Clearance

CPU cooler max height: 160mm

VGA max length: 420mm

PSU max length: 180mm
