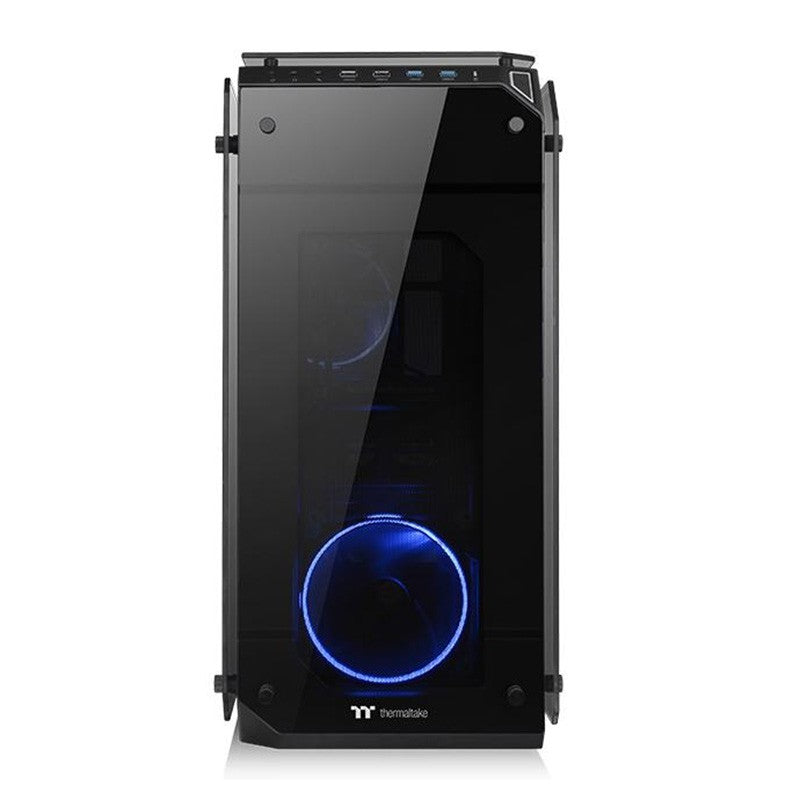

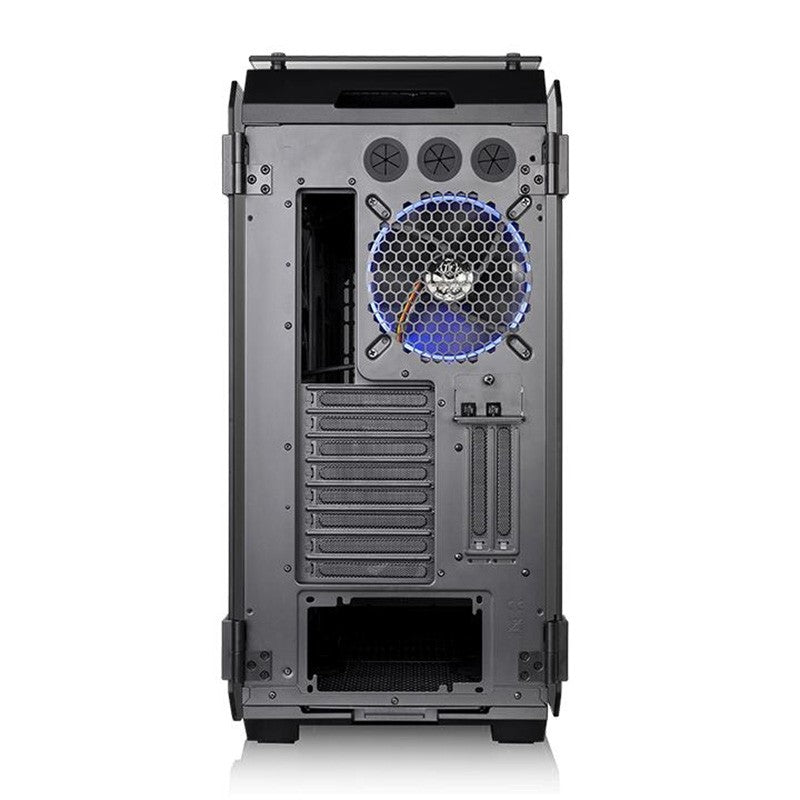

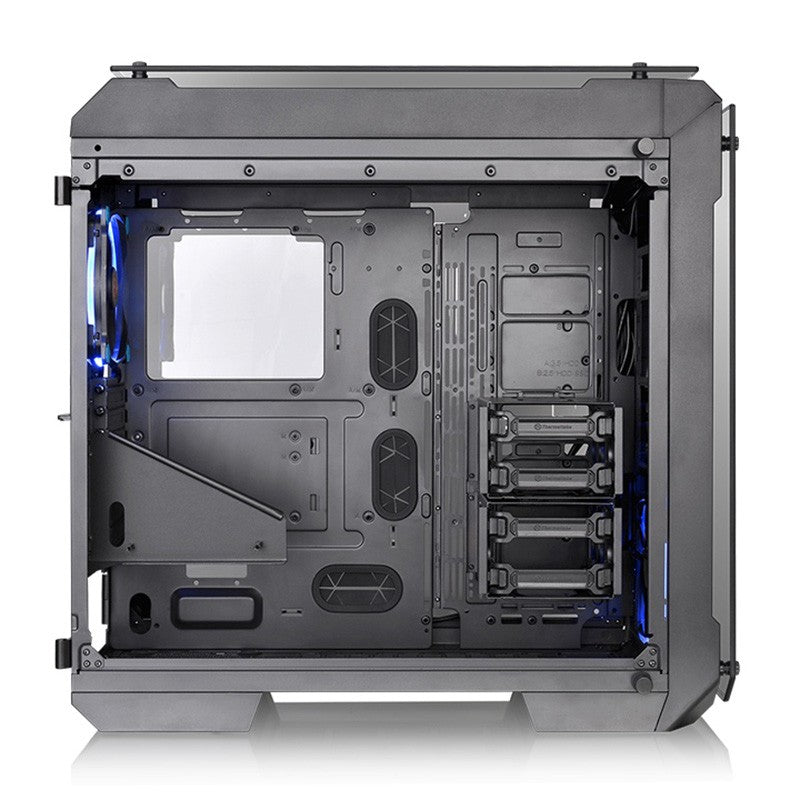

Thermaltake View 71 Tempered Glass Edition Full Tower E-ATX Gaming Case

Case Type

Full Tower

Dimension (H x W x D)

592 x 274 x 577 mm

(23.3 x 10.8 x 22.7 inch)

Net Weight

18.9 kg / 41.66 lb

Panel

5mm Tempered Glass x 4

(Left & Right & Front & Top)

Color

Exterior & Interior : Black

Material

SPCC

Cooling System

Rear (exhaust) :

140 x 140 x 25 mm Riing LED Blue fan

(1400rpm, 28dBA) (1000rpm, 22 dBA with LNC)

Front (intake) :

140 x 140 x 25 mm Riing LED Blue fan

(1400rpm, 28dBA) (1000rpm, 22 dBA with LNC)

Drive Bays

-Accessible

-Hidden

2.5” x 4 or 3.5”x4(HDD Rack)

2.5”x 6 or 3.5” x 3

Expansion Slots

8+2

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX),   12” x 13”(E-ATX)

I/O Port

USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan Support

Front:

3 x 120mm , 2 x 140mm

Top:

3 x 120mm , 3 x 140mm

Rear:

1 x 120mm, 1 x 140mm

Bottom:

2 x 120mm

Radiator Support

Front:

1 x 360mm , 1 x 420mm

Top:

1 x 360mm , 1 x 420mm

Rear:

1 x 120mm, 1 x 140mm

Right:

1 x 360mm, 1 x 420mm

Bottom:

1 x 240mm

Clearance

CPU cooler height limitation:

190mm

VGA length limitation:

310mm(With HDD Rack)

410mm(Without HDD Rack)

PSU length limitation:

220mm (Without Bottom Fan)
