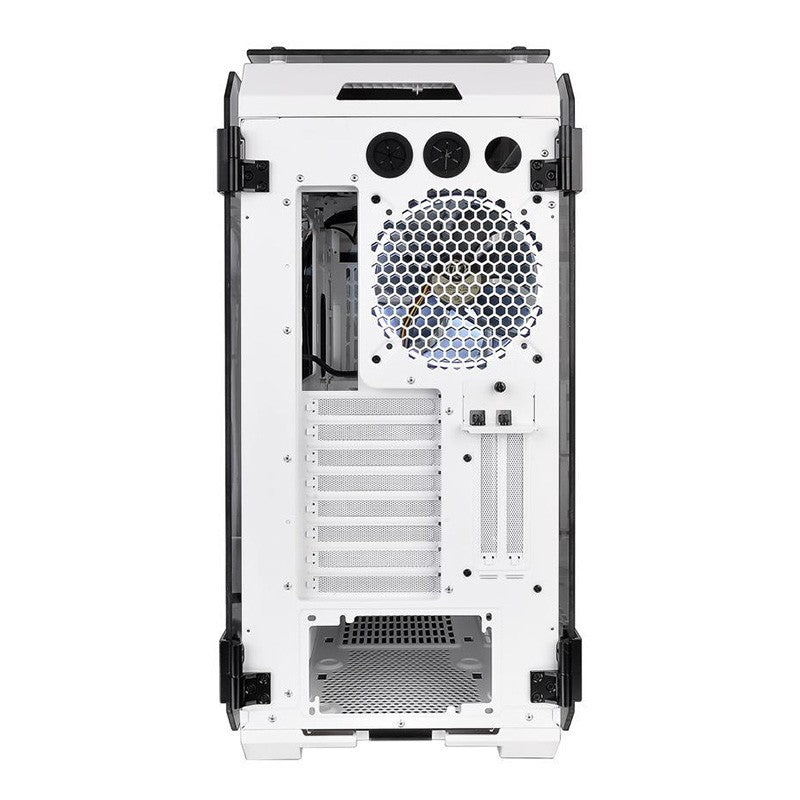

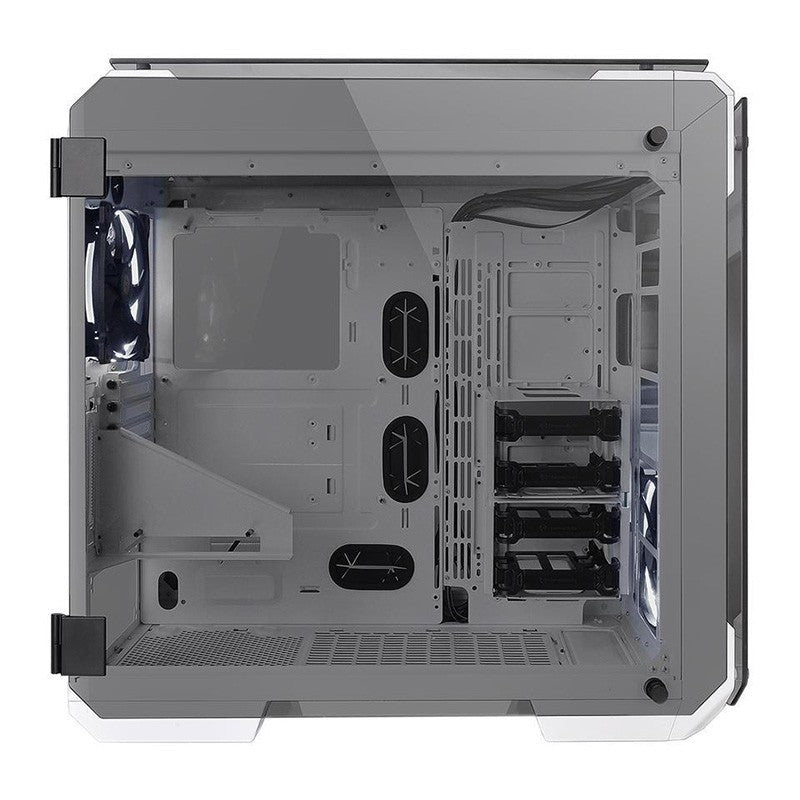

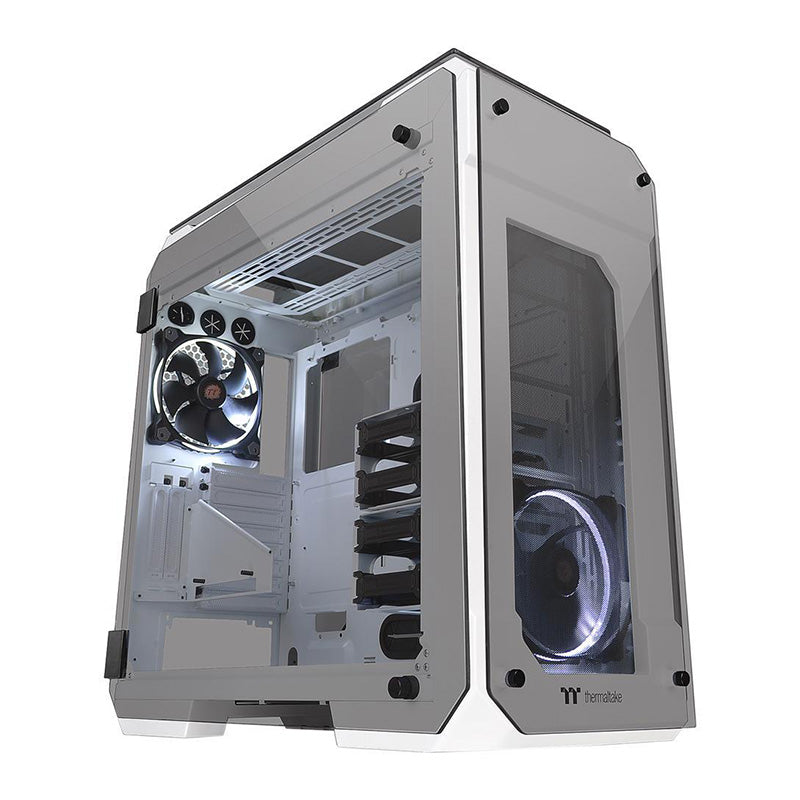

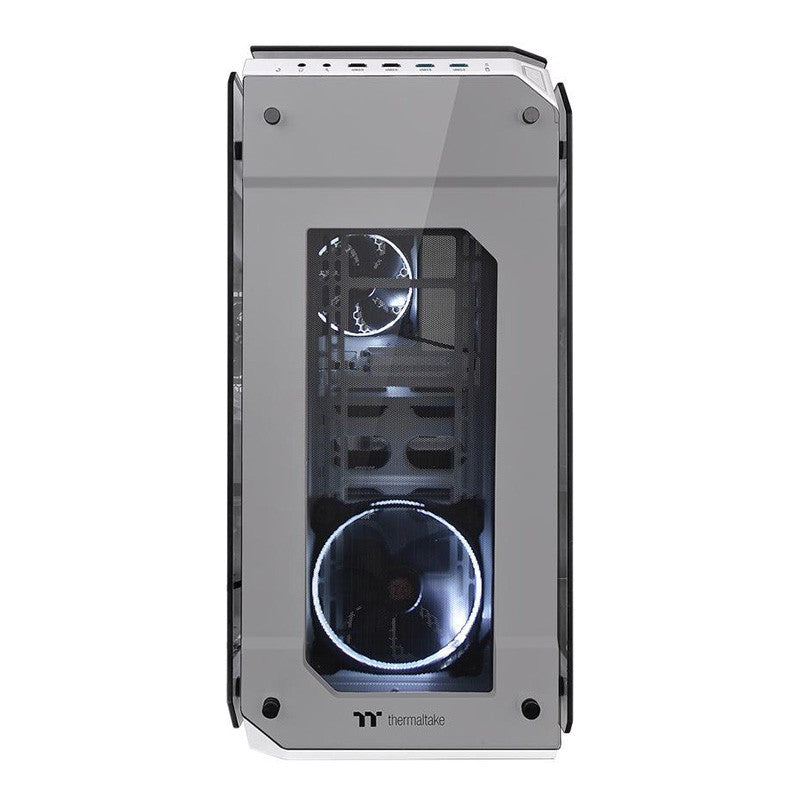

Thermaltake View 71 Tempered Glass Snow Edition Full Tower ATX Chassis

Dimension (H X W X D)

592 x 274 x 577 mm
(23.3 x 10.8 x 22.7 inch)

Net weight

18.9 kg / 41.66 lb

Side panel

5mm Tempered Glass x 4 (Left & Right & Front & Top)

Color

Exterior & Interior : White

Material

SPCC

Cooling system

Rear (exhaust) :
140 x 140 x 25 mm Riing LED White fan
(1400rpm, 28dBA) (1000rpm, 22 dBA with LNC)
Front (intake) :
140 x 140 x 25 mm Riing LED White fan
(1400rpm, 28dBA) (1000rpm, 22 dBA with LNC)

Drive bays
  -Accessible
  -Hidden

2.5” x 4 or 3.5”x4 (HDD Rack)
2.5”x 6 or 3.5” x 3

Expansion slots

8+2

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX)

I/O port

USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan support

Front:
3 x 120mm , 2 x 140mm
Top:
3 x 120mm , 3 x 140mm
Rear:
1 x 120mm, 1 x 140mm
Bottom:
2 x 120mm

Radiator   support

Front:
1 x 360mm , 1 x 420mm
Top:
1 x 360mm , 1 x 420mm
Rear:
1 x 120mm, 1 x 140mm
Right:
1 x 360mm, 1 x 420mm
Bottom:
1 x 240mm

Clearance

CPU cooler height limitation:
190mm
VGA length limitation:
310mm(With HDD Rack)
410mm(Without HDD Rack)
PSU length limitation:
220mm (Without Bottom Fan)
