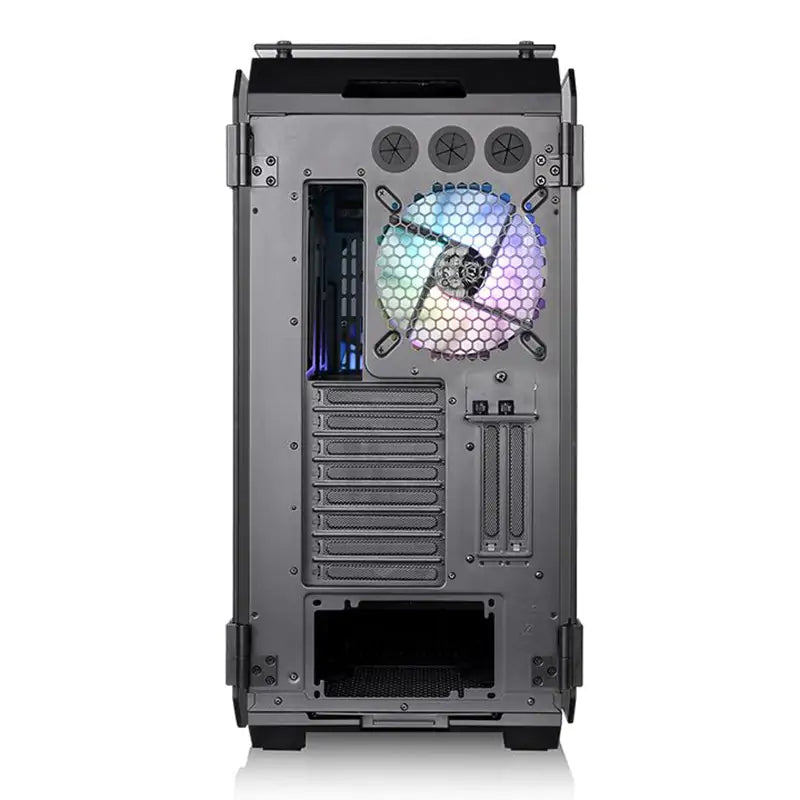

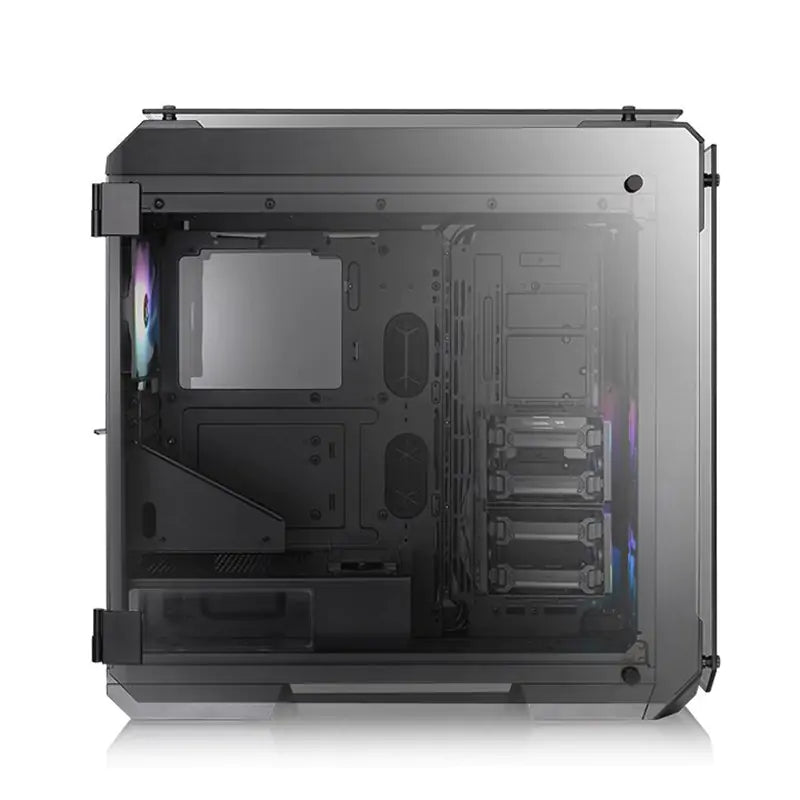

Thermaltake View 71 TG ARGB Full Tower E-ATX Case

SERIES

View

MODEL

View 71 TG ARGB

CASE TYPE

Full Tower

DIMENSION (H X W X D)

592 x 274 x 577 mm

(23.3 x 10.8 x 22.7 inch)

NET WEIGHT

19.3 kg / 42.55 lb

SIDE PANEL

5mm Tempered Glass x 4 (Left & Right & Front & Top)

COLOR

Exterior & Interior : Black

MATERIAL

SPCC

COOLING SYSTEM

Front (intake) :

140 x 140 x 25 mm ARGB fan (1000rpm, 22.8 dBA) x 2

Rear (exhaust) :

140 x 140 x 25 mm ARGB fan (1000rpm, 22.8 dBA)

DRIVE BAYS

-ACCESSIBLE

2.5” x 4 or 3.5”x4 (HDD Rack)

-HIDDEN

2.5”x 6 or 3.5” x 3

EXPANSION SLOTS

8+2

MOTHERBOARDS

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12”   x 13”(E-ATX)

I/O PORT

USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, RGB Button x 1

PSU

Standard PS2 PSU (optional)

FAN SUPPORT

Front:

3 x 120mm , 2 x 140mm

Top:

3 x 120mm , 3 x 140mm

Rear:

1 x 120mm, 1 x 140mm

Bottom:

2 x 120mm

RADIATOR SUPPORT

Front:

1 x 360mm , 1 x 420mm

Top:

1 x 360mm , 1 x 420mm

Rear:

1 x 120mm, 1 x 140mm

Right:

1 x 360mm, 1 x 420mm

Bottom:

1 x 240mm

CLEARANCE

CPU cooler height limitation: 190mm

VGA length limitation: 310mm(With HDD Rack)

　　　　　　　　　   410mm(Without HDD Rack)

PSU length limitation: 220mm (Without Bottom Fan)
