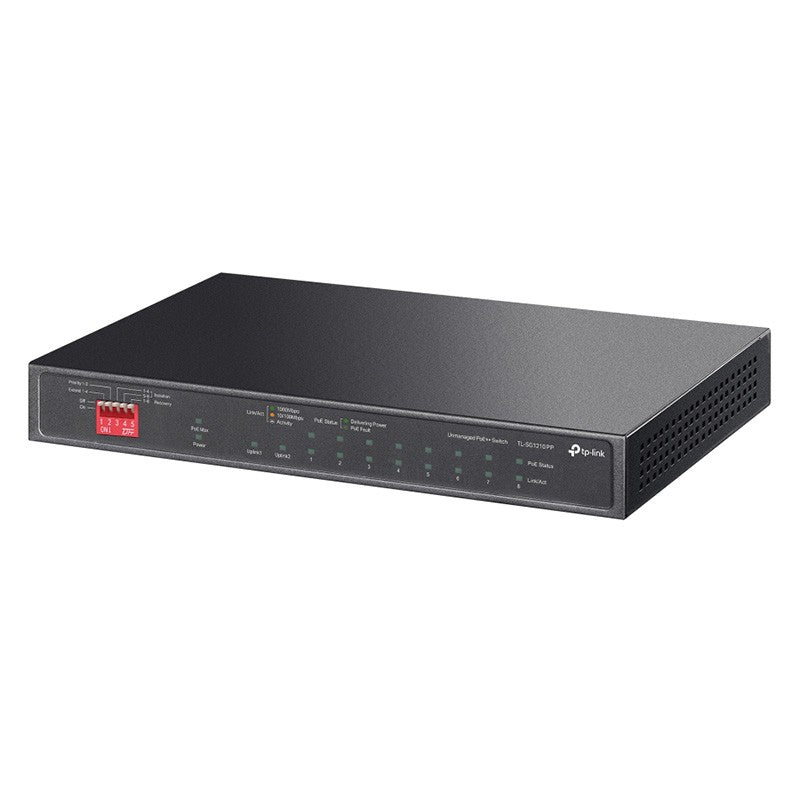

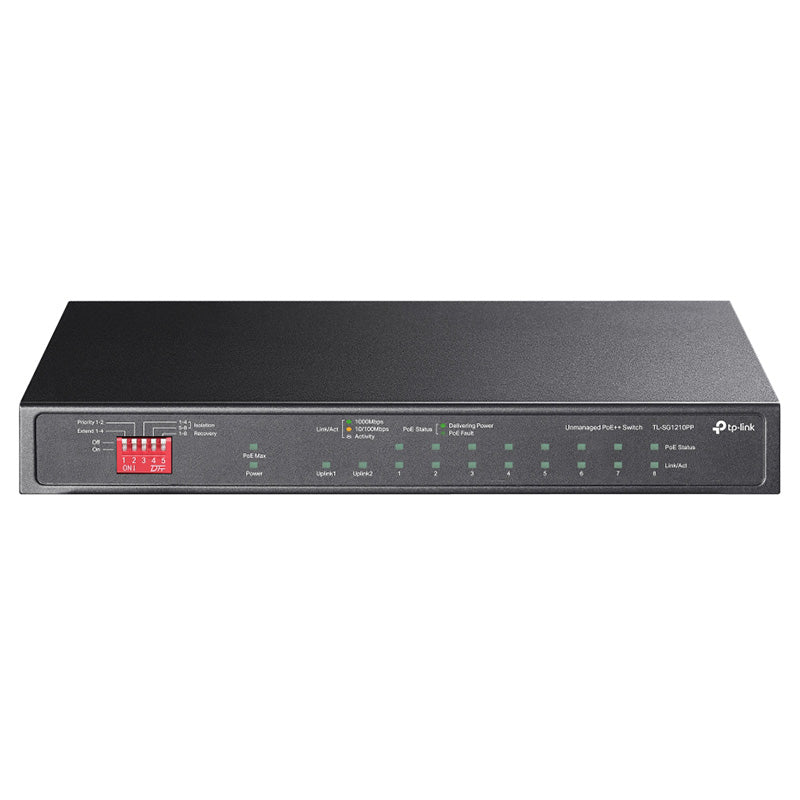

TP-Link 10 Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++

Interface

• 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

External Power Supply

External Power Adapter (Output: 53.5 VDC / 2.43 A)

Packet Forwarding Rate

14.88 Mpps

PoE Ports (RJ45)

• Port 1-2 compliance with 802.3af/at/bt; Ports 3-8 compliance with 802.3af/at

• Power Supply: 123 W

Mac Address Table

4K

Switching Capacity

20 Gbps

Dimensions ( W x D x H )

8.2 x 5.0 x 1.0 in (209 x 126 x 26 mm)

Max Power Consumption

• 8.7 W (220/50 Hz. no PD connected)

• 144.1 W (220/50 Hz. with 123 W PD connected)

Max Heat Dissipation

• 29.67 BTU/h (220/50 Hz. no PD connected)

• 491.38 BTU/h (220/50 Hz. with 123 W PD connected)

SOFTWARE FEATURES

Advanced Features

• Compatible With IEEE 802.3af/at/bt Compliant PDs

• Mac Address Auto-Learning And Auto-Aging

• IEEE 802.3x Flow Control

• 802.1p/DSCP QoS

• IGMP Snooping

• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)

• PoE Auto Recovery (Ports 1-8)

• Isolation Mode (Ports 1-4/5-8)

• Priority Mode (Ports 1-2)

Transfer Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Contents

• TL-SG1210PP

• Power Adapter

• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Notes

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client   limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
