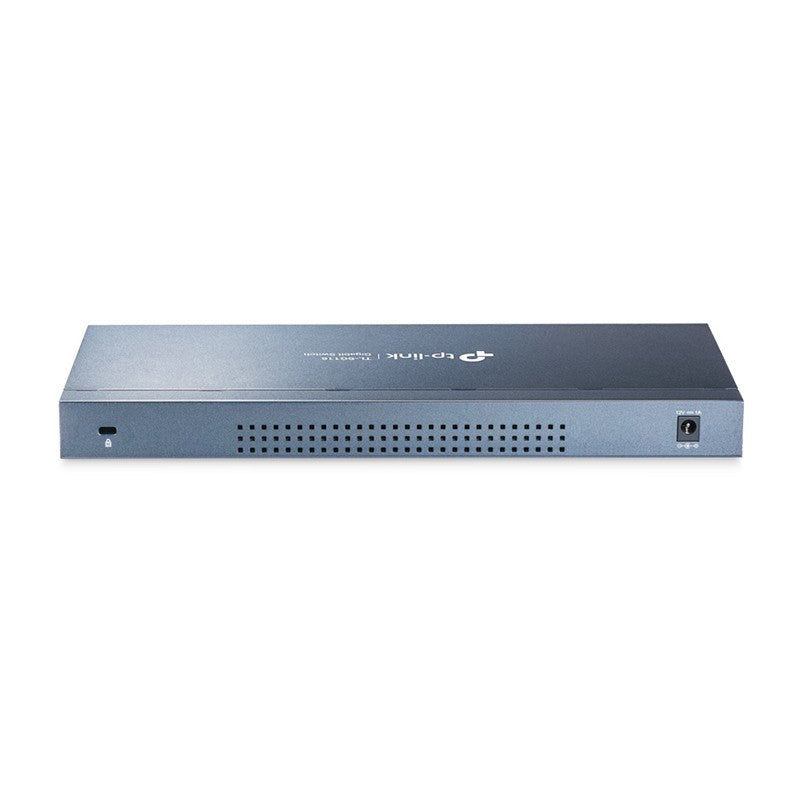

TP-Link 16-Port Gigabit Desktop Switch

Standards and Protocols

IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p

Interface

16 × 10/100/1000Mbps Ports

Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter 100VAC ~ 240VAC

(Output: 12VDC / 1.0A)

LED Indicator

System Power

Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H )

11.3 × 4.4 × 1.0 in.

(286 × 112 × 25 mm)

Max Power Consumption

10W

Max Heat Dissipation

34.1 BTU/h

PERFORMANCE

Packet Forwarding   Rate

23.8Mpps

MAC Address Table

8K

Packet Buffer Memory

4.1Mb

JumboFrame

10KB

SOFTWARE FEATURES

Advanced Features

Green Technology

802.3x Flow Control

802.1p/DSCP QoS

IGMP Snooping

Transfer Method

Store and Forward

OTHERS

Certification

FCC ,RoHS

Package Contents

16-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Rubber Feet

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90%, non-condensing

Storage Humidity: 5%~90% non-condensing
