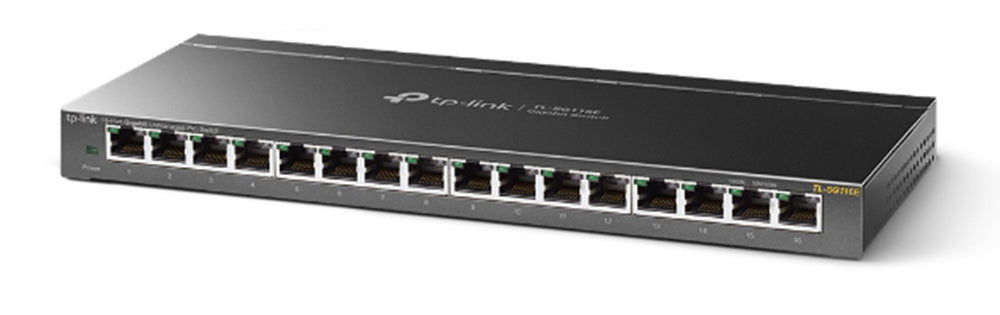

TP-Link 16-Port Gigabit Unmanaged Pro Switch

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

16 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Power Supply

External Power Adapter(Output: 12VDC/1.0A)

Dimensions ( W x D x H )

11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm)

Max Power Consumption

9.19W(220V/50Hz)

Max Heat Dissipation

31.36BTU/h

PERFORMANCE

Switching Capacity

32Gbps

Packet Forwarding Rate

23.81Mpps

MAC Address Table

8K

Packet Buffer Memory

4.1Mb

Jumbo Frame

9KB

SOFTWARE FEATURES

Quality of Service

Support Port-based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features

IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Transmission Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SG116E

Power Cord

Installation Guide

Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃   (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
