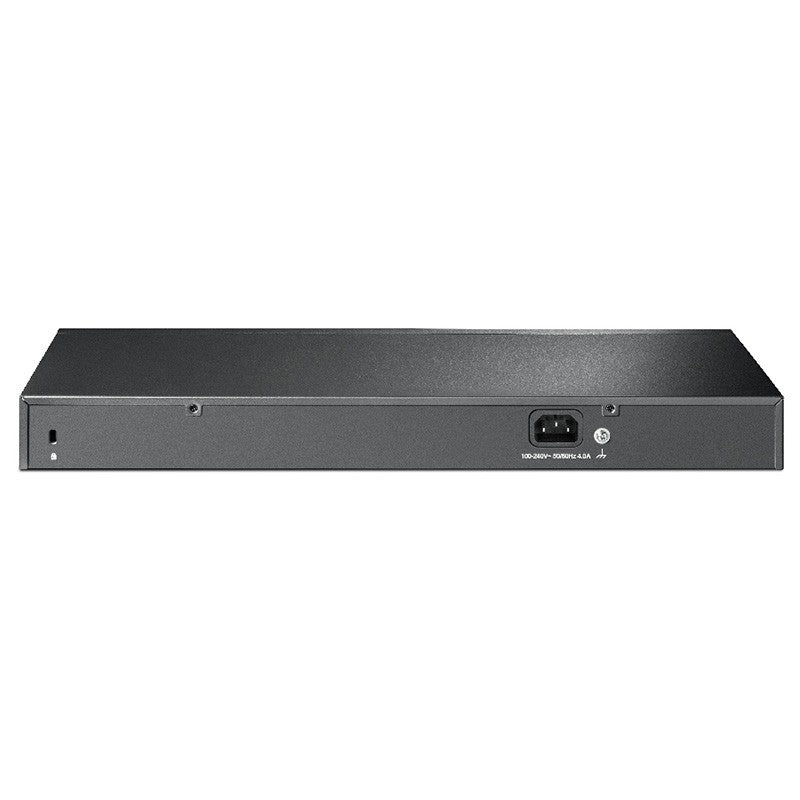

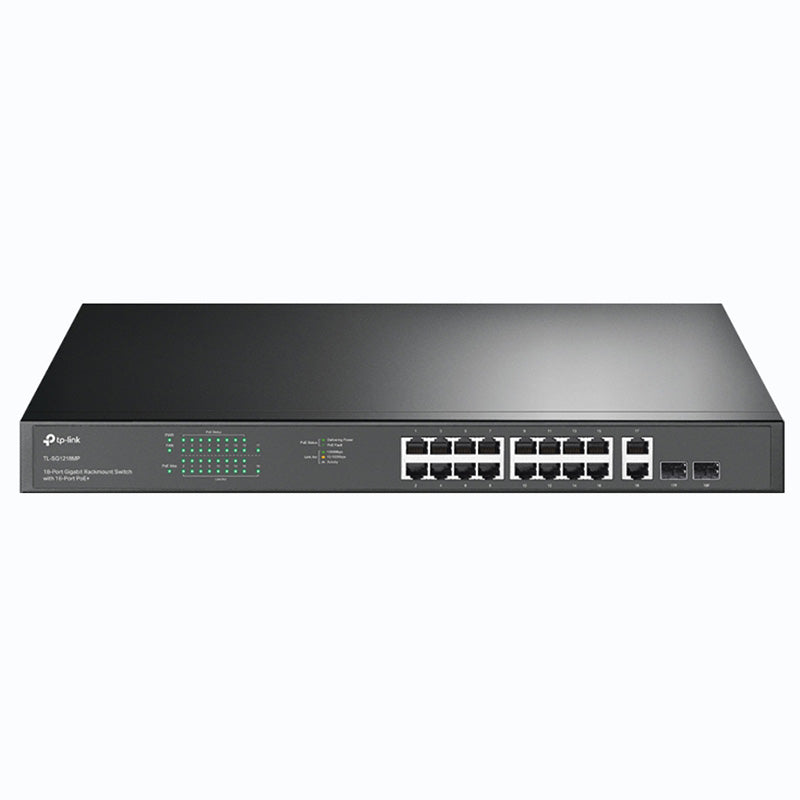

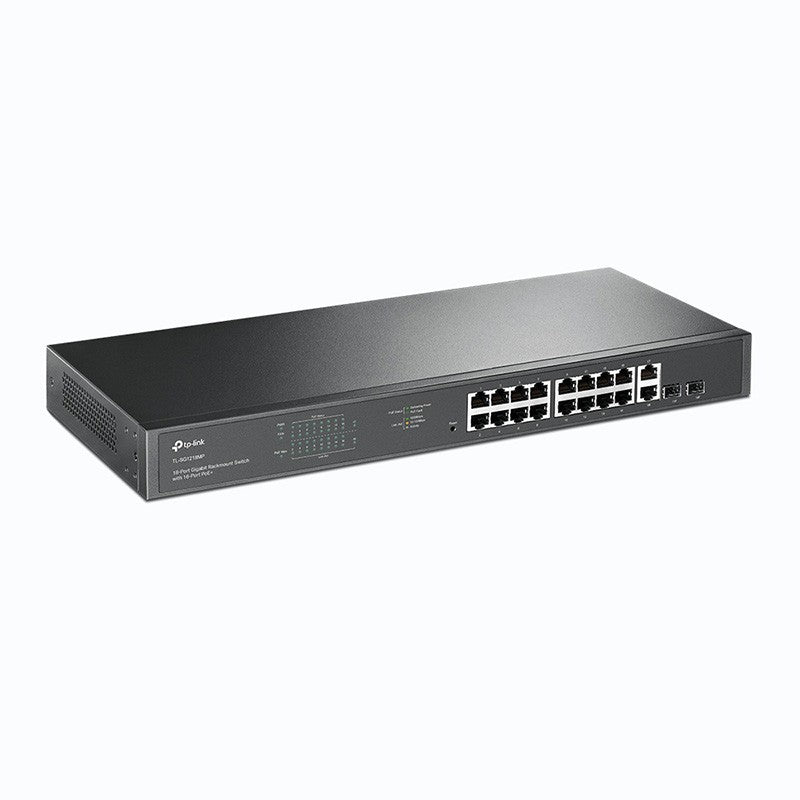

TP-Link 18 Port Gigabit Rackmount Unmanaged Switch with 16 PoE+

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface

16× PoE+ gigabit RJ45 ports

2× gigabit non-PoE RJ45 ports

2× combo gigabit SFP slots

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m

1000BASE-X MMF, SMF

Fan Quantity

2

Physical Security Lock

Yes

Power Supply

100–240 VAC, 50/60 Hz

PoE+ Ports(RJ45)

Standard: 802.3at/802.3af compliant

PoE Ports: Ports 1–16

PoE Power Budget: 250 W

Dimensions ( W x D x H )

17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)

Mounting

Rack Mountable

Max Power Consumption

21.4 W (220/50 Hz. no PD connected)

286.64 W (220/50 Hz. with 250 W PD connected)

Max Heat Dissipation

72.97 BTU/h (no PD connected)

977.44 BTU/h (with 250 W PD connected)

PERFORMANCE

Switching Capacity

36 Gbps

Packet Forwarding Rate

26.78 Mbps

MAC Address Table

8K

Packet Buffer Memory

4.1 Mbit

Advanced Functions

Compatible With IEEE 802.3af/at Compliant PDs

802.1p/DHCP QoS

Mac Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Jumbo Frame

10 KB

OTHERS

Certification

CE, FCC, RoHS

Package Contents

TL-SG1218MP

Installation Guide

Power Cord

Rackmount Kit

Rubber Feet

Environment

Operating Temperature: 0–50 °C (32–122 °F)

Storage Temperature: -40–70 °C (-40–158 °F)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing

Notes

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
