Description

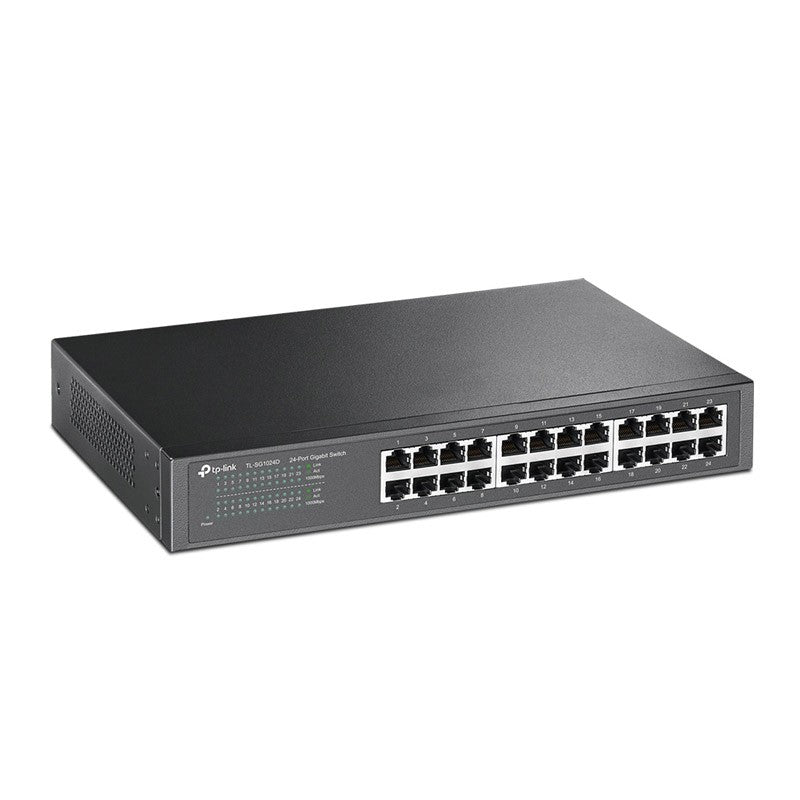

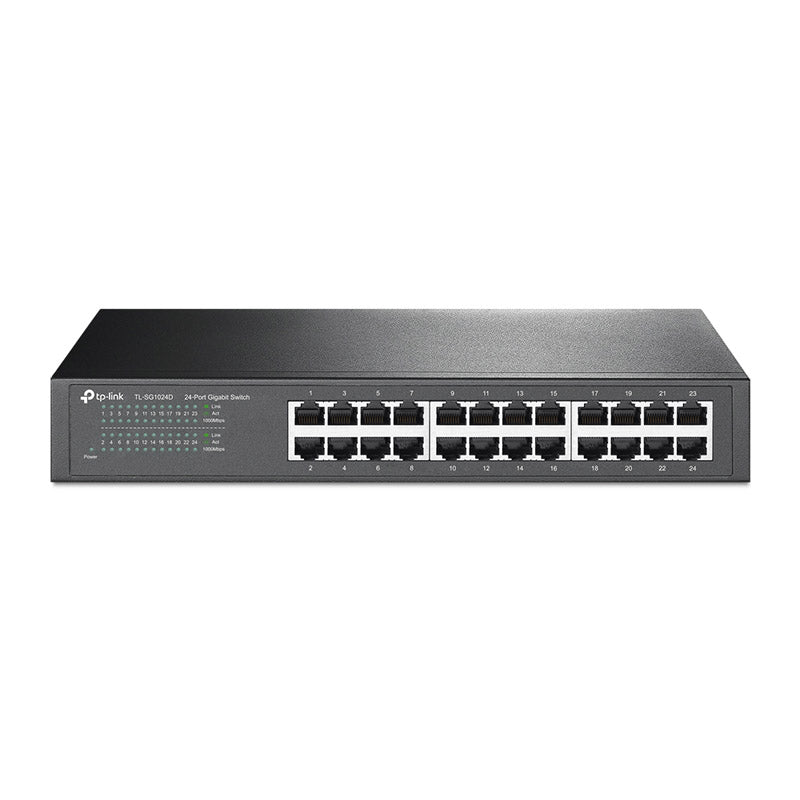

TP-Link TL-SG1024D 24 Port Gigabit 10/100/1000 Switch Desktop/Rackmount
The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
24 10/100/1000Mbps ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
-
Plug & play design
SPECIFICATIONS:
HARDWARE FEATURES | |
Standards and protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
Interface |
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
Network media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
Fan quantity |
Fanless |
Power supply |
100-240VAC, 50/60Hz |
Dimensions ( W X D X H ) |
11.6*7.1*1.7 in. (294*180*44 mm) |
Mounting |
Rack Mountable |
Max power consumption |
13.08W(220V/50Hz) |
Max heat dissipation |
44.63BTU/h |
PERFORMANCE | |
Switching capacity |
48Gbps |
Packet forwarding rate |
35.7Mpps |
Mac address table |
8K |
Jumbo frame |
10KB |
Green technology |
Yes |
Transfer method |
Store-and-Forward |
OTHERS | |
Certification |
FCC, CE, RoHS |
Package contents |
24-Port Gigabit Desktop/Rackmount Switch |
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉); |
