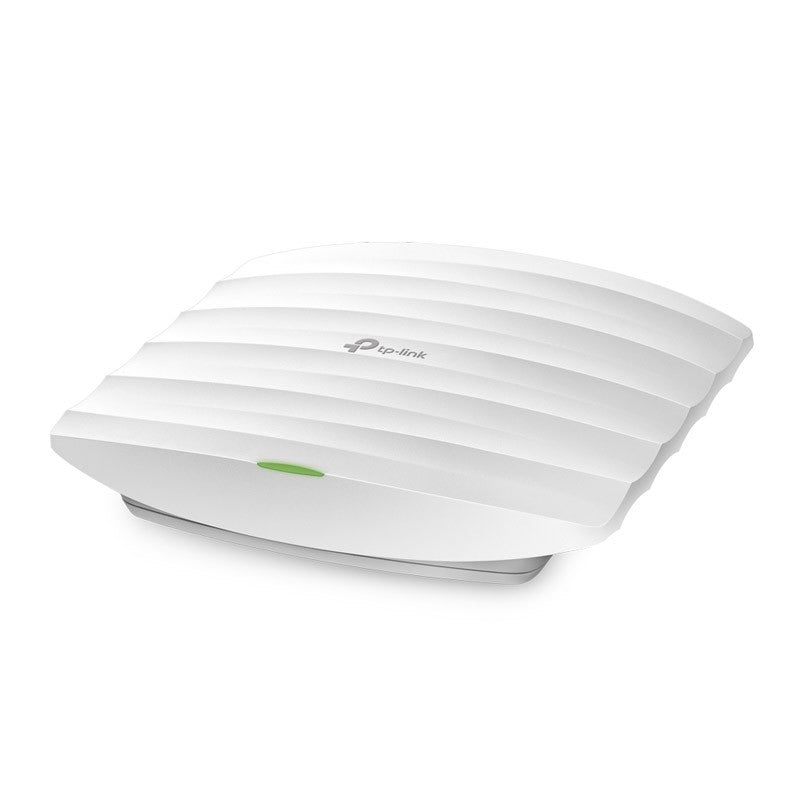

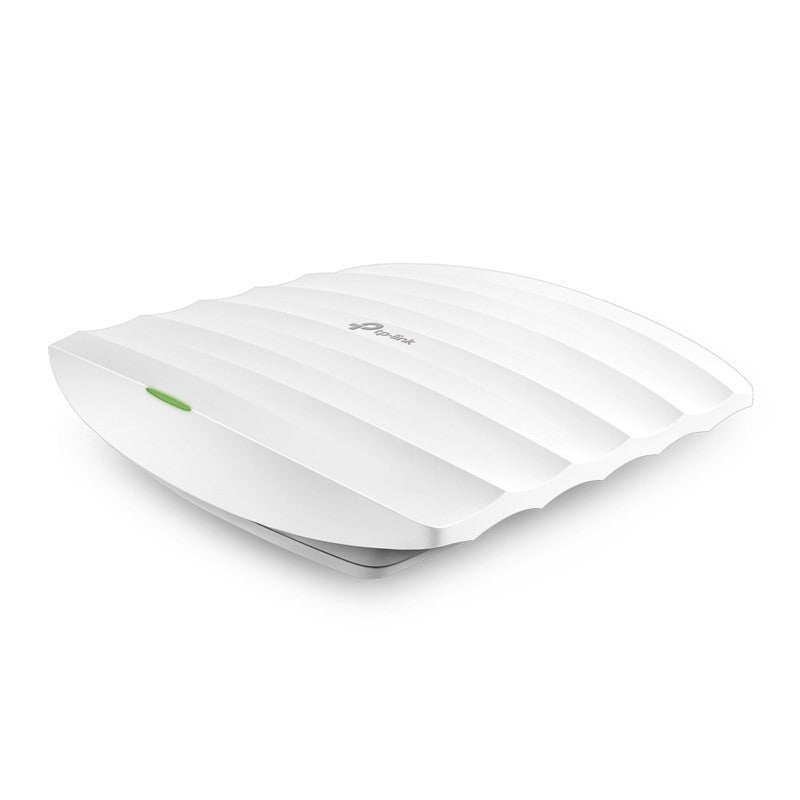

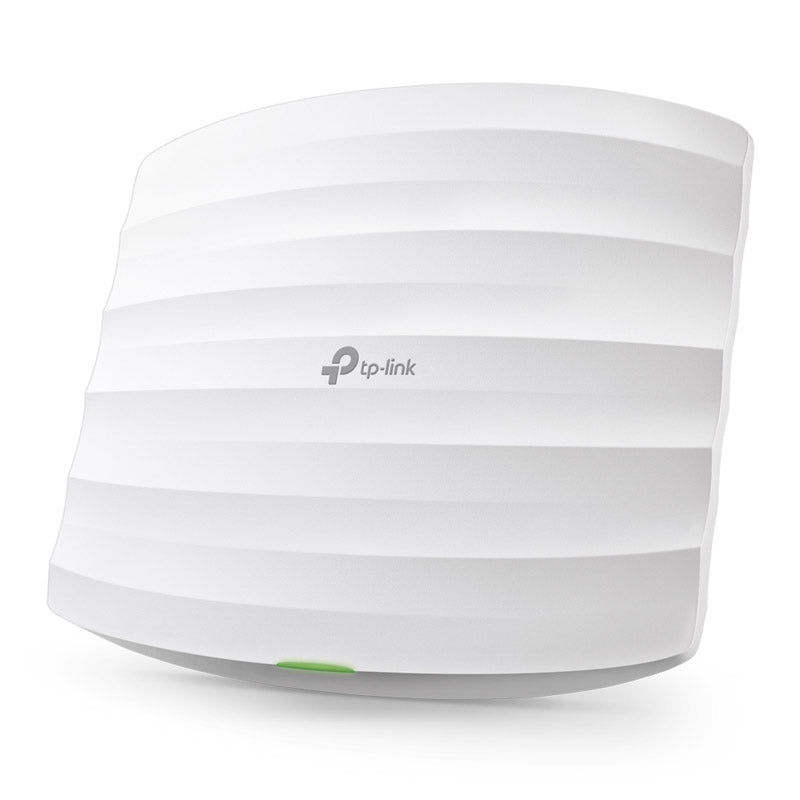

TP-Link 300Mbps POE Wireless N Ceiling Mount Access Point

Interface

Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af   PoE）

Button

Reset

Power supply

PoE or external 9VDC/0.6A power supply

Power consumption

2.8W

Dimensions

7.5×6.8×1.2 in. (189.4×172.3×29.5mm)

Antenna type

Internal 2* 4dBi Omni

Mounting

Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.4-2.4835GHz

Signal rate

11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception sensitivity

300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER

Wireless functions

Multiple SSIDs（Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

Transmission power

CE:
≤19dBm
FCC:
≤26dBm

MANAGEMENT

Omada cloud access

Yes

Omada app

Yes

Omada cloud controller

Yes

Omada controller software

Yes

Email alerts

Yes

Led on/off control

Yes

Management mac access control

Yes

SNMP

v1,v2c

System logging local/remote syslog

Local/Remote Syslog

Telnet

Yes

SSH

Yes

Web-based management

HTTP/HTTPS

Management VLAN

Yes

OTHERS

Certification

CE, FCC, RoHS

Package contents

300Mbps Wireless N Ceiling Mount Access Point EAP115
Power Adapter
Mounting Kits,
Installation Guide

System requirements

Microsoft Windows 10/8/7/Vista/XP

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
