Description
SPECIFICATIONS:
WIRELESS |
|
Standards |
Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds |
N300 2.4 GHz: 300 Mbps (802.11n) |
WiFi Range |
2 Bedroom Houses 2× Fixed Antennas |
WiFi Capacity |
Legacy |
Working Modes |
Router Mode Access Point Mode Range Extender Mode Client Mode Hotspot Mode (WISP Mode) |
HARDWARE |
|
Processor |
Single-Core CPU |
Ethernet Ports |
1× 10/100 Mbps WAN/LAN Port |
Buttons |
Reset Button |
Power |
5 V ⎓ 1 A |
SECURITY |
|
WiFi Encryption |
WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x)* *Only Available in the Router and AP Modes. |
Network Security |
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
Guest Network |
1× 2.4 GHz Guest Network |
SOFTWARE |
|
Protocols |
IPv4 IPv6 |
Parental Controls |
URL Filtering Time Controls |
WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service |
QoS by Device |
NAT Forwarding |
Virtual Server Port Forwarding Port Triggering DMZ UPnP |
IPTV |
IGMP Proxy |
DHCP |
Address Reservation DHCP Client List Server |
DDNS |
NO-IP Comex DynDNS |
|
Management |
Tether App Webpage |
OTHER |
|
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications |
FCC, CE, RoHS |
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA |
|
WiFi Transmission Power |
CE: <20dBm(2.4GHz) FCC: <30dBm |
WiFi Reception Sensitivity |
270M: -70dBm@10% PER 130M: -75dBm@10% PER 108M: -88dBm@10% PER 54M: -78dBm@10% PER 11M: -100dBm@8% PER 6M: -92dBm@10% PER 1M: -100dBm@8% PER |
PHYSICAL |
|
Dimensions (W×D×H) |
2.2 × 2.2 × 0.7 in (57 × 57 ×18 mm) |
Package Contents |

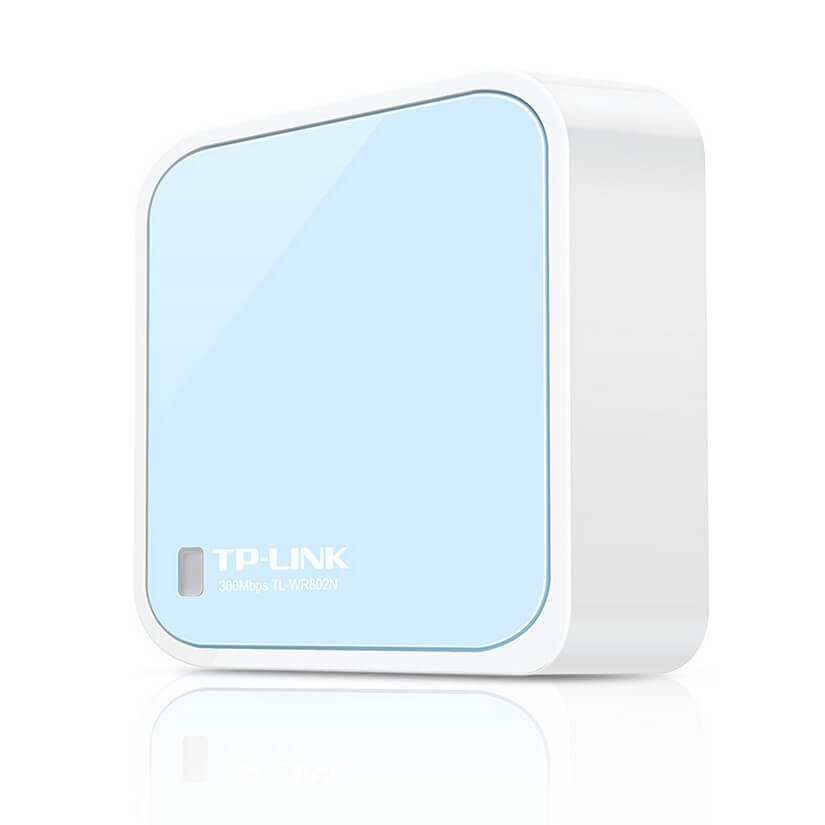

Wi-Fi Router TL-WR802N Power Adapter USB Cable RJ45 Ethernet Cable Quick Installation Guide Resource CD |
