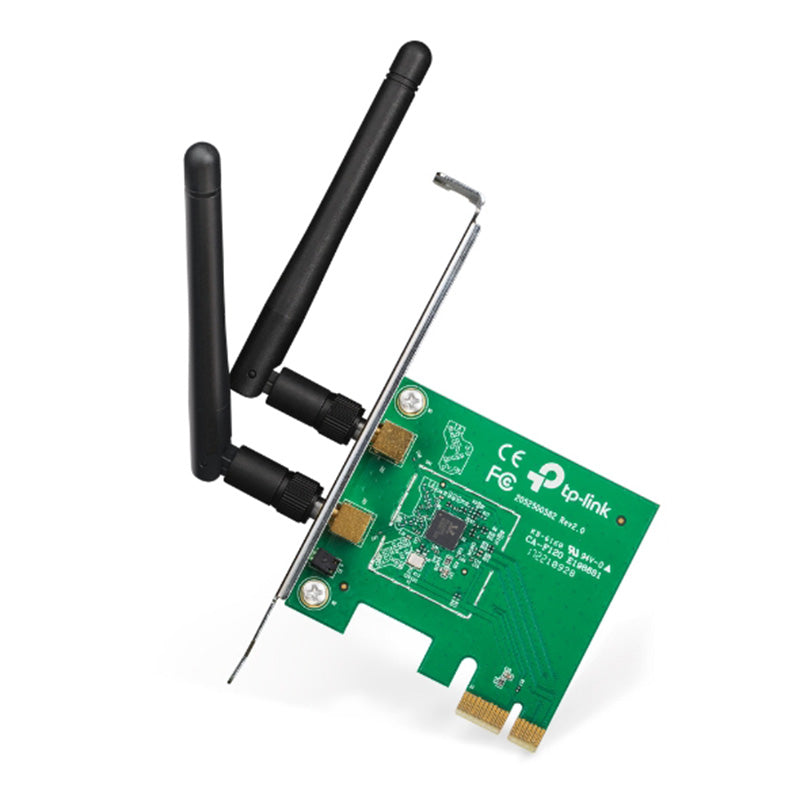

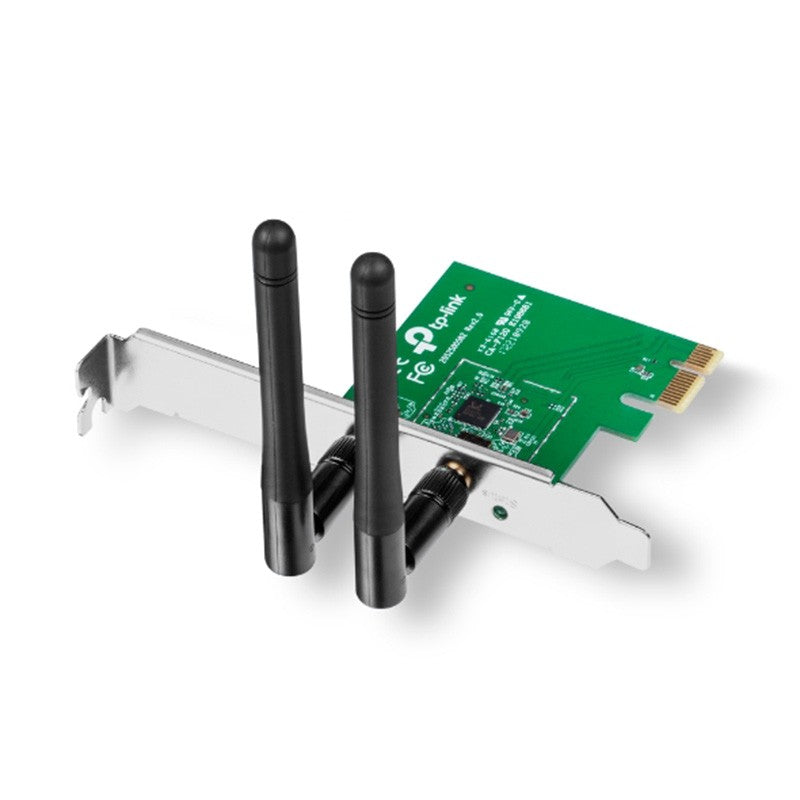

TP-LINK 300Mbps Wireless N PCIe Adapter

Interface

PCI Express(x1)

Dimensions (W X D X H)

4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)

Antenna Type

Detachable Omni Directional (RP-SMA)

Antenna Gain

2dBi

WIRELESS FEATURES

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.400-2.4835GHz

Signal Rate

11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity

270M: -68dBm@10% PER
130M: -68dBm@10% PER

108M: -73dBm@10% PER

54M: -73dBm@10% PER

11M: -89dBm@8% PER

6M: -87dBm@10% PER

1M: -90dBm@8% PER

Transmit Power

20dbm(EIRP)

Wireless Modes

Ad-Hoc / Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA-PSK/WPA2-PSK

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

OTHERS

Certification

CE, FCC, RoHS

Package Contents

Wireless Adapter

2x Detachable Omni directional antenna

Resource CD

Quick Installation Guide

System Requirements

Windows 8(32/64bits), Windows 7(32/64bits), Windows Vista(32/64bits)

Environment

Operating Temperature: 0ƒ~40ƒ (32‰~104‰)

Storage Temperature: -40ƒ~70ƒ (-40‰~158‰)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
